Model

16-012

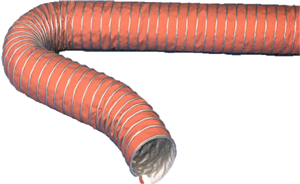

Image for HT 2010.png

MD-MasterClip 2010 - Ø 3'' to 36''

This hose is ideal for facilities where high-temperature exhaust fumes are being extracted.

Function:

The Vehicle Exhaust Hose is of industrial quality, and is designed for the extraction of vehicle exhaust fumes.

Features:
  • Long Life -> Abrasion resistant both externally and internally
  • High temperature resistance -> -75° F to +2010° F
  • Low pressure drop -> with very smooth internal bore
  • Light weight -> easy to use and place into position
  • Fatigue resistant -> ideal for constant flexing applications such as hose reels and retraction systems

Construction:

Asbestos free high temperature fabric, specially coated with heat stabilizers external helix: heat-resistant chromium

Applications:
  • Extremely high temperatures
  • Exhaust-fume extraction from large engines
  • Exhaustion-fume extraction from high performance test beds in the automotive industry
Properties:
  • Flame resistant
  • Silicone free
  • Flexible
  • Compressibility 1:2
  • Small bend radius

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MD-230-900-119 38"H x 38"W x 13"D 2.0000 lbs
MD-230-800-119 34"H x 34"W x 13"D 2.0000 lbs
MD-230-700-119 30"H x 30"W x 13"D 2.0000 lbs
MD-230-600-119 26"H x 26"W x 13"D 2.0000 lbs
MD-230-550-119 24"H x 24"W x 13"D 2.0000 lbs
MD-230-500-119 22"H x 22"W x 13"D 2.0000 lbs
MD-230-450-119 20"H x 20"W x 13"D 2.0000 lbs
MD-230-400-119 18"H x 18"W x 13"D 2.0000 lbs
MD-230-375-119 17"H x 17"W x 13"D 2.0000 lbs
MD-230-350-119 16"H x 16"W x 13"D 2.0000 lbs
MD-230-325-119 15"H x 15"W x 13"D 2.0000 lbs
MD-230-315-119 "H x "W x 13"D 0.0000 lbs
MD-230-300-119 14"H x 14"W x 13"D 2.0000 lbs
MD-230-275-119 13"H x 13"W x 13"D 2.0000 lbs
MD-230-250-119 12"H x 12"W x 13"D 2.0000 lbs
MD-230-225-119 11"H x 11"W x 13"D 2.0000 lbs
MD-230-215-119 "H x "W x 13"D 0.0000 lbs
MD-230-200-119 10"H x 10"W x 13"D 2.0000 lbs
MD-230-180-119 "H x "W x 13"D 0.0000 lbs
MD-230-175-119 9"H x 9"W x 13"D 2.0000 lbs
MD-230-170-119 "H x "W x 13"D 0.0000 lbs
MD-230-160-119 8.4"H x 8.4"W x 13"D 2.0000 lbs
MD-230-150-119 8"H x 8"W x 13"D 2.0000 lbs
MD-230-140-119 7.5"H x 7.5"W x 13"D 2.0000 lbs
MD-230-130-119 "H x "W x 13"D 0.0000 lbs
MD-230-125-119 7"H x 7"W x 13"D 2.0000 lbs
MD-230-120-119 "H x "W x 13"D 0.0000 lbs
MD-230-110-119 "H x "W x 13"D 0.0000 lbs
MD-230-100-119 6"H x 6"W x 13"D 2.0000 lbs
MD-230-090-119 5.5"H x 5.5"W x 13"D 2.0000 lbs
MD-230-080-119 "H x "W x 13"D 0.0000 lbs
MD-230-075-119 5"H x 5"W x 13"D 2.0000 lbs

Key Buying Criteria:

  • Good tear resistance
  • Improved puncture resistance
  • Lightweight/flexible
  • Wear-resistant

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Odours
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MD-230-075-119 3" (75mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-080-119 3.2" (80mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-090-119 3.5" (90mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance & massive engines - buses, trucks, jets
  • Price per ft. (25' Length Minimum)
MD-230-100-119 4" (100mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-110-119 4.4" (110mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-120-119 4.8" (120mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-125-119 5" (125mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-130-119 5.2" (130mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-140-119 5.5" (140mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-150-119 6" (150mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-160-119 6.4" (162mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-170-119 6.8" (170mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-175-119 7" (175mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-180-119 7.2" (180mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-200-119 ***DISC SEE UHT-8-1500*** 8" (200mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temp fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, and jets
  • Price per ft. (25' Length Minimum)
MD-230-215-119 8.60" (220mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-225-119 9" (230mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-250-119 10" (250mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-275-119 11" (280mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-300-119 12" (250mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-315-119 12.6" (320mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-325-119 13" (330mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-350-119 14" (350mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-375-119 15" (380mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-400-119 16" (400mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-450-119 18" (460mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-500-119 20" (510)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-550-119 22" (560)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-600-119 24" (610mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-700-119 28" (710mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-800-119 32" (810mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
MD-230-900-119 36" (915mm)Ø Master-Clip HT 2010 Hose.
  • 3-layer special coated high temperature fabric reinforced with inside layer of stainless steel mesh
  • Best 2000° F flexible hose on the market
  • Also, excellent for high performance and massive engines - buses, trucks, & jets
  • Price per ft. (25' Length Minimum)
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
