Model

16-010

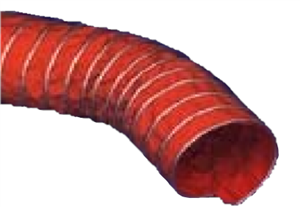

Image for HT 1200.png

MD-MasterClip 1200 - Ø 2'' to 36''

This hose is designed for use in industrial facilities where high temperature fumes and toxins are being extracted.

Function:

The Vehicle Exhaust Hose is of industrial quality, and is designed for the extraction of vehicle exhaust fumes.

Features:
  • Long Life -> Abrasion resistant both externally and internally
  • High Temperature Resistance -> – 75°F to 1200°F
  • Low Pressure Drop -> with very smooth internal bore
  • Light Weight -> easy to use and place into position
  • Fatigue Resistant -> ideal for constant flexing applications such as hose reels and retraction systems

Construction:

Inner and outer hose wall, asbestos free, high temperature fabric, specially coated with heat stabilizers and reinforced by woven in stainless steel wire external helix: galvanized steel

Applications:
  • Exhaust-fume extraction from high performance test beds in the automotive industry
Properties:
  • Very high temperature resistance
  • Flame resistant
  • Improved vibration resistance by woven-in reinforcement
  • Compressibility 1:3
  • Small bend radius
  • Good vacuum-resistance
  • Silicone free

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PYRO-8-1200 0"H x 0"W x 13"D 0 lbs
DM-922-14.0-111 "H x "W x 13"D 0 lbs
DM-922-12.0-911 14"H x 14"W x 13"D 2 lbs
DM-922-04.0-911 6"H x 6"W x 13"D 2 lbs

Key Buying Criteria:

  • Good tear resistance
  • Improved puncture resistance
  • Lightweight/flexible
  • Wear-resistant

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Odours
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
DM-922-04.0-911 4" (100mm)Ø Master-Clip HT 1200 Hose.
  • 2-layer special coated high temp fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible - best 1000°F range flexible hose on the market and most widely used high temperature vehicle exhaust hose
  • Dynos and high performance engines
  • Temp range – 75°F to 1200°F. Price per ft. (25' Length Minimum)
DM-922-12.0-911 12" (300mm)Ø Master-Clip HT 1200 Hose.
  • 2-layer special coated high temp fabric reinforced in stainless steel wire
  • Excellent high temperature hose yet flexible - best 1000°F range flexible hose on the market and most widely used high temperature vehicle exhaust hose
  • Dynos and high performance engines
  • Temp range – 75°F to 1200°F. Price per ft. (25' Length Minimum)
PYRO-8-1200 8" (200mm)Ø, 2 ply hose 1200° F - Suitable for use in constant flexing applications or with hose reels (price per foot)
  • Color BLACK
DM-922-02.0-111 Use part number DM-922-02.0-911
2" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-02.2-111 Use part number DM-922-02.5-911
2.2" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-02.4-111 Use part number DM-922-02.5-911
2.4" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-02.6-111 Use part number DM-922-02.5-911
2.6 Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-02.8-111 Use part number DM-922-03.0-911
2.8" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-03.0-111 Use part number DM-922-03.0-911
3" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-03.2-111 Use part number DM-922-03.5-911
3.2" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-03.6-111 Use part number DM-922-03.5-911
3.6 Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-04.0-111 Use part number DM-922-04.0-911
4" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-04.4-111 Use part number DM-922-04.5-911
4.4" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-04.8-111 Use part number DM-922-05.0-911
4.8" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-05.0-111 Use part number DM-922-05.0-911
5" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-05.2-111 Use part number DM-922-05.5-911
5.2" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-05.6-111 Use part number DM-922-05.5-911
5.6" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-06.0-111 Use part number DM-922-06.0-911
6" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-06.4-111 Use part number DM-922-06.4-911
6.4" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-06.4-111 Use part number DM-922-07.0-911
6.8" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-07.0-111 Use part number DM-922-07.0-911
7" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-07.2-111 Use part number DM-922-08.0-911
7.2" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-08.0-111 Use part number DM-922-08.0-911
8" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-08.6-111 Use part number DM-922-09.0-911
8.6" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-09.0-111 Use part number DM-922-09.0-911
9" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-10.0-111 Use part number DM-922-10.0-911
10 Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-11.0-111 Use part number DM-922-11.0-911
11" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-12.0-111 Use part number DM-922-12.0-911
12" Ø Master-Clip HT 1200 Hose - price per foot (10 ft. minimum)
DM-922-12.6-111 12.6" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-13.0-111 Use part number DM-922-13.0-911
13" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-14.0-111 Use part number DM-922-14.0-911
14" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-15.0-111 Use part number DM-922-15.0-911
15" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-16.0-111 Use part number DM-922-16.0-911
16" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-18.0-111 Use part number DM-922-18.0-911
18" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-20.0-111 Use part number DM-922-20.0-911
20" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-22.0-111 Use part number DM-922-22.0-911
22" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-24.0-111 Use part number DM-922-24.0-911
24" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-28.0-111 Use part number DM-922-28.0-911
28" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-32.0-111 Use part number DM-922-32.0-911
32" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
DM-922-36.0-111 Use part number DM-922-36.0-911
36" Ø Master-Clip HT 1200 Hose. 2-layer special coated high temp fabric reinforced in stainless steel wire. Excellent hi temp hose yet flexible. Best 1000 F range flexible hose on the market. Also most widely used hi temp vehicle exhaust hose. Dynos and hi performance engines. Temp range – 75F to 1200F. Price per ft. (10' Length Minimum)
