Model

16-005

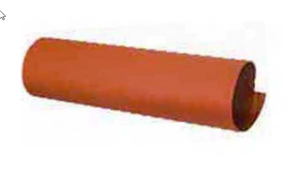

Image for LWHT-600.png

LWHT-600 - Ø 4''/ 5''/ 6'' & 10''

This hose is designed for use in industrial facilities where high-temperature exhausts and abrasive contaminants are being extracted.

Function:

The Vehicle Exhaust Hose is of industrial quality, and is designed for the extraction of vehicle exhaust fumes.

Features:
  • Long Life -> Abrasion resistant both externally and internally
  • High Temperature Resistance -> 600° F
  • Low Pressure Drop -> with very smooth internal bore
  • Light Weight -> easy to use and place into position
  • Fatigue Resistant -> ideal for constant flexing applications such as hose reels and retraction systems

Construction:

  • Material: 2 ply fiberglass, silicone coated
  • Construction: high-temperature bonded, wire encapsulated
  • Compression Ratio: 2:1
  • Diameter (inches): 4'', 5'', 6'', 8''. Other sizes available
  • Available Lengths: 10', 20', 26', 30', or 33' foot lengths

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PT-SFH-10 24"H x 12"W x 13"D 2 lbs

Key Buying Criteria:

  • Good tear resistance
  • Improved puncture resistance
  • Lightweight/flexible
  • Wear-resistant

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Odours
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
PT-SFH-4 Silicone fiberglass hose 4" (100mm)Ø - not suitable for hose reels.
  • sold per ft, 25ft min.
PT-SFH-5 Silicone fiberglass hose 5" (125mm)Ø - not suitable for hose reels.
  • sold per ft, 25ft min.
PT-SFH-6 6" (150mm)Ø 500° hose.
PT-SFH-10 Silicone fiberglass hose 10" (250mm)Ø - ideal for simple drops.
  • Not well suited to spring loaded hose reels

Frequently bought together these options:

Part # Qty Description
PT-SFH-8 Silicone fiberglass hose 8" (200mm)Ø.
