Model

04-012

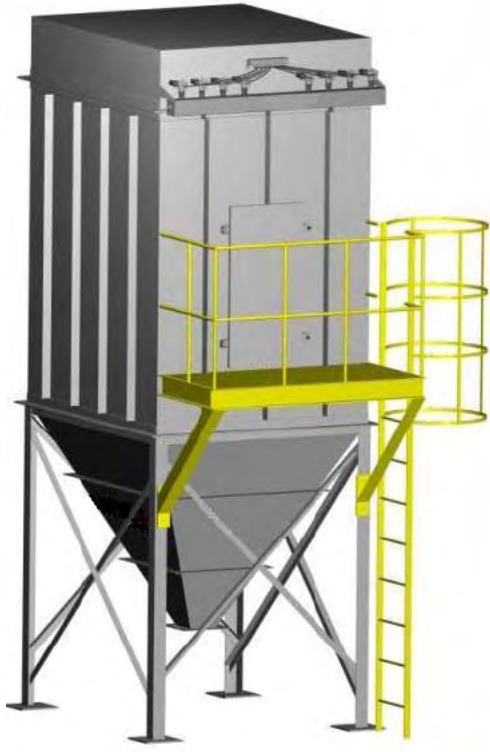

LEV-SCS Series Bag Housing Collectors

The dust is drawn into the dust collector, where the velocity of the dust is reduced. The heaviest particles fall directly into the hopper, while the finest particles are drawn into the interior surface of the bags.
The air coming through the bag is now clean, and can be recirculated within the plant or discharged outside.

Function:

The dust is drawn into the dust collector, where the velocity of the dust is reduced. The heaviest particles fall directly into the hopper, while the finest particles are drawn into the interior surface of the bags.
The air coming through the bag is now clean, and can be recirculated within the plant or discharged outside.

Construction:

Dust collector with a mechanical "shaker", construction is solid and of industrial quality.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
SCS-80-825 167"H x 71"W x 57"D 2000 lbs
SCS-48-495-LEV 1"H x 1"W x 1"D 0 lbs

Part # Qty Description
SCS-100-1031 Shaker Dust Collector SCS series model SCS-100-1031
SCS-100-619 Shaker Dust Collector SCS series model SCS-100-619
SCS-16-100 Shaker Dust Collector SCS series model SCS-16-100
SCS-16-165 Shaker Dust Collector SCS series model SCS-16-165
SCS-25-155 Shaker Dust Collector SCS series model SCS-25-155
SCS-25-258 Shaker Dust Collector SCS series model SCS-25-258
SCS-36-223 Shaker Dust Collector SCS series model SCS-36-223
SCS-36-371 Shaker Dust Collector SCS series model SCS-36-371
SCS-48-297 Shaker Dust Collector SCS series model SCS-48-297
SCS-48-495 Shaker Dust Collector SCS series model SCS-48-495
SCS-48-495-LEV Shaker Dust Collector SCS series model SCS-48-495.
  • Model SCS dust collectors are mechanical bag units with a manual mechanical shaker
  • This industrial quality unit utilizes polyester needlefelt bags for filtration & comes in a short hopper model with (2) drum kits standard
SCS-64-396 Shaker Dust Collector SCS series model SCS-64-396
SCS-64-660 Shaker Dust Collector SCS series model SCS-64-660
SCS-80-495 Shaker Dust Collector SCS series model SCS-80-495

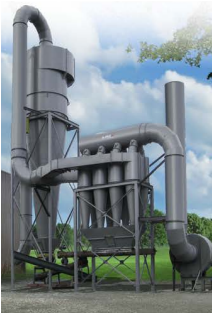

SCS-80-825 Shaker Dust Collector SCS series model SCS-80-825 Model SCS dust collectors are mechanical bag units with an electric mechanical shaker. This industrial quality unit utilizes polyester needlefelt bags for filtration and comes in a short hopper model with 4 drum kit standard.
SCST-100-1031 ! Shaker Dust Collector SCS series model SCST-100-1031
SCST-100-619 ! Shaker Dust Collector SCS series model SCST-100-619
SCST-16-100 ! Shaker Dust Collector SCS series model SCST-16-100
SCST-16-165 ! Shaker Dust Collector SCS series model SCST-16-165
SCST-25-155 ! Shaker Dust Collector SCS series model SCST-25-155
SCST-25-258 ! Shaker Dust Collector SCS series model SCST-25-258
SCST-36-223 ! Shaker Dust Collector SCS series model SCST-36-223
SCST-36-371 ! Shaker Dust Collector SCS series model SCST-36-371
SCST-48-297 ! Shaker Dust Collector SCS series model SCST-48-297
SCST-48-495 ! Shaker Dust Collector SCS series model SCST-48-495
SCST-64-396 ! Shaker Dust Collector SCS series model SCST-64-396
SCST-64-660 ! Shaker Dust Collector SCS series model SCST-64-660
SCST-80-495 ! Shaker Dust Collector SCS series model SCST-80-495
SCST-80-825 ! Shaker Dust Collector SCS series model SCST-80-825

Frequently bought together these options:


Part # Qty Description
HSDS-AN100 AN100 Spark Detection and Extinguishing System complete with:
  • Single Zone Control Panel
  • High Sensitivity Infra-Red Spark Detector Flange mount with sense-check self test feature
  • Spray Assembly – Solenoid Controller Water Spray Assembly with Strainer
  • 24 Volt DC Alarm horn
  • 4.5 Amp hour Backup Batteries
  • Test & commission at job site in GTA by Hansentek technician
  • If the end user is out of GTA, please include HSDS-COM
HSDS-COM Test & commission at job site out of GTA by Hansentek technician.

Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
Blow-Back-SCS-48-495-LEV Blow back 12" (300mm)Ø (atex certified).
Blower-SCS-48-495-LEV Blower Model SXBD-04 includes:
  • Housing
  • AMCA C rating
  • BI wheel
  • Matching paint
  • Base support
  • DIRECT DRIVE TEFC motor - top mounted 3600 cfm @ 10" (250mm) 15HP- 600V/3/60
control Panel-SCS-48-495-LEV Spark detection system Model Hansentek AN 104. Single zone sensor and system include:
  • Control panel (Qte=1) – with circuit sensors on intake and exhaust monitored by a micro-processor including manual or automatic variable sensitivity. Testing includes procedures for interruptor, heat sensor, & 2 infra-red detectors. Also includes test sequence for intermitten water jet, deluge and alarm circui
  • Detectors – 100-1W optic infra-red detectors (qte=2) / NEMA 4 / -40 to 120 F
  • Sprinklers – 1x #900-1S solenoid activated sprinkler - 4x #77S
  • Sonore ALARM siren or Sonore – light stroboscope
  • Backup batteries
  • Optional: Test & start-up of system
Controls-SCS-48-495-LEV Shaker full controls includes:
  • 1HP Shaker motor
  • 15 HP magnetic motor starter 600V/3/60
  • Fuses
  • Fused disconnect with fuses
  • Star/Stop button
  • On/Off lamps
  • Relay’s
  • Transformer 230/460/575-3-60
  • Programmable timer
  • Drawings
CSA Approved
Exp-Door-SCS-48-495-LEV Explosion doors KST<150 -Set of (2).
SIL-SCS-48-495-LEV Silencer 24’’x 18’’ x48’’.
Stand-SCS-48-495-LEV Wider Stand & added (2) Drums.

Part # Qty Description
Prox-Switch Proximity Switch for Dust Collector inductive sensor brass (must have bracket to hold this).
