Model

04-001

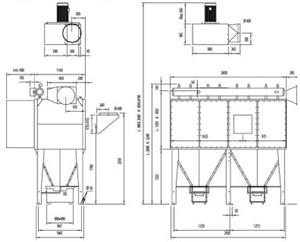

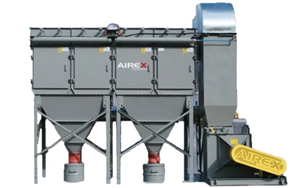

L-Series Central Dust Collector - 25,000 CFM

The L-Series Central Dust Collector unit produces 1,200 to 25,000 CFM with 95%+ filter efficiency and, a self-cleaning system designed for multi-unit metalworking applications.

Function:

These dust collectors have (6)-(30) FILTER-MAX® cartridge filters, 5-30 HP motor/blower and block-off Vibra-Pulse® filter cleaning system. Motor starters/disconnects are not included. These units are ideal for welding applications and/or dry grinding dust.

The L Series units have been designed to be placed near the area of emission for contaminants. A quick-access service door is included to allow for easier maintenance on the block-off components if needed. The cabinet also has a modular design to support multiple module units (HD-6, HD-9, HD-12, HD-16)

Available with:
  • Filter Options
  • Silencer Options
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan and Motor Upgrades or Options

Construction:

  • 36” (915mm) filter cartridges
  • Goyen 1 ½ valves
  • Goyen Timer board
  • Goyen solenoid block kit
  • Vertical cartridge design
  • Manual Cam compression system (No tools required)
  • Dirty side pressure differential line filter
  • Quick access service door
  • Service door hermetic sealing system

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
L9-5000-2 "H x "W x "D 0 lbs
L9-5000-1 "H x "W x "D 0 lbs
L9-4000-2 "H x "W x "D 0 lbs
L9-4000-1 "H x "W x "D 0 lbs
L9-3000-2 "H x "W x "D 0 lbs
L8-4000-2 "H x "W x "D 0 lbs
L8-4000-1 "H x "W x "D 0 lbs
L6-3000-2 "H x "W x "D 0 lbs
L6-3000-1 "H x "W x "D 0 lbs
L6-2000-3 "H x "W x "D 0 lbs
L6-2000-2 "H x "W x "D 0 lbs
L4-2000-3 "H x "W x "D 0 lbs
L4-2000-2 "H x "W x "D 0 lbs
L4-2000-1 "H x "W x "D 0 lbs
L4-1000-3 "H x "W x "D 0 lbs
L4-1000-2 "H x "W x "D 0 lbs
L4-1000-1 "H x "W x "D 0 lbs
L-3500-15-500 1"H x 1"W x 1"D 0 lbs
L30-9000-2 "H x "W x "D 0 lbs
L30-9000-1 "H x "W x "D 0 lbs
L30-10000-2 "H x "W x "D 0 lbs
L24-9000-2 "H x "W x "D 0 lbs
L24-9000-1 "H x "W x "D 0 lbs
L24-8000-2 "H x "W x "D 0 lbs
L24-8000-1 "H x "W x "D 0 lbs
L24-7000-2 "H x "W x "D 0 lbs
L24-7000-1 "H x "W x "D 0 lbs
L24-10000-2 "H x "W x "D 0 lbs
L20-6000-2 "H x "W x "D 0 lbs
L20-6000-1 "H x "W x "D 0 lbs
L16-8000-2 "H x "W x "D 0 lbs
L16-8000-1 "H x "W x "D 0 lbs
L16-7000-2 "H x "W x "D 0 lbs
L16-5000-2 "H x "W x "D 0 lbs
L16-5000-1 "H x "W x "D 0 lbs
HD-9 "H x "W x "D 0 lbs
HD-6 "H x "W x "D 0 lbs
HD-24 80"H x 40"W x 80"D 350 lbs
HD-16 "H x "W x "D 0 lbs
HD-12 "H x "W x "D 0 lbs
DCCH-16 16"H x 7"W x 6"D 5000 lbs

Key Buying Criteria:

  • Complete, Self-Contained Unit: Economical; immediately functional.
  • Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Compressed Air Regulator: Maintains a downstream pressure regardless of the variations in flow.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Plasma and Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
DCCH-16 Cartridge dust collector model DCCH-16 complete with:
  • 36” (915mm) paper cartridges
  • Front access doors
  • Venturi assisted reverse automatic pulse cleaning system
  • Adjustable control board for RP in a NEMA 12 enclosure
  • Quick cam cartridge clamping system
  • Hopper
  • Inlet target plate
  • Magnehelic gauge
  • Stand
  • Drum kit
  • Surge air tank
This was originally called 'DCCH-16' when it was added as a custom product by the sales rep.
HD-12 4000 CFM VERTICAL Cartridge dust collector complete with:
  • (12) FILTER-MAX® cartridge filters
  • Front loading Filters
  • 10 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 5 Gallon pail & hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
HD-16 6000 CFM VERTICAL Cartridge dust collector complete with:
  • (16) FILTER-MAX® cartridge filters
  • Front loading Filters
  • 15 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 20 Gallon pail & hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
HD-24 9000 CFM VERTICAL Cartridge dust collector complete with:
  • (24) FILTER-MAX® cartridge filters
  • Front loading Filters
  • 20 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 20 Gallon pail & hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
HD-30 12000 CFM VERTICAL Cartridge dust collector w/(30) FILTER-MAX® cartridge filters
  • front loading Filters
  • 30 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 20 Gallon pail and hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
HD-6 2000 CFM VERTICAL Cartridge dust collector complete with:
  • (6) FILTER-MAX® cartridge filters
  • front loading Filters
  • 5 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 5 Gallon pail and hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
HD-9 3000 CFM VERTICAL Cartridge dust collector complete with:
  • (9) FILTER-MAX® cartridge filters
  • front loading Filters
  • 7.5 HP motor/blower
  • AMCA Type B spark resistant aluminum blower wheel
  • 5 Gallon pail and hopper
  • TREM-PULSE® Filter cleaning system
  • ½” Compressed air regulator
L12-6000-2 Vertical cartridge dust collector 6000 CFM, (12) cartridges (3780 sq. ft of media) 1.6:1 air-to-cloth ratio complete with SXB-15 15 HP 575V/3/60 3600 RPM top mounted fan.
  • Designed to handle 8 w.g. of external SP
L16-5000-1 Vertical cartridge dust collector 5000 CFM, (16) cartridges (5040 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-16.5 15 HP 208-230V/460V/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L16-5000-2 Vertical cartridge dust collector 5000 CFM, (16) cartridges (5040 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-16.5 15 HP 575/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L16-7000-2 Vertical cartridge dust collector 7000 CFM, (16) cartridges (5040 sq. ft of media) 1.4:1 air-to-cloth ratio complete with SXB-18.25 20 HP 575/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L16-8000-1 Vertical cartridge dust collector 8000 CFM, (16) cartridges (5040 sq. ft of media) 1.6:1 air-to-cloth ratio complete with SXB-20 20 HP 208-230V/460V/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L16-8000-2 Vertical cartridge dust collector 8000 CFM, (16) cartridges (5040 sq. ft of media) 1.6:1 air-to-cloth ratio complete with SXB-20 20 HP 575460V/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L20-6000-1 Vertical cartridge dust collector 6000 CFM, (20) cartridges (5040 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-18 15 HP 208-230V/460V/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L20-6000-2 Vertical cartridge dust collector 6000 CFM, (20) cartridges (5040 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-18 15 HP 575/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L24-10000-2 Vertical cartridge dust collector 10000 CFM, (24) cartridges (7560 sq. ft of media) 1.3:1 air-to-cloth ratio complete with SXB-22.25 25 HP 575/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L24-7000-1 Vertical cartridge dust collector 7000 CFM, (24) cartridges (7560 sq. ft of media), top mounted fan supplied by client.
  • Fan to supply 12,000 CFM @ 12" (300mm)
L24-7000-2 Vertical cartridge dust collector 7000 CFM, (24) cartridges (7560 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-18.25 20 HP 5753/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L24-8000-1 Vertical cartridge dust collector 8000 CFM, (24) cartridges (7560 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-20 20 HP 208-230V/460V/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L24-8000-2 Vertical cartridge dust collector 8000 CFM, (24) cartridges (7560 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-20 20 HP 575/3/60 top mounted fan.
  • Designed to handle 8 w.g. of external SP
L24-9000-1 Vertical cartridge dust collector 9000 CFM, (24) cartridges (7560 sq. ft of media) 1.2:1 air-to-cloth ratio complete with SXB-20 25 HP 208-230V/460V/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L24-9000-2 Vertical cartridge dust collector 9000 CFM, (24) cartridges (7560 sq. ft of media) 1.2:1 air-to-cloth ratio complete with SXB-20 25 HP 575/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L30-10000-2 Vertical cartridge dust collector 10000 CFM, (30) cartridges (9450 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-20 25 HP 575/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L30-9000-1 Vertical cartridge dust collector 9000 CFM, (30) cartridges (9450 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-20 25 HP 208-230/460/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L30-9000-2 Vertical cartridge dust collector 9000 CFM, (30) cartridges (9450 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-20 25 HP 575/3/60 base mounting fan with ducting by others.
  • Designed to handle 8 w.g. of external SP
L-3500-15-500 Pulse Jet Dust Collector. Cartridge collector with computer controlled filter cleaning system, comes in a short hopper model with 1 drum kit standard.
  • Compressor & filter cleaning controls are included
  • Complete with powder coated doors & legs
  • Balance of product is heavy duty galvanized
L-40 Dust collector specifications (Model: L-40) Cartridge dust collector model L-40 complete with 36" (915mm) nano fiber, front access doors, venturi assisted reverse automatic pulse cleaning system, adjustable control board for RP in a NEMA 12 enclosure, quick cam cartridge clamping system, triple hopper, inlet target plate, magna-helic gauge, stand, drum kit, & surge air tank.
Construction details: Casing:
  • Material: black steel
  • Thickness: reinforced 10 gauges
  • Design static pressure: 25" water gauge
  • Cartridge access: outside via hinged access door (no tools required)

Tube sheet:
  • Quantity: 1
  • Type: flat
  • Material: black steel
  • Thickness: 10 gauges, reinforced

Filter media:
  • Material: Nano
  • Quantity: 40
  • Efficiency: 99.999% @ .5 Micron, MERV 15 rating
  • Composition: N-315-361275
  • Maximum operating temperature: 325°F.
  • Media ft2: 305ft2/cartridge

Cartridges:
  • Dimensions: 12" (300mm)Ø X 36 (L)
  • Access: Front horizontal hinged door

Venturis:
  • Type: Spun
  • Material: Steel spinning
  • Capacity: Use with 1.5 Valves

Cartridge cleaning system:
  • Type: Pulse-jet (Venturi Assisted), Cycle 1-2 minute(s) Variable & programmable
  • Compressed air pressure: 100 p.s.i.g.
  • Air properties: clean, dry without oil

Compressed air tank:
  • Quantity: 1 per module
  • Size: 5 ROUND, full length of casing
  • Location: side-mounted

Diaphragm valves:
  • Size: 1
  • Manufacturer: Goyen

Solenoid valves:
  • Location: Mounted inside of an NEMA 4 casing beside the compressed air tank

Pulse controller:
  • System: Pulse-jet
  • Operation: sequence
  • Control adjustment: (1) for pulse timing (adjustable), (1) for interval between pulse (adjustable)
  • Wiring: printed circuit with terminal block
  • Enclosure: NEMA 5/12
  • Location: beside service platform

Differential Pressure Gauge:
  • Quantity: (1) complete with tubing & connections
  • Type: Photo-helic
  • Range: 0-10 water gauge

Support structure:
  • Type: Structural I beam (6 I beam 15.5 lbs/linear foot) legs with seismic zone 4
  • Clearance: 4-0 below hopper

Painting:
  • Standard finish: 1 primer & 2 finishes
  • Surface preparation: cleaned & brushed
  • Type: Polyurethane semi lustre
  • Thickness: Average 2 to 3 mils

Discharge Equipment:
  • Quantity: 1
  • Location: under collector
  • Type: 55 gal. Drum kit
L4-1000-1 Vertical cartridge dust collector 1000 CFM, (4) cartridges (1260 sq. ft of media) 0.8:1 air-to-cloth ratio complete with 5 HP-PW-14 230V/1/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L4-1000-2 Vertical cartridge dust collector 1000 CFM, (4) cartridges (1260 sq. ft of media) 0.8:1 air-to-cloth ratio complete with 5 HP PW-14 208-230V/460V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L4-1000-3 Vertical cartridge dust collector 1000 CFM, (4) cartridges (1260 sq. ft of media) 0.8:1 air-to-cloth ratio complete with 5 HP PW-14 575-600V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L4-2000-1 Vertical cartridge dust collector 2000 CFM, (4) cartridges (1260 sq. ft of media) 1.6:1 air-to-cloth ratio complete with 5 HP SXB-12.25 - 230V/1/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L4-2000-2 Vertical cartridge dust collector 2000 CFM, (4) cartridges (1260 sq. ft of media) 1.6:1 air-to-cloth ratio complete with 5 HP SXB-12.25 208-230V/460V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L4-2000-3 Vertical cartridge dust collector 2000 CFM, (4) cartridges (1260 sq. ft of media) 1.6:1 air-to-cloth ratio complete with 5 HP SXB-12.25 575-600V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L-48 Dust collector specifications (Model: L-48) Cartridge dust collector model L-48 complete with 36" (915mm) nano fiber, front access doors, venturi assisted reverse automatic pulse cleaning system, adjustable control board for RP in a NEMA 12 enclosure, quick cam cartridge clamping system, triple hopper, inlet target plate, magnehelic gauge, stand, drum kit, and surge air tank.
Construction details: Casing:
  • Material: black steel
  • Thickness: reinforced 10 gauges
  • Design static pressure: 25" water gauge
  • Cartridge access: outside via hinged access door (no tools required)

Tube sheet:
  • Quantity: 1
  • Type: flat
  • Material: black steel
  • Thickness: 10 gauges, reinforced

Filter media:
  • Material: Nano
  • Quantity: 48
  • Efficiency: 99.999% @ .5 Micron, MERV 15 rating
  • Composition: N-315-361275
  • Maximum operating temperature: 325F.
  • Media ft2: 315ft2/cartridge

Cartridges:
  • Dimensions: 12 dia. X 36 (L)
  • Access: Front horizontal hinged door

Venturis:
  • Type: Spun
  • Material: Steel spinning
  • Capacity: Use with 1.5 Valves

Cartridge cleaning system:
  • Type: Pulse-jet (Venturi Assisted), Cycle 1-2 minute(s) Variable & programmable
  • Compressed air pressure: 100 p.s.i.g.
  • Air properties: clean, dry without oil

Compressed air tank:
  • Quantity: 1 per module
  • Size: 5 ROUND, full length of casing
  • Location: side-mounted

Diaphragm valves:
  • Size: 1.5"
  • Manufacturer: Goyen

Solenoid valves:
  • Location: Mounted inside of an NEMA 4 casing beside the compressed air tank

Pulse controller:
  • System: Pulse-jet
  • Operation: sequence
  • Control adjustment: one (1) for pulse timing (adjustable), one (1) for interval between pulse(adjustable)
  • Wiring: printed circuit with terminal block
  • Enclosure: NEMA 5/12
  • Location: beside service platform

Diferential Pressure Gauge:
  • Quantity: 1 complete with tubing & connections
  • Type: Photohelic
  • Range: 0-10 water gauge

Support structure:
  • Type: Structural I beam (6 I beam 15.5 lbs/linear foot) legs with seismic zone 4
  • Clearance: 4-0 below hopper

Painting:
  • Standard finish: 1 primer & 2 finishes
  • Surface preparation: cleaned & brushed
  • Type: Polyurethane semi lustre
  • Thickness: Average 2 to 3 mils

Discharge Equipment:
  • Quantity: 1
  • Location: under collector
  • Type: 55 gal. Drum kit
L6-2000-2 Vertical cartridge dust collector 2000 CFM, (6) cartridges (1890 sq. ft of media) 1:1 air-to-cloth ratio complete with 5 HP SXB-12.25 208-230/460/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L6-2000-3 Vertical cartridge dust collector 2000 CFM, (6) cartridges (1890 sq. ft of media) 1:1 air-to-cloth ratio complete with 5 HP SXB-12.25 575/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L6-3000-1 Vertical cartridge dust collector 3000 CFM, (6) cartridges (1890 sq. ft of media) 1.6:1 air-to-cloth ratio complete with 7.5 HP SXB-13.5 208-230V/460V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L6-3000-2 Vertical cartridge dust collector 3000 CFM, (6) cartridges (1890 sq. ft of media) 1.6:1 air-to-cloth ratio complete with 7.5 HP SXB-13.5 575-600V/3/60 direct drive-top mounted fan.
  • Designed to handle 8 w.g. of external SP
L8-4000-1 Vertical cartridge dust collector 4000 CFM, (8) cartridges (3780 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-15 10 HP 208-230V/460V/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
L8-4000-2 Vertical cartridge dust collector 4000 CFM, (8) cartridges (2520 sq. ft of media) 1:1 air-to-cloth ratio.
L9-3000-2 Vertical cartridge dust collector 3000 CFM, (9) cartridges (2835 sq. ft of media) 1:1 air-to-cloth ratio complete with SXB-13.5 7.5 HP 575/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
L9-4000-1 Vertical cartridge dust collector 4000 CFM, (9) cartridges (2835 sq. ft of media) 1.4:1 air-to-cloth ratio complete with 10 HP SXB-15 208-230V/460V/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
L9-4000-2 Vertical cartridge dust collector 4000 CFM, (9) cartridges (2835 sq. ft of media) 1.4:1 air-to-cloth ratio complete with 10 HP SXB-15 575-600V/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
L9-5000-1 Vertical cartridge dust collector 5000 CFM, (9) cartridges (2835 sq. ft of media) 1.76:1 air-to-cloth ratio complete with SXB-16.5 15 HP 208-230V/460V/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
L9-5000-2 Vertical cartridge dust collector 5000 CFM, (9) cartridges (2835 sq. ft of media) 1.76:1 air-to-cloth ratio complete with SXB-16.5 15 HP 575-600V/3/60 - top mounted fan.
  • Designed to handle 8 w.g. of external SP
LEV-BBDAMP-25-00-R1 BLOW BACK DAMPER SHEETMETAL.

Frequently bought together these options:

Part # Qty Description
CYC-HE-96 20,000 CFM Cyclone & Stand Complete with the following options:
  • 55 gal drum kit
  • Steel Band Clamp
  • 12 gauge mild steel
  • Fenwall detector (Connected to Brake in VFD0
  • Blow Back Damper
  • Epoxy Coat
Part # Qty Description
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
Part # Qty Description
L-40-FAN-150 SWSI-L-40-FAN-150 at 1076 rpm. @ 105.8F Mechanical Design. Duty power : 138.0 Bhp @ 68F Class 5. 78 m/s. Cold start power = 138.0 Bhp at 68F General:
  • Nominal Size : 542
  • Nominal Diameter : 1378
  • Percentage Over or Under Impeller Diameter : 100
  • Percent Width : 100
  • Fan RPM : 1076
Class/Flow/Pressure/Velocity:
  • Fan Class 5
  • Tip Speed = 77.6 M/S
  • Fan Static Pressure (Outlet Side Gauge - Inlet Facing Gauge):
  • Actual Inlet Volume Flow = 75000 CFM (35392.38 L/S)
  • Actual Outlet Volume Flow = 74142.1 CFM @ 22.5 C
  • Inlet Pressure = 8 INS WG Outlet Pressure = 0 INS WG
  • Selection Pressure = 1993 Pa @ 1.176 Kg/m3 @ 20 C (63.7% Of Peak Pressure)
  • Performance Conversion To 20c And Mean Sea Level (1.200 kg/m3 or 0.0749 Lbs/ft3):
  • Selection Pressure At 1.2 Kg/m3 = 8.16 INS WG
  • Selection Power At 1.2 Kg/m3 = 105.0 kW (141.0 Bhp)
  • S.G. = 1.00 Relative Humidity = 50%.
  • Elevation : 0 Metres (0 Feet)
  • Maximum Inlet Temperature = 40C
  • Fan Outlet Velocity = 22.4 M/S
  • Inlet Cone Velocity = 22.2 M/S
  • Inlet Cone Velocity is based on a Diameter of 1424 mm
Dimensions and Power:
  • Power Absorbed = 103.0 kW. (138.0 Bhp.) Fan Static Efficiency = 67.2%
  • Fan Total Pressure = 9.18 INS WG
  • Fan Total Efficiency = 77.1%.
  • Compress-ability = 0.995
  • Reynolds Number Correction Ratio used = 1.008
  • Power Before Reynolds Number Correction = 104.0 kW. (139.0 Bhp.)
  • Cold Power = 103.0 kW @ 20 C(Cold Power = 138.0 Bhp @ 68 F)
  • Minimum Motor Size = 113 kW (151.5 Bhp) With Open Damper
  • Temperature Rise = 2.5 C (4.4 F)
Accessories:
  • Standard Bolted Access Door
  • Drain
  • Flanged Inlet
  • Arr.1(BM)
  • OSHA Belt Guard
  • OSHA Shaft Guard
  • Standard Shaft Seal
  • Split Casing
  • Test Run
  • Standard Paint
  • Fixed Pitch V-Belt Drive
  • Motor Supplied
  • Motor Mounted
  • V-Belt Supplied
  • V-Belt Mounted
L-48-FAN-250 SWSI-L-48-FAN-250 at 1058 rpm. @ 105.8F Mechanical Design.
Duty power : 216.0 Bhp @ 68F Class 5. 84 m/s. Cold start power = 216.0 Bhp at 68F
General:
  • Nominal Size : 600
  • Nominal Diameter : 1524
  • Percentage Over or Under
  • Impeller Diameter : 100
  • Percent Width : 100
  • Fan RPM : 1058
Class/Flow/Pressure/Velocity:
  • Fan Class 5
  • Tip Speed = 84.4 M/S
  • Fan Static Pressure (Outlet Side Gauge - Inlet Facing Gauge):
  • Actual Inlet Volume Flow = 106000 CFM (50021.23 L/S)
  • Actual Outlet Volume Flow = 104879.1 CFM @ 22.7 C
  • Inlet Pressure = 8 INS WG Outlet Pressure = 0 INS WG
  • Selection Pressure = 1993 Pa @ 1.176 Kg/m3 @ 20 C (53.6% Of Peak Pressure)
  • Performance Conversion To 20c And Mean Sea Level (1.200 kg/m3 or 0.0749 Lbs/ft3):
  • Selection Pressure At 1.2 Kg/m3 = 8.16 INS WG
  • Selection Power At 1.2 Kg/m3 = 164.0 kW (220.0 Bhp)
  • S.G. = 1.00 Relative Humidity = 50%.
  • Elevation : 0 Metres (0 Feet)
  • Maximum Inlet Temperature = 40C
  • Fan Outlet Velocity = 25.9 M/S
  • Inlet Cone Velocity = 25.7 M/S
  • Inlet Cone Velocity is based on a Diameter of 1575 mm
Dimensions and Power:
  • Power Absorbed = 161.0 kW. (216.0 Bhp.) Fan Static Efficiency = 61.3%.
  • Fan Total Pressure = 9.58 INS WG
  • Fan Total Efficiency = 73.4%.
  • Compress-ability = 0.998
  • Reynolds Number Correction Ratio used = 1.013
  • Power Before Reynolds Number Correction = 163.0 kW. (218.0 Bhp.)
  • Cold Power = 161.0 kW @ 20 C(Cold Power = 216.0 Bhp @ 68 F)
  • Minimum Motor Size = 177 kW (237.4 Bhp) With Open Damper
  • Temperature Rise = 2.7 C (4.9 F)
Accessories:
  • Standard Bolted Access Door
  • Drain
  • Flanged Inlet
  • Arr.1(BM)
  • OSHA Belt Guard
  • OSHA Shaft Guard
  • Standard Shaft Seal
  • Split Casing
  • Test Run
  • Standard Paint
  • Fixed Pitch V-Belt Drive
  • Motor Supplied
  • Motor Mounted
  • V-Belt Supplied
  • V-Belt Mounted
Part # Qty Description
L-SIL-1 Silencer Option for 1000-2000 CFM dust collectors.
L-SIL-2 Silencer Option for 3000-5000 CFM dust collectors.
L-SIL-3 Silencer Option for 6000 CFM dust collector.
L-SIL-4 Silencer Option for 7000-9000 CFM dust collectors.
L-SIL-5 Silencer Option for 10000 CFM dust collectors.
Part # Qty Description
L-WSD-10000 Winter-Summer Damper Option for 10,000 CFM dust collector
L-WSD-9000 Winter-Summer Damper Option for up to 9000 CFM dust collectors
Part # Qty Description
L-PL-10000 Platform & Ladder Option for 10000 CFM dust collector.
L-PL-9000 Platform Option for up to 9000 CFM dust collectors.
Part # Qty Description
HSD Spark detection & Extinguishing system.
L-PAIL-6 LowRe-entrainment - Quick Release Pail for L series Dust collectors. 6.6 Gallon Capacity.
  • Comes complete with quick release handle & clamp
  • This design is far easier to empty than 55 Gallon drums and most importantly keeps fine dust from getting sucked up back on the filters, resulting in reduced filter life and added use of compressed air.
Part # Qty Description
DC-Filter Air filter for side of Magnehelic air line 2” (50mm)Ø x 5” (125mm) height
  • Filter for the control panel in the dust collector
EF1-399 Aluminum Mesh Filter - 17.75 x 17.75 x 1.
ESMV-75 75% CLEANABLE extended surface main replacement filter.
ESMV-85 85% CLEANABLE extended surface main replacement filter.
ESMV-95 95% CLEANABLE extended surface main replacement filter.
ESMV-98 12" x 24" x 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER.
Lev-PamLS Pamic Filter for Photohelic Gauge
  • Minimum quantity of eight
P315-361275 Replacement Filter Cartridge for Lev-co's L series Vertical Cartridge Collectors 80/20 Cell Poly Blend.
P315-NF Replacement Filter Cartridge for Lev-co's L series Vertical Cartridge Collectors .
PRE-MESH-11.75x1 Life-Long Prem Filter - 11.75'' x 11.75'' x 1'' Aluminum Mesh Pre-Filter (EZ-Flow Aluminum)
SB130-361275 12.75Ø x 36 length spun bond polyester replacement filter for cartridge dust collectors.
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
629CDCFB62CB41F3BDCD202D1AA54F30
