Model

16-004

Image for HRHT-850.png

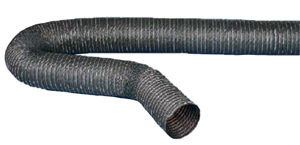

HRHT-850 Vehicle Exhaust - Ø 2.5'' to 24''

Pyroflex© hose has been specifically designed for demanding high temperature “Process Ventilation” applications such as diesel exhaust and many other high-temperature applications (850°F).

Function:

The Vehicle Exhaust Hose is of industrial quality, and is designed for the extraction of vehicle exhaust fumes.

Features:
  • Long Life -> abrasion resistant both externally and internally
  • High Temperature Resistance -> 850°F under normal use and intermittently up to 2000°F
  • Low Pressure Drop -> with very smooth internal bore
  • Light Weight -> easy to use and place into position
  • Fatigue Resistant -> ideal for constant flexing applications such as hose reels and retraction systems

Construction:

  • Ply Silicone: coated 2 ply Nomex
  • Molecular, bonded wire encapsulated
  • Diameters: 2” to 24” I.D
  • Lengths: available up to 20'
  • Compression Ratio: 2:1
All silicone ducts are available with 1 or 2 ply with or without external wear-strip.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
PYRO-5-850 6"H x 6"W x 13"D 30 lbs
PYRO-4-850 4.4"H x 4.4"W x 13"D 0.66 lbs
PYRO-24-1200 "H x "W x 13"D 0 lbs
PYRO-20-1200 "H x "W x 13"D 0 lbs
PYRO-18-1200 "H x "W x 13"D 0 lbs
PYRO-16-850 17.6"H x 17.6"W x 13"D 1.98 lbs
PYRO-16-1200 10"H x 16"W x 13"D 2 lbs
PYRO-14-1200 "H x "W x 13"D 0 lbs
PYRO-10-850 50"H x 30"W x 13"D 1.65 lbs

Key Buying Criteria:

  • Wear-Resistant: High resistance to abrasives both internal and external, making this hose suitable for situations where hose needs to be dragged, or rubbing, common issues found in industrial facilities
  • Fatigue-Resistant: Excellent for applications such as hinges and elbows where continuous bending occurs
  • Light Weight: Ideal for quick, single handed positioning

Suitable For:

Top 5 contaminants/processes/applications:

  • Diesel garages
  • Toxic gas
  • Air-born chemicals
  • Flexible maneuvering
  • Point-source extraction
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
PYRO-2.5-850 2.5" (60mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-8-3/4P-850 Custom 8" (200mm)Ø, 2ply hose 850° F with:
  • 3/4" pitch - Suitable for use in constant flexing applications or with hose reels (price per foot)
  • Minimum length 25' Max length 50'
PYRO-8-850 8" (200mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: Orange
  • Minimum length 25' Max length 50'
PYRO-9-850-3/4 9" (230mm)Ø, 2 ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-4-850 4" (100mm)Ø, silicone nomex 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Colour: Orange
PYRO-5-850 5" (125mm)Ø, 2ply hose 850° F - Suitable for use in CONTINUOUSLY flexing applications such as hose reels (price per foot).
  • Color: Orange
PYRO-10-850 10" (250mm)Ø, 2ply hose 850° F - Suitable for use in constant flexing applications or with hose reels (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 50'
PYRO-16-850 16" (400mm)Ø, 2ply hose 850° F - (1) piece 20ft length.
PYRO-12-1200 12” (300mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-14-1200 14” (350mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (price per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
PYRO-16-1200 16” (400mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot
PYRO-18-1200 18” (460mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot
PYRO-20-1200 20” (510mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot
PYRO-24-1200 24” (610mm)Ø, 2ply hose 1200° F - Suitable for use in constant flexing applications (per foot).
  • Color: BLACK
  • Minimum length 25' Max length 40'
  • Price per foot

Frequently bought together these options:


Part # Qty Description
PYRO-BONDING Bonding 2 sections of Pyro hose
