20-013

ICA ''Adjustable Direction Outlets''
with Hepa H14 filtration

- for Schools, Restaurants, Fitness studios and Changing Rooms

LEV-CO’s Stand-alone ICA (Immediate Clean Air) Adjustable Direction Outlets with Hepa H14 Filtration for Coffeerooms, Lunchrooms, Meeting rooms. and benches. A simple “Pre-engineered” solution with "Clean-to-less-clean" air distribution, HEPA H14 Filtration (99.995% @ 100 Nanometer), Duct and Diffusion Hood.

Product Function:

ICA Adjustable Direction Outlets with HEPA H14 Professional Airpurifiers are used indoors to reduce COVID-19 and other Viruses in the air. They come in two sizes. 700m3/hour and 1000m3/hour maximum airflow. It is recommended to filter the total air volume in a room 6 times/hour. The ICA Adjustable Direction Outlet models are for larger rooms.

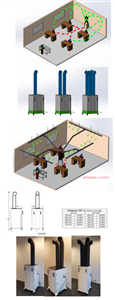

With ADO (Adjustable Direction Outlet) you can direct the cleaned air in any direction and with up to 4 nozzles. This makes it possible to reduce the overall concentration of Virus and Bacteria in larger rooms faster. The 99.995% cleaned air is blown out, in a controlled direction, into the area where people inhale. The cleaned air is better mixed with the rest of the air in the room. The concentration of Virus/Bacteria in the air which come back to the Filter Unit is higher, which means that more Virus/Bacteria are filtrated in a shorter time. The Virus and Bacteria in the room will be reduced faster. ICA-700 is for rooms up to 40m2. ICA-1000 is for rooms up to 60m2.

Here's how it works:
  • STEP 1: The "Clean-to-less-clean" air movement supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application e.g., meeting rooms, lunchrooms, Locker rooms, classrooms, etc. This precise air movement is essential as the viral particles associated with Covid-19 have shown that they can remain airborne, for up to 16 hours in still air.
  • STEP 2: An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room.
  • STEP 3: The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement.
  • STEP 4: A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%.
  • STEP 5: An optional UVC germicidal treatment lamp can be purchased as a supplement to help destroy virus particles that may remain attached to the inner surfaces of the unit’s air intake housing.
  • STEP 6: Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood detailed in Step 1, thus completing the filtration and ventilation circuit. This allows the air in a typical room to be changed over 100 times an hour.

Construction:


Each system Fan/Filter module complete with four-stage filtration:

1. Prefilter for larger particles >50 microns. (Washable)
2. High-efficiency F5 class secondary filter 40-60% efficiency on particles larger than 0.4 microns. (Disposable)
3. High-Efficiency HEPA H14 class final filter 99.995% efficient on particles smaller than 0.1 microns. (Delivered with Efficiency and leak test Certificate)
4. Outlet filter of washable Aluminum mesh (Washable)

Additional Information:

- All ICA air-purifiers come complete with 120V variable-speed EC motors. Units are delivered ready to plug in and use. The fan speed can be adjusted to suit precise ‘Draft-Free’ airspeeds and ‘Ultra Quiet’ noise levels.
- When selected, duct kits come complete with lightweight sheet metal ducting, duct fitting, chains (to hang the hood and duct), and hooks (for the ceiling).
- The duct kit, hoods, and/or supply arms are simple to install and typically require no more than 30 minutes to set up.
- Units are fabricated with heavy-duty, all-steel materials of the highest quality.
- All units are delivered complete with 4x5" diameter locking casters. Alternatively, 5" legs can be ordered separately.
- Optional bacteria killing UVC lamps can be placed before the HEPA H14 filter to kill surface viruses, mold and bacteria.

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
L-851 60"H x 25"W x 30"D 165 lbs
L-849 50"H x 25"W x 25"D 145 lbs
L-847 50"H x 25"W x 25"D 165 lbs
L-845 60"H x 25"W x 30"D 165 lbs
L-843 50"H x 25"W x 25"D 200 lbs
Part #
Qty
Description
L-843
COVID-ICA1/H-ADO1/700-HEPA fan/filter unit H14. 1 Outlet D.200/90. EC 1-phase, 220V,50/60Hz, 175W.H14(8m2).
L-845
COVID-ICA2/H-ADO2/700-HEPA fan/filter unit H14. 2 Outlets D.160/90. EC 1-phase, 220V,50/60Hz, 350W.H14(8m2).
L-847
COVID-ICA1/H-ADO1/1000-HEPA fan/filter unit H14. 1 Outlet D.200/90. EC 1-phase, 220V,50/60Hz, 175W.H14(13m2).
L-849
COVID-ICA2/H-ADO2/1000-HEPA fan/filter unit H14. 2 Outlets D.200/90. EC 1-phase, 220V, 50/60Hz, 350W.H14(13m2).
L-851
COVID-ICA4/H-ADO4/1000-HEPA fan/filter H14. 4 Outlets D.160/90. EC 1-phase, 220V, 50/60Hz, 350W.H14(13m2).

Frequently bought together these options:

Part #
Qty
Description
L-800
Replacement F5 2 " Prefilter for COVID-ICA-700 Models.
L-801
Replacement F5 4" Prefilter for COVID-ICA-1000 Models.
Part #
Qty
Description
L-802
Replacement HEPA filter coronavirus H14 (8m2) for COVID-ICA-700 Models. Certificate and Leak Test.
L-803
Replacement HEPA filter coronavirus H14 (13m2) for COVID-ICA-1000 Models. Certificate and Leak Test.
Part #
Qty
Description
NOZZLE-DIFFUSER-8
Round Nozzle Diffuser - 8 inch - Aluminium
Part #
Qty
Description
L-579
Casters 4x125mm for all air purifiers for COVID-ICA-700/ 1000 Models.
Part #
Qty
Description
CUSTOM-PAINT-UPGRADE
Custom paint upgrade (sheet metal components only). Includes: set up fee, base custom painting, 60 sq ft
Part #
Qty
Description
AC10-2
Air cone with 2" diameter outlet for 10" diameter duct
  • Drill 2.5" diameter hole for mounting
  • AC24-2
    Air cone with 2" diameter outlet for 24" diameter duct
  • Drill 2.5" diameter hole for mounting
  • EC-COUP-8
    8 Duct Coupler
    IN-DSE-08-SS
    8" Dia Stainless Steel Elbow
    IN-SD-08
    8" Ø Spiral Duct(Galvanized), 26 Gauge.
    TEE-8x8x8
    TEE, 8x8x8
