Model

09-004

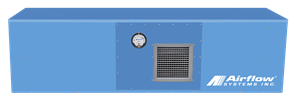

Image for airflowsystems-g-series-ss-072325-web.png

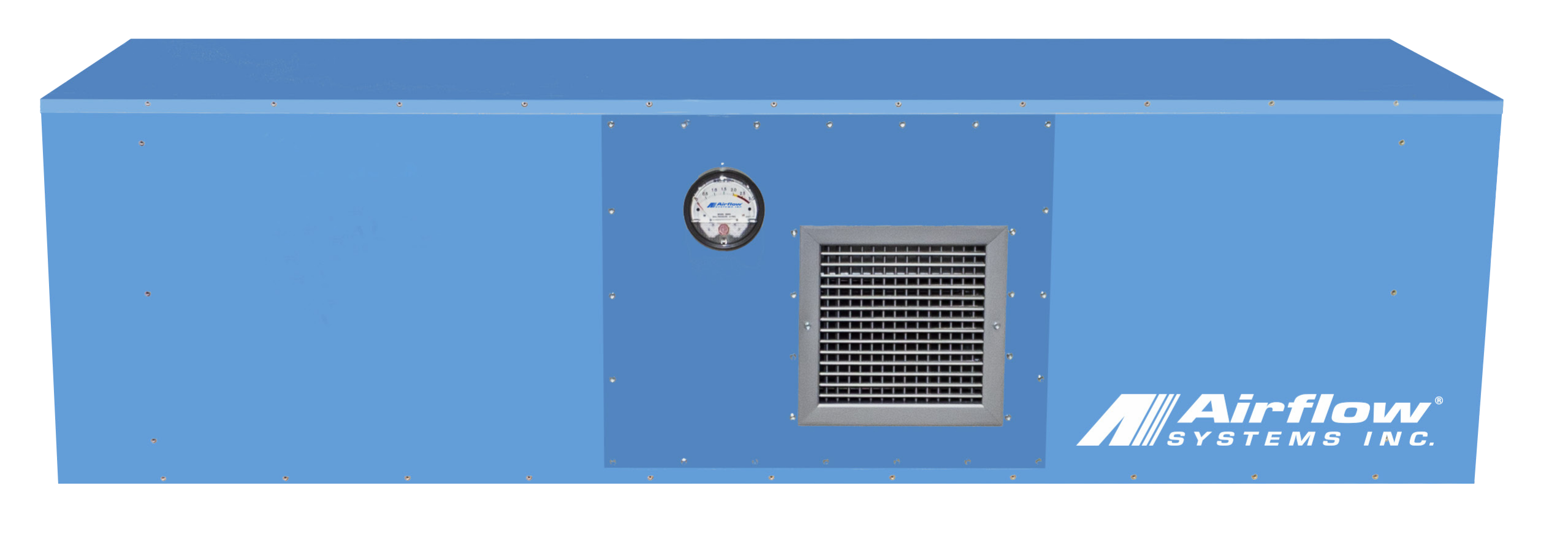

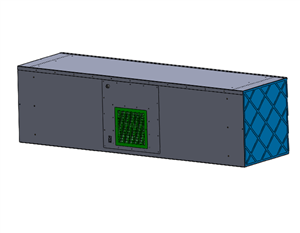

G-300 Series - Free hanging air cleaner - 4000 CFM

The G-Series ambient air cleaners are designed to deliver continuous high-volume air purification without ducting or floor space requirements. With airflow capacities up to 4000 CFM, these plug-and-play units efficiently capture and filter fine airborne dust, smoke, and other contaminants to improve air quality across industrial environments. Their direct drive blower system increases efficiency by up to 23% over belt-driven designs, while smart control options can lower energy costs by as much as 70%.

Function:

These systems operate as free-hanging media filter units, providing multi-stage filtration with up to four filter stages. Each model integrates high-efficiency fiberglass bag filters and pleated pre-filters for extended filter life and reduced maintenance cycles. The G-Series can be mounted on ceilings or walls, ensuring maximum flexibility while keeping valuable floor space free.

The design eliminates the need for ductwork and includes prewired connections to the junction box for fast installation. Standard operation is non-electrostatic, ensuring long-term reliability, and the modular construction allows scalable performance to meet facility-specific needs.

Optional enhancements are available to match varying demands. These include silencers for noise reduction, pressure gauge kits for filter monitoring, inlet plenums, spark baffle pre-filters, and overload disconnects. Units may also be ordered with galvanized or powder-coated steel finishes.

Construction:

  • Cabinet: 16 ga. steel, with galvanized or powder-coated finish
  • Blower: Direct drive (9x9), improves reliability and efficiency up to 23% over belt drives
  • Filters: High-efficiency media, 65% standard fiberglass bag filters (95% optional) with pleated pre-filters; disposable or cleanable
  • Electrical: 0.75 HP – 120V; 3 HP – 208/230/460V; FLA 9.5–10.6A depending on model
  • Dimensions:
    G101 – 24" x 24" x 85" (225 lbs)
    G301 – 24" x 24" x 85" (300 lbs)
    G302-H2 – 24" x 48" x 85" (450 lbs)
    G303-H3 – 24" x 72" x 85" (600 lbs)
    G304 – 48" x 48" x 85" (750 lbs)
  • Noise Level: 75 dBA (standard), 79 dBA (3 HP)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
G30X-SMC-HMI 34"H x 32"W x 86"D 355.0000 lbs
G30X-OVERLOAD 34"H x 32"W x 86"D 355.0000 lbs
G30X-MOUNT 34"H x 32"W x 86"D 355.0000 lbs
G304-95 34"H x 32"W x 86"D 355.0000 lbs
G304 62"H x 50"W x 86"D 800.0000 lbs
G303-95 34"H x 32"W x 86"D 355.0000 lbs
G302-95 34"H x 32"W x 86"D 355.0000 lbs
G302 52"H x 32"W x 86"D 500.0000 lbs
G301-95 34"H x 32"W x 86"D 355.0000 lbs
G301 34"H x 32"W x 86"D 355.0000 lbs

Key Buying Criteria:

  • Performance: Airflow capacities up to 4000 CFM, supporting tough industrial applications
  • Energy Efficiency: Direct drive blower reduces energy use by up to 23% vs. belt-driven designs; optional smart controller reduces operating costs up to 70%
  • Low Maintenance: Ultra-Seal® filter mounting prevents bypass, filters are tool-free, cleanable, and easily replaced
  • Versatility: Wall- or ceiling-mounted, compact footprint, and modular cabinet design for scalable performance
  • Noise Reduction: Optional silencer available to reduce operating sound levels
  • Monitoring: Optional pressure gauge kit ensures optimal filter change intervals

Suitable For:

Top 5 contaminants/processes/applications:

  • Wood Dust
  • Ceramic Dust
  • Grinding Dust
  • Powders
  • Welding Fumes
  • Oil Smoke
  • Shops and Schools
  • Tool Rooms
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
G301 4000 cfm air cleaner with (2) 4" prefilters, (2) 65% bag filters (65 sq.ft./ea.), and a 3 Hp, 230/460v/3ph/60Hz, OPSB, 1725 RPM motor, (Galvanized Steel) 300 lbs.
G302 4000 cfm air cleaner (Vertical) with (4) 4" prefilters, (4) 65% bag filters (2) 65 sq.ft.,+(2) 76.5 sq.ft. and a 3 Hp, 230/460v/3ph/60Hz, OPSB, 1725 RPM motor, (Galvanized Steel) 450 lbs.
G303 4000 cfm air cleaner (Vertical) with (6) 4" prefilters, (6) 65% bag filters (2) 65 sq.ft.,+ (4) 76.5 sq.ft and a 3 Hp, 230/460v/3ph/60Hz, OPSB, 1725 RPM motor, (Galvanized Steel) 600 lbs.
G304 4000 cfm air cleaner (2X2 Cabinet) with (8) 4" prefilters, (8) 65% bag filters (2) 65 sq.ft.,+(6) 76.5 sq.ft. and a 3 Hp, 230/460v/3ph/60Hz, OPSB, 1725 RPM motor, (Galvanized Steel) 750 lbs.

Part # Qty Description
G301-2P 2" Poly filter & 2" Pleat in place of the 4" Pleat for G-301
G301-95 95% bag filter in place of standard 65% bag for G-301
G301-SB (4) Spark Baffle Pre-Filters in place of (2) 4" Pleats for G-301
G302-2P 2" Poly filter & 2" Pleat in place of the 4" Pleat for G-302
G302-95 95% bag filter in place of standard 65% bag for G-302
G302-SB (4) Spark Baffle Pre-Filters in place of (2) 4" Pleats for G-302
G303-2P 2" Poly filter & 2" Pleat in place of the 4" Pleat for G-303
G303-95 95% bag filter in place of standard 65% bag for G-303
G303-SB (4) Spark Baffle Pre-Filters in place of (2) 4" Pleats for G-303
G304-2P 2" Poly filter & 2" Pleat in place of the 4" Pleat for G-304
G304-95 95% bag filter in place of standard 65% bag for G-304
G304-SB (4) Spark Baffle Pre-Filters in place of (2) 4" Pleats for G-304

Part # Qty Description
G30X-PG-3 0-3" Magnahelic dial pressure gauge, surface mounted

Part # Qty Description
G301-PAINT G-301 Painted AFS Nitro Blue Powder Coat (Single Unit)
G302-PAINT G-302 Painted AFS Nitro Blue Powder Coat (Single Unit)
G303-PAINT G-303 Painted AFS Nitro Blue Powder Coat (Single Unit)
G304-PAINT G-304 Painted AFS Nitro Blue Powder Coat (Single Unit)
G30X-MOUNT Mount Overload Disconnect to unit for G-300 Series units
G30X-OVERLOAD Overload Disconnect for G-300 Series units
G30X-SMC-HMI Single Motor Control / HMI (CALL FACTORY for additional installation requirements) for G-300 Series units

Frequently bought together these options:


Part # Qty Description
G30X-STRUTS G-300 Mounting Channels (Single wide unit)
G30X-STRUTS-DBL G-300 Mounting Channels (Double wide unit)

Part # Qty Description
G30X-S-EXT-GALV G-300 Silencer, straight through, Galvanized
G30X-S-EXT-PAINT G-300 Silencer, straight through, Painted

Part # Qty Description
2AF2-9001 2" (50mm) Polyester AFTER-filter pad & frame.
2AF2-9101 Oil mist louver. (24" x 24" x 2").
  • Stage 1 - Prefilter
.
2AZ2-0004 2" (50mm) polyester filter (Pad Only). 2P. (24" x 24" x 2").
7FB6-5122 65% Bag Filter - Replacement for F70-C & T-140 (24" x 24" x 22").
7FB6-5127 65% bag filter, 76.5 sq. ft. (24" x 24" x 26") for G-300 Series units
7FB9-0122 Replacement 95% Bag Filter for the following units:
  • F70R T-3000, T-3500, T-4500 T-6000, T-7500, & T-140 units (24" x 24" x 22")
7FB9-0127 95% bag filter, 76.5 sq. ft. (24" x 24" x 26") for G-300 Series units
7FP3-0102 2" (50mm) Pleated PRE-filter for the following units:
  • 200, 202, 203, PAC91, Fan Pack 2 & F-120/122/240/360/480
7FP3-0105 4" pleated filter, 21 sq. ft., MERV 8. (24" x 24" x 4") for G-300 Series units
