Model

20-019

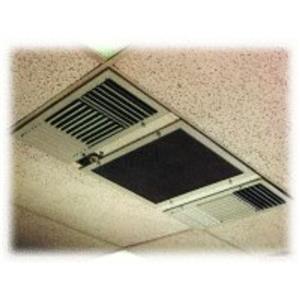

Image for fm1000.jpg

FM1000 Commercial - DIRECTIONAL FLOW AIR CLEANER - 1000 CFM

The FM1000 Commercial Directional Flow Air Cleaner is a great solution for above-ceiling mounting when faced with a standard 2' x 4' ceiling tile opening. This model features a flow rate of 1000 CFM.

Function:

The FM1000 Commercial Directional Flow Air Cleaner comes complete with (1) ½” aluminum mesh pre-filter, (1) 95% main filter (14ft²), (1) ½” charcoal after-filter and an ODOR/EX deodorizer.

For your Safety, each HEPA H14 filter is delivered with a Certificate and is leak tested. The efficiency is over 99.995% on particles and viruses which are under/over 0.16 micrometer (down to 0.01 micrometer). The Filters are manufactured in Europe by a HEPA H14 specialist, well known all over the world. This unit works on the principle of "Clean-to-less-clean" air movement, which supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application.

An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, centrifugal fan that allows the operator to control the flow based on the number of people in the room. The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement. A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%. Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood.

Mounting configurations for this particular unit are completely above the ceiling with a T-bar mount, and can be mounted flush with the ceiling tiles. The FM1000 features washable and/or disposable filters.

Main options:
  • Filter Options
  • Fan Upgrades
  • Motor Upgrades
  • Variable Frequency Drives

Construction:

  • 18 Ga. welded steel cabinet
  • Powder-coat finish
  • (2) direct drive, 9” centrifugal blowers
  • (2) 1/10 HP motors, 115/1/60Hz (2.6 amps each), 3 speed control
  • Running light
  • (2) curved blade, 3-way adjustable, outlet grilles
  • (1) metal egg crate intake grille
  • Motor wired to junction box on inside of unit

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
FM1000 21"H x 27"W x 51.5"D 140 lbs

Key Buying Criteria:

  • Complete, Above-ceiling Unit: Installs completely concealed; quiet operation.
  • Direct-drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
  • Non-electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
  • ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odor control.
  • Disposable/cleanable Media Filters: Can be vacuumed or replaced when dirty, no tools needed.
  • Commercial Duty Cabinet With Textured Epoxy Finish: Durable protection, aesthetic appeal.
  • Adjustable Exhaust: Two Adjustable 3-Way exhaust grills for improved air circulation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Airborne Viruses (COVID-19)
  • Atmospheric Dust
  • Food and Pharma Dusts
  • Offices
  • Break Rooms
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
FM1000 1000 CFM flush mount unit. Fits in standard 2' x 4' ceiling tile opening. Includes (1) ½” aluminum mesh prefilter, (2) 95% main filters (14ft² each), (2) ½” charcoal after-filters, and an ODOR/EX deodorizer.

Frequently bought together these options:


Part # Qty Description
FM1000-AD AD Module Option for Standard FM1000 Unit (order carbon separately)
FM1000-HEPA Two (2) 99.97% HEPA filter in place of 95% main filters. (Adds 30 lbs. to ship weight).
FM1000-PP 5/8" Polyester Prefilter in place of Standard 1/2" Aluminum Mesh.

Part # Qty Description
2AF9-0008 Adsorber module, v-bank, refillable, holds 7 lbs. of charcoal. AD.
2AZ1-0002 5/8 Polyester Prefilter Pad Only.
7CH3-7001-BOX ODOR/EX - Quantity of 12. Price per each.
7CH3-7001-EACH ODOR/EX cartridge. Price per each.
7FA8-0001 Aluminum mesh prefilter.
7FC50003-24 1/2 Charcoal Filter (1-24 QTY)
7FC50003-25 1/2 Charcoal Filter
7FC5-0003-OEM 1/2" Charcoal Filter (50-99 QTY)
7FP9-5401 95% main filter, 14 sq.ft.
7RK31001 Mounting Clip for ODOR/EX with self adhesive strip.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids

Part # Qty Description
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
