Model

10-001

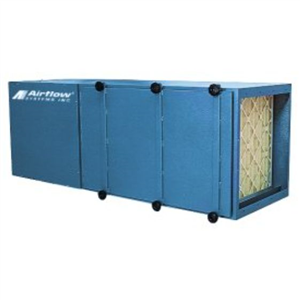

Image for f90.jpg

F90 - 2800 CFM

F90 models collect dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high efficiency, 2 or 3 stage filtration. This model features a flow rate of 2800 CFM.

  • Largest filtration, smallest dimensions
  • Multiple installation configuration options, allowing for installation in congested areas

Function:

The F-90 Ducted Industrial Air Cleaner comes standard with (1) 4” (100mm) deep 30% pleated pre-filter, (1) 65% bag filter, 96ft² of media, and a 1.5 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives

Construction:

  • 16 Ga. steel cabinet with powder-coat finish
  • Ultra-Seal® filter sealing system
  • Side access door to filters
  • Internal belt drive
  • Ball bearing 10’ x 10’ blower with adjustable speed motor pulley
  • 4-way adjustable airfoil blade exhaust grille
  • Motor wired to external junction box; unit wired for 208V unless otherwise specified. (Motor starter not included.)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
F90 31"H x 28"W x 71"D 370 lbs

Key Buying Criteria:

  • Capacities to 2800CFM: Handles toughest industrial applications
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
  • Prewired to Junction Box: For fast, easy installation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
F90 2800 CFM industrial air cleaner with:
  • (1) 4” (100mm) deep 30" (760mm) pleated pre-filter
  • (1) 65% bag filter (96ft²)
  • 1.5 HP TEFC motor, 460/3/60Hz

Frequently bought together these options:


Part # Qty Description
F90-0.95 95% bag filter (96 sq.ft) in place of standard 65% bag.
F90-2A 2" (50mm) aluminum mesh filter in place of 4" (100mm) pleated pre-filter.
F90-2P 2" (50mm) polyester filter with frame, 3.3 sq.ft., in place of 4" (100mm) pleated pre-filter.
F90-95DOP Incl. 95% DOP proceeded by 95% bag filter (add 40 lbs. to shipping wt.). Rated 1600 CFM. (24" x 20" x 4")
F90-AD Adsorption option, includes:
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 95% short bag filter (36 sq.ft.)
  • (2) refillable, v-bank absorber modules
  • (1) 2" (50mm) pleated after-filter. 40 lbs. capacity; rated 1600 cfm
Order charcoal separately. (Adds 18 lbs. to ship weight)
F90-CV Chevron Filter Option for Standard F90 Unit, this option includes:
  • (1) 2" (50mm) aluminum mesh pre-filter
  • (1) 4" (100mm) CHEVRON ® mist eliminator
  • (1) 95% bag filter (96 sq.ft.)
  • (2) drains in cabinet (3/4" FPT)
F90-EC Easy Clean Bag Filter Option for Standard F90 Unit (24" x 20" x 28").
F90-HEPA-12 99.97% DOP HEPA Filter Option for Standard F90 Unit - Larger Filter (24" x 20" x 12").
F90-HEPA-4 99.97% DOP HEPA Filter Option for Standard F90 Unit ( 4" x 20" x 4").
F90-R Reduced maintenance pre-filter, includes plenum & 10 sq.ft. polyester pad (24" x 20" x 28").

Part # Qty Description
F90-S-EXT Exhaust Silencer Option for Standard F90 Unit.

Part # Qty Description
F90-PG-10 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge.
  • 3/16 inside diameter tubing ordered separately
PG-6 0-6" Magnahelic dial pressure gauge.
  • Surface mounted

Part # Qty Description
F90-DK Drain Kit for F90 unit (2 kits needed with Chevron Option).

Part # Qty Description
F90-1- PHASE 115V Option for Standard F90 Unit1.5 HP TEFC motor, 115/230/1/60Hz (16/8 amps), wired to external junction box, with on-off switch on 115V units.
F90-3HP 3 HP TEFC motor, 208-230/460/575/3/60Hz, high pressure.3 HP TEFC motor, 208-230/460/575/3/60Hz, high pressure. Class II, spark resistant, direct drive, B.I. blower
F90-3HP-1PHASE 3 HP TEFC motor, 115/230/1/60Hz, high pressure, Class II, spark resistant, direct drive, B.I. blower.

Part # Qty Description
2AU4-3004 Reduced maintenance pre-filter, includes plenum & 10Sq ft. polyester pad (Adds 20" to overall length and 35 lbs to ship weight).
2KT1-2701 AD or Hepa conversion Part for F120 or F90.
2KT9-3007 Outdoor Option - Rain Shield to protect upper door gasket.
HP-1.5-F90 1.5 HP TEFC Motor 115/230/1/60Jz (16/8 aamps) wired to external junction box, with on-off switch on 115v units.

Part # Qty Description
2AF1-8032 Easy Clean Bag Filter for F90 - Dusts, Mists & Gases - Multiple filter configurations available / Washable and/or Disposable filters - With Fan (500-2,000 CFM)
2AF2-8001 2" (50mm) Polyester filter with frame for F90 & F91 (24" x 20" x 2").
2AF2-8101 Louver oil mist separator for PAC-90, (20" x 24" x 2").
2AF4-8100 Chevron Filter impingement filter (24" x 20" x 4"). CV
2AF9-0002 AD Module, Absorber module,v-bank refillable. Holds 18 lbs. of charcoal, AD
2AZ2-0009 2" (50mm) Polyester Pre-filter (24" x 20" x 2").
2AZ2-0014 2" (50mm) Polyester Pre-filter, for R option only (26" x 51" x 2").
7FA8-0201 2" (50mm) Mesh Pre-filter (24" x 20" x 2").
7FB6-5201 65% Short Bag Filter (24" x 20" x 14").
7FB6-5232 65% Bag Filter (24" x 20" x 32").
7FB6-5232-OEM 65% Bag Filter for F90, F91 & PAC-90 (24" x 20" x 32").
7FB9-0201 95% Short Bag Filter for F-90 filter systems, (L14" x W24" x H20").
  • QTY (8) bags
7FB9-0201-OEM 95% Short Bag Filter for F90, F91 and PAC-90, (24" x 20" x 14").
7FB9-0226 Bag filter for F90 & F91. Mini-pleat filter, (24" x 20" x 26"L).
7FB9-0232 95% Bag Filter for PAC-90 and F-90, (24" x 20" x 32")
7FH9-9212 99.97% DOP HEPA Filter, wood frame, (24" x 20" x 12").
7FH9-9212-OEM HEPA, filter for F90, F91, & PAC-90, (24" x 20" x 12").
7FJ9-5204 DOP, Minipleat filter for F90 & F91, (24" x 20" x 4").
7FJ9-5212 DOP, 95% metal frame, (24" x 20" x 12").
7FJ9-9204 HEPA, Mini-pleat filter for F90 & P91, (24" x 20" x 4").
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod (24" x 24" x 4").
7FP3-0104 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0104-AAF 4" (100mm) replacement pre-filter, 30% efficiency for the following units:
  • EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91, & others (24" x 24" x 4")
7FP3-0202 Pleated filter for F90 & P91, (24" x 20" x 2").
7FP3-0204 4" (100mm) Pleated Pre-filter 30% Efficiency F90 - Dusts, Mists & Gases - Multiple filter configurations available.
  • Washable and/or Disposable filters - With Fan (500-2,000 CFM), L4 W24 H20
7FP3-0204-OEM 4" (100mm) pleated filter for F90, F91, & PAC-90, (24" x 20" x 4").
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40 40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
PP-24-6 Polyester replacement pad for Pre-filter (24" x 6").
