Model

10-005

Image for f480.jpg

F480 - 12,000 CFM

F480 models are designed to collect airborne dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration . This model features a flow rate of 12000 CFM .

  • Largest filtration, smallest dimensions

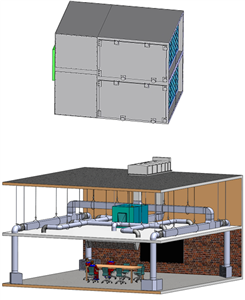

  • Multiple configurations makes installation possible in congested/tight areas

Function:

The F480 ducted Industrial Air Cleaner comes standard with (4 pcs) 4” deep 30% pleated pre-filter, (4 pcs) 65% bag filter, 96ft² of media each, and a 15 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

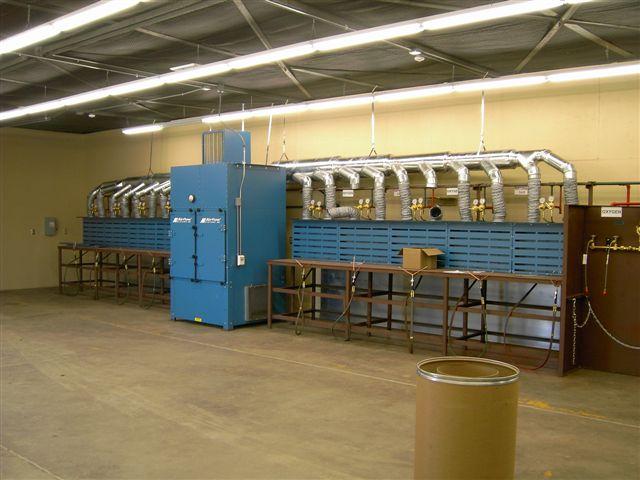

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The filter unit can be upgraded to have different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
  • Sound Attenuation

Construction:

  • 16 ga. steel cabinet with powder-coat finish
  • Ultra-Seal® filter sealing system
  • Side access door to filters
  • Internal belt drive
  • Ball bearing Class II blower with fixed speed pulleys
  • 4-way adjustable airfoil blade exhaust grille and
  • Motor wired to external junction box

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MSF480-CV 66"H x 56"W x 82.5"D 1430 lbs
F480 66"H x 56"W x 82.5"D 1430 lbs
ESMV-98 "H x "W x "D 0 lbs
ESMV-95 12"H x 24"W x 24"D 13 lbs
ESMV-75 14"H x 24"W x 24"D 5 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
CHARCOAL-20 14"H x 10"W x 10"D 20 lbs
CFH-2-10 1"H x 1"W x 1"D 0 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-4505-OEM 4"H x 24"W x 24"D 8 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9113 12"H x 24"W x 24"D 0 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
7FJ9-5112 12"H x 24"W x 24"D 23 lbs
7FH9-9112 12"H x 24"W x 24"D 38 lbs
7FC5-0203 4"H x 25"W x 25"D 8 lbs
7FB9-0132 4"H x 24"W x 24"D 7 lbs
7FB9-0126 5"H x 24"W x 24"D 3 lbs
7FB9-0119-OEM 17"H x 24"W x 24"D 5 lbs
7FB6-5132-OEM 32"H x 24"W x 24"D 4 lbs
7FB6-5126 24"H x 24"W x 3"D 3 lbs
7FB6-5119 25"H x 30"W x 5"D 5 lbs
7FA8-0101-OEM 2"H x 24"W x 24"D 7 lbs
7FA8-0101 25"H x 4"W x 25"D 3 lbs
2AZ2-0004 2"H x 24"W x 24"D 0 lbs
2AF9-0006 12"H x 24"W x 12"D 10 lbs
2AF4-9100 4"H x 24"W x 24"D 20 lbs
2AF1-9032 28"H x 24"W x 24"D 3 lbs

Key Buying Criteria:

  • Class II Belt-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark-resistant.
  • Non-electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter chugs easily without tools.
  • Prewired to Junction Box: For fast, easy installation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
F480 12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). 86 dBA.
F480-VERTICAL 12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). Vertical configuration includes seam welded source capture plenum, 24
MSF480-CV 12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). 86 dBA.
MSF480-VERTICAL-CV 12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). Vertical configuration includes seam welded source capture plenum, 24

Part # Qty Description
16258 24x24x12 Merv 11 Cartidge Filters SH
2AF1-9032 Easy Clean Bag Filter Net Dimensions L28 W24 H24
2AF2-9001 2 Polyester AFTER-filterpad and frame.
2AF4-9100 Chevron Filter. Impingement filter
2AF9-0006 Adsorber v-bank module.
  • 2 are need for Pac 91
2AZ2-0004 2" polyester filter. (Pad Only). 2P. (24" x 24" x 2")
7FA8-0101 Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FA8-0101-OEM Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119 65% Short Bag Filter, (24" x 24" x 17")
7FB6-5126 65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB6-5132-OEM 65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202 and 203
7FB9-0119-OEM 95% Short Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480, 24x24x17
7FB9-0126 95% fiberglass bag filter for F-120/122/240/360/480, 200/202/203, VOM 2400, L-M-30/35/40/60/70
7FB9-0132 95% Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480
  • C/W loops
  • Minimum Order: 2 Filters
7FC5-0203 FILTER,CHARCOAL,50%,24X24x2
7FH9-9112 99.97% HEPA Filter, wood fram
7FJ9-5112 95% @ 0.3 micron DOP filter c/w metal frame, 72 Deep
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FJ9-9113 HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FJ9-9113-OEM HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FM8-0002 Roll stock filter, MERV 12 2"thick x 24.5 wide x 65' long (F240 for Auto-Roll option).
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-OEM MERV 14 Filter, Synthetic, Washable. Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH and MP60.
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
7FP3-0102 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
7FP3-0102-AAF 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
7FP3-0104 4" replacement pre-filter, 30% eff. for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91 and others. (24" x 24" x 4")
7FP3-0104-AAF 4" replacement pre-filter, 30% eff. for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91 and others. (24" x 24" x 4")
AFW-7FM80002 Auto Roll stock Media
CFH-2-10 Refillable Charcoal Filter Holder. Holds 10 lbs of charcoal. Charcoal not included.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
ESMV-75 75% CLEANABLE extended surface main replacement filter
ESMV-85 85% CLEANABLE extended surface main replacement filter
ESMV-95 95% CLEANABLE extended surface main replacement filter
ESMV-98 12" X 24" X 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER
PP-24-6 Polyester replacement pad for Pre-filter... 24" X 6"

Frequently bought together these options:


Part # Qty Description
F480-0.95 Four (4) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
F480-2A Four (4) 2 aluminum mesh filters in place of 4 pleated prefilters.
F480-2P Four (4) 2 polyester filters with frames, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
F480-95DOP 95% DOP HEPA Filter Option for Standard F480 Unit
F480-AD Adsorption option; includes (4) 4 prefilters, (4) 95% short bag filters (64 sq.ft. each), (8) refillable, v-bank absorber modules, and (4) 2 pleated after-filters, 200 lbs. capacity; rated 8000 cfm. Order charcoal separately. (Adds 88 lbs. to ship weight)
F480-CV CHEVRON ® option; includes (4) 2 aluminum mesh prefilters, (4) 4 CHEVRON® mist eliminators, (4) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
F480-EC Easy Clean Bag Filter Option for Standard F480 Unit
F480-HEPA -4 99.97% DOP HEPA Filter Option for Standard F480 Unit
F480-HEPA-12 Hepa-12 Option for F480 Unit This was originally called 'F480-Hepa-12' when it was added as a custom product by the sales rep.
FOF480-0.95-CV Four (4) 95% bag filters (120 sq.ft. each) in place of standard 65% bags.
FOF480-2A-CV Four (4) 2 aluminum mesh filters in place of 4 pleated prefilters.
FOF480-2P-CV Four (4) 2 polyester filters with frames, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
FOF480-95DOP-CV 95% DOP HEPA Filter Option for Standard F480 Unit
FOF480-AD-CV Adsorption option; includes (4) 4 prefilters, (4) 95% short bag filters (64 sq.ft. each), (8) refillable, v-bank absorber modules, and (4) 2 pleated after-filters, 200 lbs. capacity; rated 8000 cfm. Order charcoal separately. (Adds 88 lbs. to ship weight)
FOF480-CV-CV CHEVRON ® option; includes (4) 2 aluminum mesh prefilters, (4) 4 CHEVRON® mist eliminators, (4) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
FOF480-EC-CV Easy Clean Bag Filter Option for Standard F480 Unit
FOF480-HEPA-12-CV Hepa-12 Option for F480 Unit This was originally called 'F480-Hepa-12' when it was added as a custom product by the sales rep.
FOF480-HEPA-4-CV 99.97% DOP HEPA Filter Option for Standard F480 Unit

Part # Qty Description
DLPF-6-24 Pre-filter 24" X 6" complete with mounting hardware. Replacement pads sold separately. Part No.: PP-24-6

Part # Qty Description
F480-S-EXT Silencer Option for Standard F480 Unit
SAF480-S-EXT-CV Silencer Option for Standard F480 Unit

Part # Qty Description
F480-PG-10 0-10" magna-helic pressure gauge, approximately 5" diameter size. Surface mounted.
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
PMF480-PG-10-CV 0-10" magna-helic pressure gauge, approximately 5" diameter size. Surface mounted.

Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD

Part # Qty Description
F480-AR-DUAL Dual F240 Auto-Roll Option for Standard F480 Unit
MOF480-AR-DUAL-CV Dual F240 Auto-Roll Option for Standard F480 Unit
