Model

10-003

Image for f240.jpg

F240 - 6000 CFM

F240 models are designed to collect airborne dust, smoke, oil mist, oil smoke and other atmospheric pollutants in industrial plants, shops, schools, and factories.

High-efficiency multi-stage filtration . This model features a flow rate of 6000 CFM .

  • Largest filtration, smallest dimensions

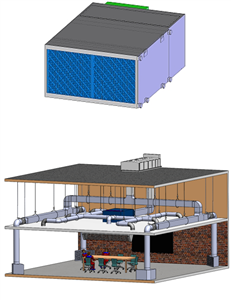

  • Multiple configurations allows for installation in tight/congested areas

Function:

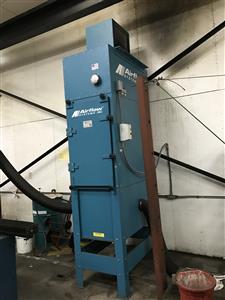

The F240 ducted Industrial Air Cleaner comes standard with (2) 4” deep 30% pleated pre-filter, (2) 65% bag filter, 120ft² of media ea. and a 5 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

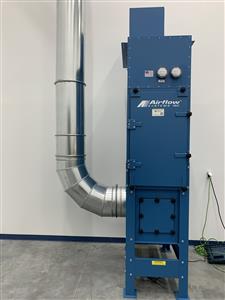

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:
  • Fan and Motor Upgrades
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives
  • Sound Attenuation

Construction:

  • 16 ga. steel cabinet with powder-coat finish
  • Ultra-Seal filter sealing system
  • Side access door to filters
  • Internal belt drive
  • Ball bearing 15 x 15 blower with adjustable speed motor pulley
  • 4-way adjustable airfoil blade exhaust grille
  • Motor wired to external junction box

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
VOC2.0-7000-IN-ST 1"H x 1"W x 1"D 250 lbs
MSF240-VERTICAL-CV 34"H x 54"W x 106"D 250 lbs
MSF240-CV 39"H x 55.5"W x 78.25"D 952 lbs

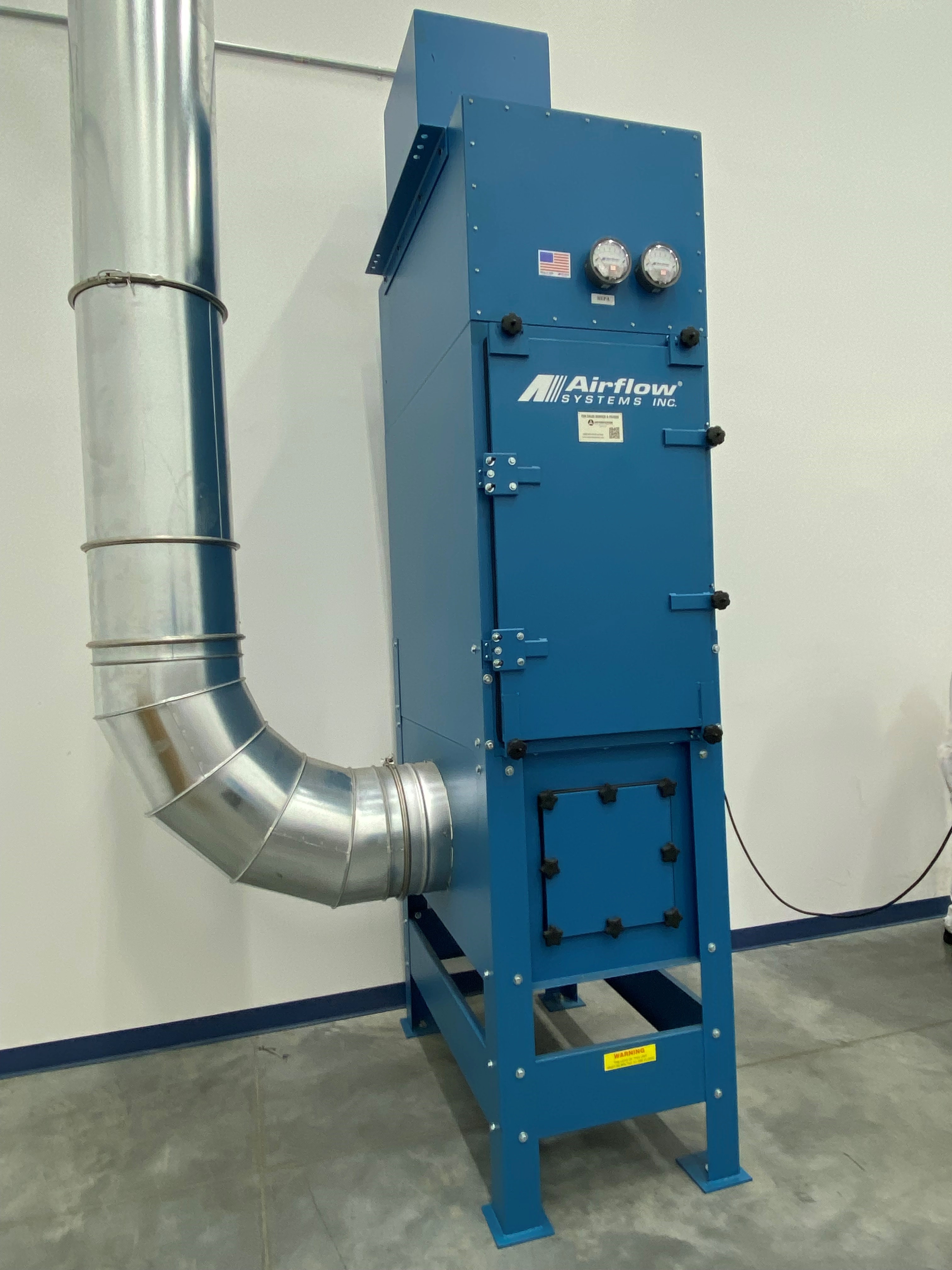

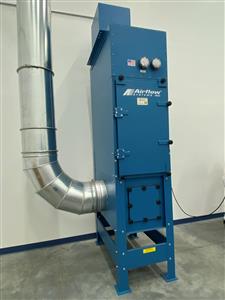

F240-VERTICAL 40"H x 57"W x 128"D 700 lbs
F240 39"H x 55.5"W x 78.25"D 952 lbs
ESMV-98 "H x "W x "D 0 lbs
ESMV-95 12"H x 24"W x 24"D 13 lbs
ESMV-75 14"H x 24"W x 24"D 5 lbs
CHARCOAL-CP40 13"H x 12"W x 13"D 40 lbs
CHARCOAL-CP20 13"H x 12"W x 13"D 20 lbs
CHARCOAL-20 14"H x 10"W x 10"D 20 lbs
CFH-2-10 1"H x 1"W x 1"D 0 lbs
7FP9-0104 4"H x 24"W x 24"D 3 lbs
7FP3-0104-OEM 4"H x 24"W x 24"D 2 lbs
7FP1-4505-P 5"H x 25"W x 25"D 7 lbs
7FP1-4505-OEM 4"H x 24"W x 24"D 8 lbs
7FP1-1412 5"H x 25"W x 25"D 7 lbs
7FJ9-9113 12"H x 24"W x 24"D 0 lbs
7FJ9-9005-OEM 4"H x 24"W x 24"D 15 lbs
7FJ9-9005 4"H x 24"W x 24"D 15 lbs
7FJ9-5112 12"H x 24"W x 24"D 23 lbs
7FH9-9112 12"H x 24"W x 24"D 38 lbs
7FC5-0203 4"H x 25"W x 25"D 8 lbs
7FB9-0132 4"H x 24"W x 24"D 7 lbs
7FB9-0126 5"H x 24"W x 24"D 3 lbs
7FB9-0119-OEM 17"H x 24"W x 24"D 5 lbs
7FB6-5132-OEM 32"H x 24"W x 24"D 4 lbs
7FB6-5126 24"H x 24"W x 3"D 3 lbs
7FB6-5119 25"H x 30"W x 5"D 5 lbs
7FA8-0101-OEM 2"H x 24"W x 24"D 7 lbs
7FA8-0101 25"H x 4"W x 25"D 3 lbs
7BW1-5301 1"H x 15"W x 15"D 15 lbs
7BH1-5101 "H x "W x "D 12 lbs
2AZ2-0004 2"H x 24"W x 24"D 0 lbs
2AF9-0006 12"H x 24"W x 12"D 10 lbs
2AF4-9100 4"H x 24"W x 24"D 20 lbs
2AF1-9032 28"H x 24"W x 24"D 3 lbs

Key Buying Criteria:

  • Class II Belt-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark-resistant.
  • Non-electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes.
  • Prewired to Junction Box: For fast, easy installation.

Suitable For:

Top 5 contaminants/processes/applications:

  • Oil Mist
  • Wood Dust
  • Oil Smoke
  • Plastic Fumes
  • Cannabis Dust
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
F240 6000 cfm industrial air cleaner with (2) 4 deep, 30% pleated prefilters, (2) 65% bag filters, 120 sq.ft. of media each, and a 5 HP TEFC motor. Please specify voltage when ordering.

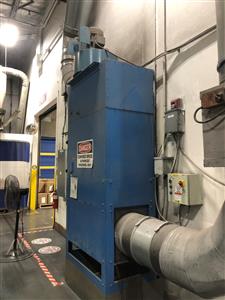

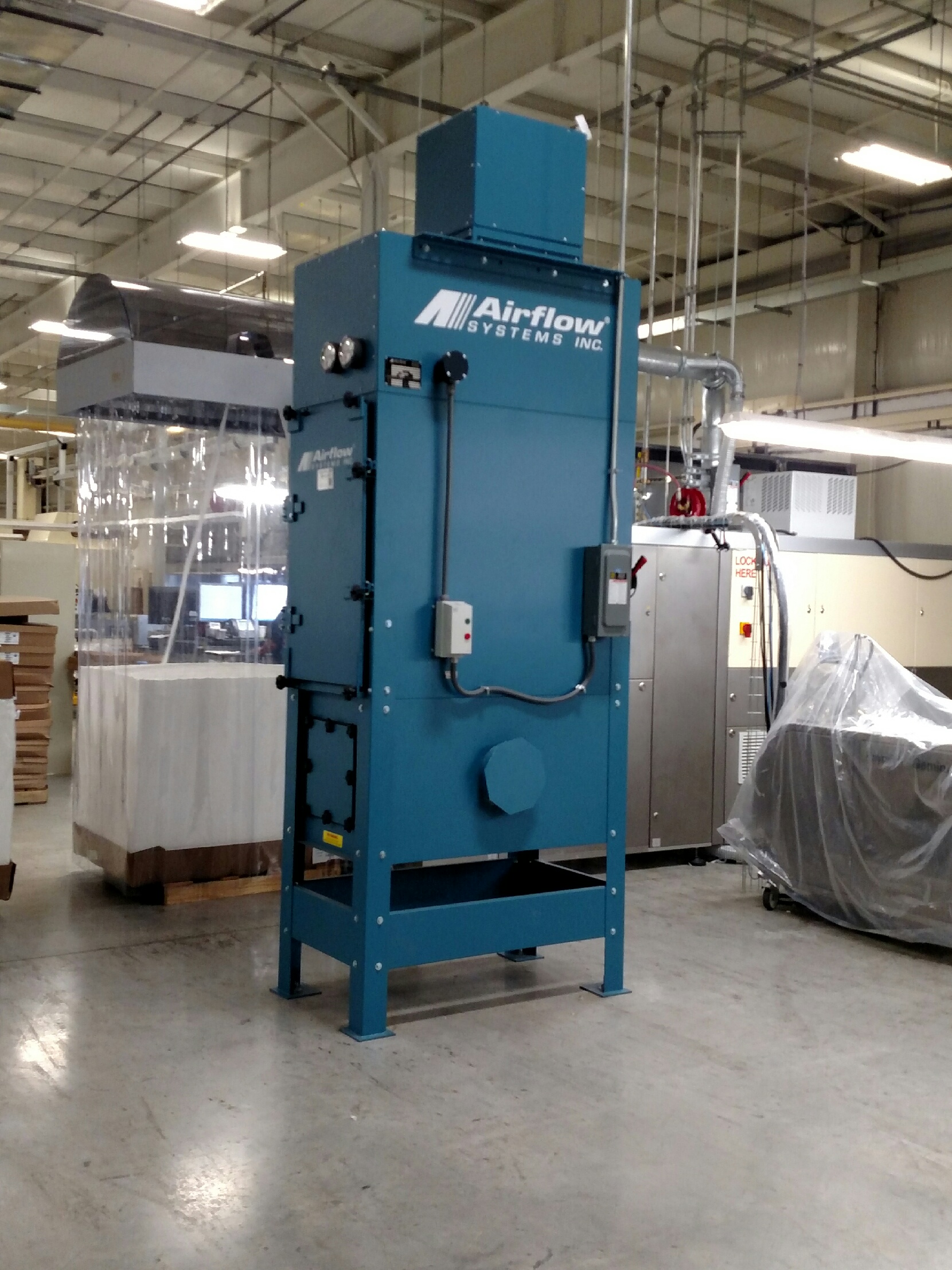

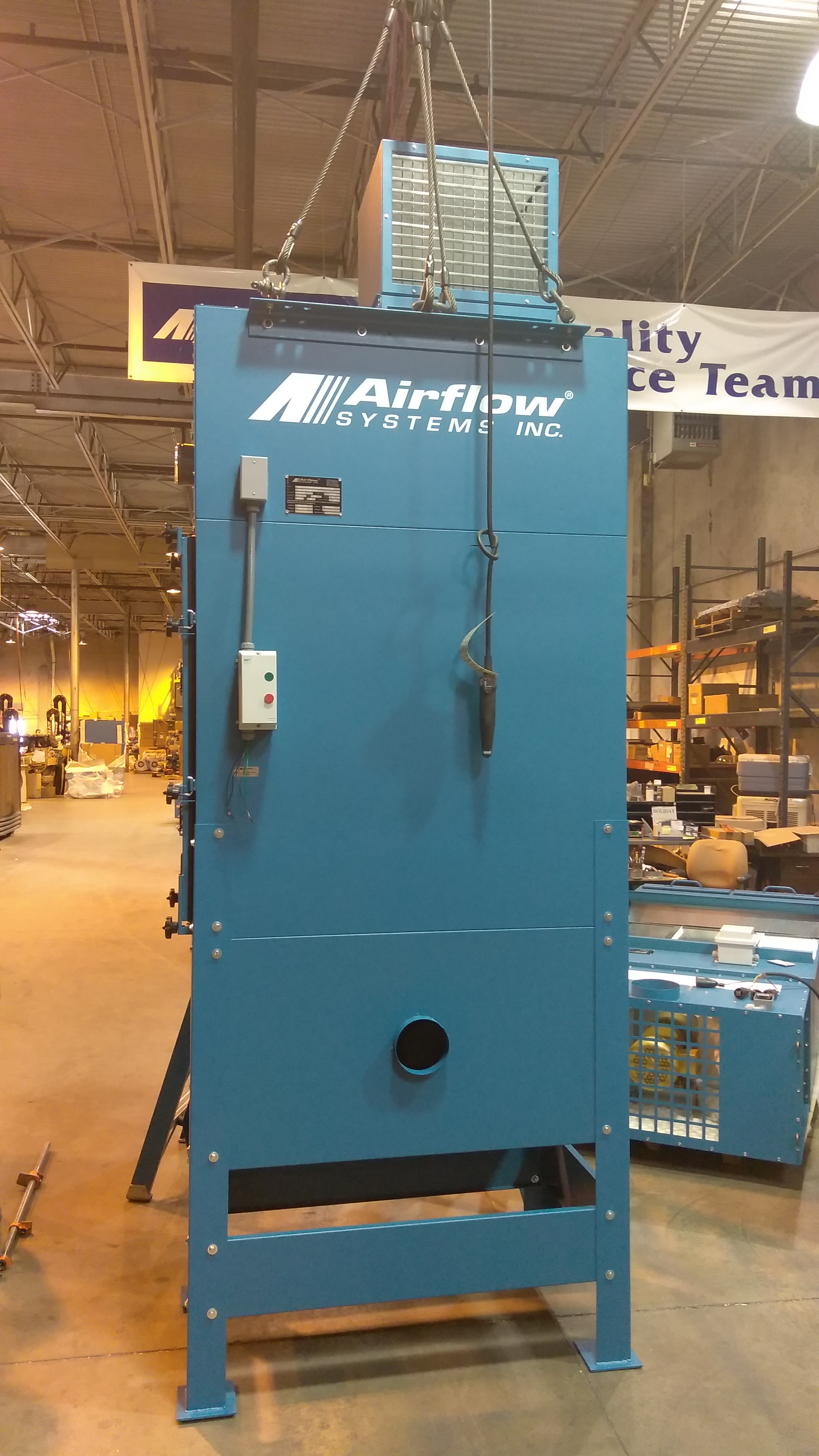

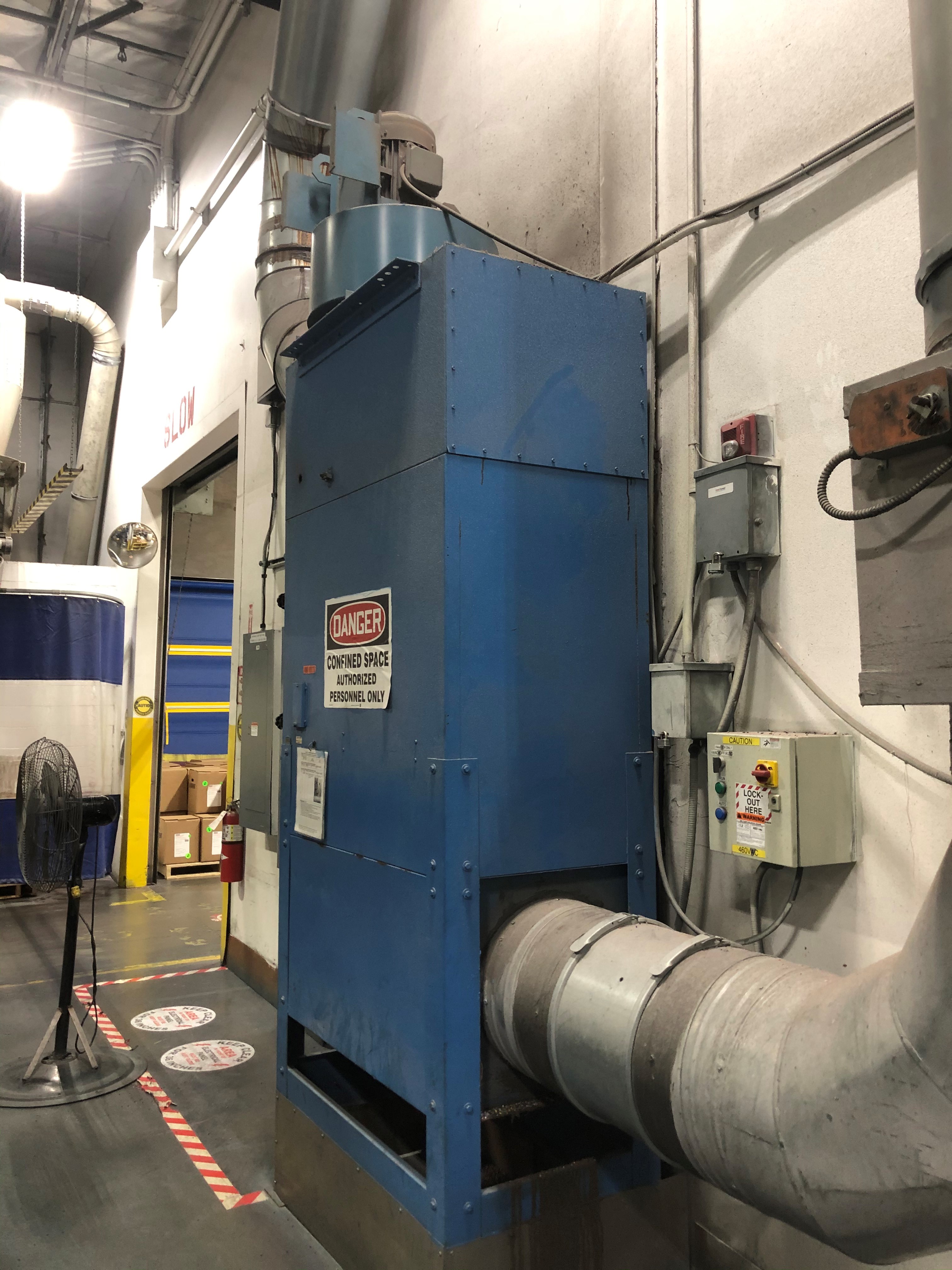

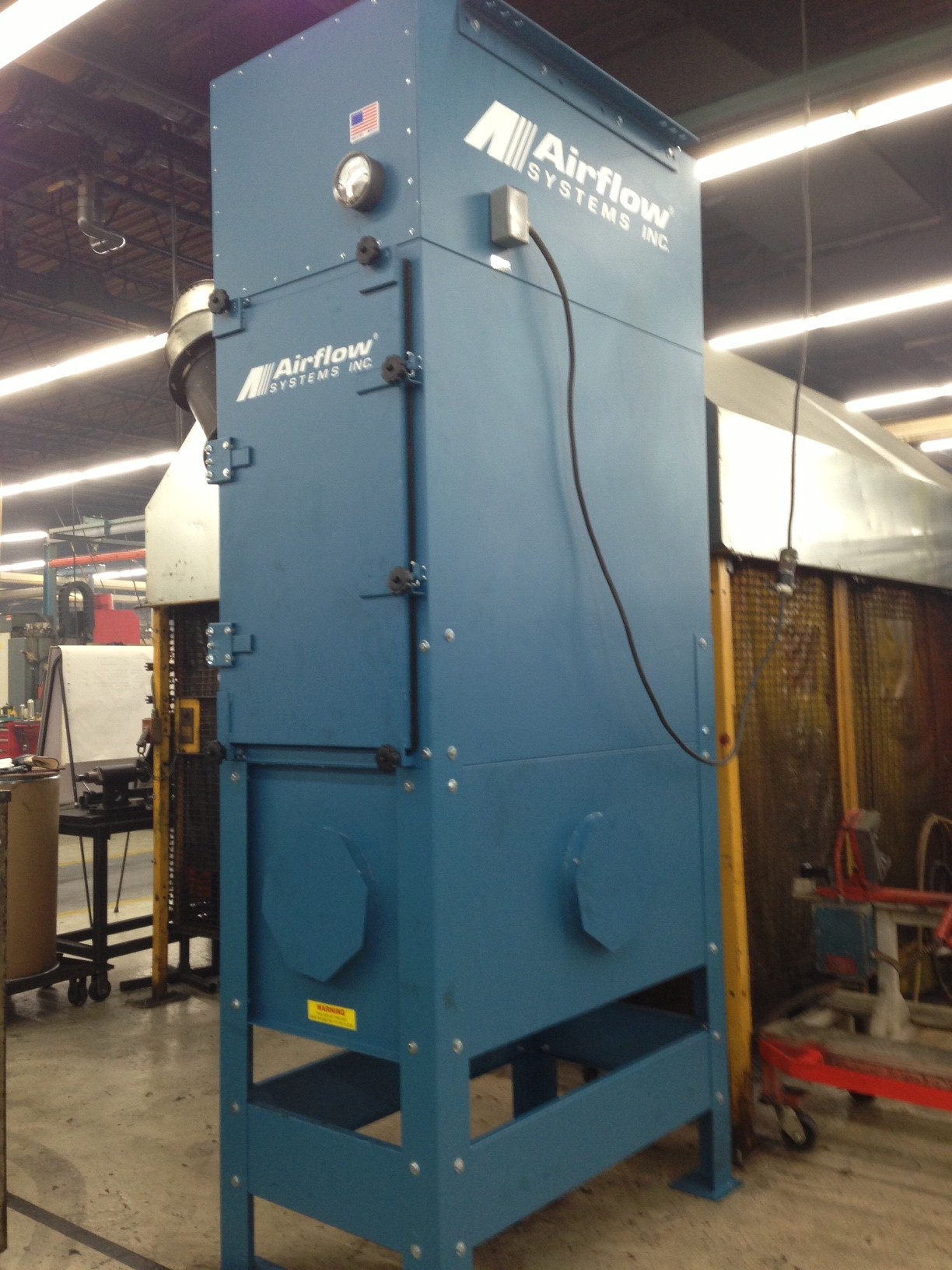

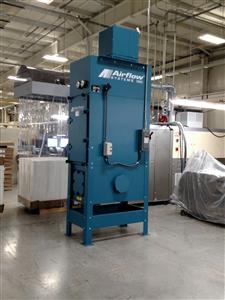

F240-VERTICAL 6000 cfm industrial air cleaner with (2) 4 deep, 30% pleated prefilters, (2) 65% bag filters, 120 sq.ft. of media each, and a 5 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes:
  • Seam welded source capture plenum with 14D inlet
  • 24 Floor Stand
  • 14 D inlet to be on left hand side when looking at filter access door
MSF240-CV 6000 cfm industrial air cleaner with (2) 4 deep, 30% pleated prefilters, (2) 65% bag filters, 120 sq.ft. of media each, and a 5 HP TEFC motor. Please specify voltage when ordering.
MSF240-VERTICAL-CV 6000 cfm industrial air cleaner with (2) 4 deep, 30% pleated prefilters, (2) 65% bag filters, 120 sq.ft. of media each, and a 5 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes:
  • Seam welded source capture plenum with 14D inlet
  • 24 Floor Stand
  • 14 D inlet to be on left hand side when looking at filter access door
VOC2.0-7000-IN-ST 24" stand and inlet plenum. Welded source capture plenum with dual 14"D inlets
  • 24 Floor Stand
  • 14 D inlets
Part # Qty Description
2AF2-9001 2 Polyester AFTER-filterpad and frame.
2AF4-9100 Chevron Filter. Impingement filter
2AF9-0006 Adsorber v-bank module.
  • 2 are need for Pac 91
2AZ2-0004 2" polyester filter. (Pad Only). 2P. (24" x 24" x 2")
7BH1-5101 HOUSING,150-15R. For the F240 unit.
7BW1-5301 WHEEL,15X15,1.187,ALUM,CL2 for the F240 unit.
7FA8-0101 Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FA8-0101-OEM Aluminum Mesh Prefilter. For use with F-120/AirPod I/II/III/PAC-91
7FB6-5119 65% Short Bag Filter, (24" x 24" x 17")
7FB6-5132-OEM 65% Main bag Filter for: F-120, F122, F240, F360, F480, 200, 202 and 203
7FB9-0119-OEM 95% Short Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480, 24x24x17
7FB9-0126 95% fiberglass bag filter for F-120/122/240/360/480, 200/202/203, VOM 2400, L-M-30/35/40/60/70
7FH9-9112 99.97% HEPA Filter, wood fram
7FJ9-9005 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FJ9-9005-OEM 99.97% @ 0.3 micron Mini Pleat 1500 CFM MERV 17 HEPA Filter for MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, & Air Pod
7FJ9-9113 HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FJ9-9113-OEM HEPA, high capacity filter, metal frame. 24x24x12 for F-120, F122, F240, F360, F480 ,DUST CONTROL BOOTH , DC-8 , MP120 and DT3000v2.0 .
7FM8-0002 Roll stock filter, MERV 12 2"thick x 24.5 wide x 65' long (F240 for Auto-Roll option).
7FP1-4505-OEM MERV 14 Filter, Synthetic, Washable. Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH and MP60.
7FP3-0104 4" replacement pre-filter, 30% eff. for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91 and others. (24" x 24" x 4")
7FP3-0104-AAF 4" replacement pre-filter, 30% eff. for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM, T-3000, Pac-91 and others. (24" x 24" x 4")
7FP3-0104-OEM pleated filter for EASY BENCH, T-140, F-120, F122, F240, F360, F480, 2400-DRY, 200, 202, 203, 2400VOM and PAC91 . (24" x 24" x 4").
7FP9-0104 90% Pleated Filter for T-3000, with hard plastic frame. Cleanable with compressed air.
PP-24-6 Polyester replacement pad for Pre-filter... 24" X 6"
16258 24x24x12 Merv 11 Cartidge Filters SH
2AF1-9032 Easy Clean Bag Filter Net Dimensions L28 W24 H24
7FB6-5126 65% Main FIlter for: Pac-91, F-120/122/240/360/480, 200, 202, 203, 2400 VOM & L-M-30/40/70
7FB9-0132 95% Bag Filter For the following filter systems: 200, 202, 203,F-120, F-240, F-360, F-480
  • C/W loops
  • Minimum Order: 2 Filters
7FC5-0203 FILTER,CHARCOAL,50%,24X24x2
7FJ9-5112 95% @ 0.3 micron DOP filter c/w metal frame, 72 Deep
7FP1-1412 Mid-Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"x24"x4"
7FP1-4505-P High Efficiency Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench & Air Pod. 24"X24X"4"
7FP3-0102 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
7FP3-0102-AAF 2" Pleated Prefilter for the following units: 200,202,203, PAC91, Fan Pack 2 & F-120/122/240/360/480.
CFH-2-10 Refillable Charcoal Filter Holder. Holds 10 lbs of charcoal. Charcoal not included.
CHARCOAL-20 20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20 20 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
CHARCOAL-CP40 40 lb of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • aldehydes and organic acids
ESMV-75 75% CLEANABLE extended surface main replacement filter
ESMV-85 85% CLEANABLE extended surface main replacement filter
ESMV-95 95% CLEANABLE extended surface main replacement filter
ESMV-98 12" X 24" X 12" 95% Merv 16, Mini Pleat, WASHABLE EXTENDED SURFACE MAIN FILTER

Frequently bought together these options:

Part # Qty Description
F240-0.95 Two (2) 95% bag filters (120 sq.ft. each) in place of standard 65% bag filters.
F240-2A Two (2) 2 aluminum mesh filters in place of 4 pleated prefilters.
F240-2P Two (2) 2 polyester filters with frame, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
F240-95DOP 95%DOP HEPA Filter Option for Standard F240 Unit
F240-AD Adsorption option; includes (2) 4 prefilters, (2) 95% short bag filters (64 sq.ft. each), (4) refillable, v-bank absorber modules, and (2) 2 pleated after-filters, 100 lbs. capacity; rated 4000 cfm. Order charcoal separately. (Adds 44 lbs. to ship weight)
F240-AR Auto-roll prefilter option; includes automatic pressure switch advancement, 1/6 Hp motor, 1 or 3 phase . Includes initial 65' roll of 2 media.
F240-CV CHEVRON ® option; includes (2) 2 aluminum mesh prefilters, (2) 4 CHEVRON® mist eliminators, (2) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
F240-EC Easy Clean Bag Filter Option for Standard F240 Unit
FOF240-0.95-CV Two (2) 95% bag filters (120 sq.ft. each) in place of standard 65% bag filters.
FOF240-2A-CV Two (2) 2 aluminum mesh filters in place of 4 pleated prefilters.
FOF240-2P-CV Two (2) 2 polyester filters with frame, 4.0 sq.ft. each, in place of 4 pleated prefilters; metal frames with replaceable pads.
FOF240-95DOP-CV 95%DOP HEPA Filter Option for Standard F240 Unit
FOF240-AD-CV Adsorption option; includes (2) 4 prefilters, (2) 95% short bag filters (64 sq.ft. each), (4) refillable, v-bank absorber modules, and (2) 2 pleated after-filters, 100 lbs. capacity; rated 4000 cfm. Order charcoal separately. (Adds 44 lbs. to ship weight)
FOF240-AR-CV Auto-roll prefilter option; includes automatic pressure switch advancement, 1/6 Hp motor, 1 or 3 phase . Includes initial 65' roll of 2 media.
FOF240-CV-CV CHEVRON ® option; includes (2) 2 aluminum mesh prefilters, (2) 4 CHEVRON® mist eliminators, (2) 95% bag filters (120 sq.ft. each) and (3) drains in cabinet (3/4 FPT).
FOF240-EC-CV Easy Clean Bag Filter Option for Standard F240 Unit
Part # Qty Description
DLPF-6-24 Pre-filter 24" X 6" complete with mounting hardware. Replacement pads sold separately. Part No.: PP-24-6
Part # Qty Description
F240-S-EXT Silencer Option for Standard F240 Unit
SAF240-S-EXT-CV Silencer Option for Standard F240 Unit
Part # Qty Description
PG-6 0-6 Magnahelic dial pressure gauge, surface mounted.
F240-PG-10 0-10" magna-helic pressure gauge, approximately 5" diameter size. Surface mounted.
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10 Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
PMF240-PG-10-CV 0-10" magna-helic pressure gauge, approximately 5" diameter size. Surface mounted.
Part # Qty Description
VFD-KIT-1HP-115-230-3 1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3 2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3 3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
