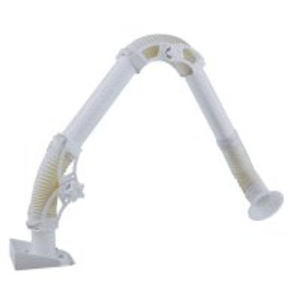

E-Z-ARM JR. - Ø 2.5''

High-performance fume extraction arm with external support joints designed for lab and bench-tops.

Provides airflow rate of 150 CFM.

Function:

3' or 5' long complete with angle cut nozzle. White tubes, hood, and hose (Does not include wall mounting bracket or motor/blower).

  • Filtration: HEPA, cartridge, and odour-control filters systems available based on application
  • Blower Packages: Multiple multiple options available based on specific application

Construction:

  • 18 ga. extruded aluminum seamless tube with spiral flex duct
  • Arm lengths: 4 ft. (E-Z Arm 2.5 2EO4), 6 ft. (E-Z Arm 2.5 2EO6)
  • 2.5" (65mm)Ø arm in 4 or 6 foot lengths provides for high-efficiency source point collection
  • 4.75" (120mm)Ø intake hood increases collection area and efficiency
  • Strong, extruded aluminum tubing epoxy coated for corrosion resistance, lightweight for one-handed positioning
  • Triple-joint section design provides complete 360° range of movement
  • Heavy-duty stamped aluminum joints: external friction adjustments can handle continued repositioning without losing structural integrity

Key Buying Criteria:

  • Dental facilities
  • Low noise
  • Visually appealing
  • High pressure
  • No internal components for flow obstruction
  • Easy positioning and adjustment

Suitable For:

Top 5 contaminants/processes/applications:

  • Soldering Fumes
  • Laboratory gases and dust
  • Food Dust
  • Pharmaceutical
  • Forensics labs
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
2E06-DD E-Z Arm Jr. 2.5” (65mm)Ø extraction arm, 6’L down-flange configuration.
  • Comes complete with wall bracket
2E04-DD E-Z Arm Jr. 2.5” (65mm)Ø extraction arm, 4’L down-flange configuration.
  • Comes complete with wall bracket
2E04-FE E-Z Arm Jr.. 2.5" (65mm)Ø 6' long, high performance, UP-FLANGE extractor with external support joint, flanged hood, white powder-coat aluminum tubes & hood, & white hose
  • Includes universal mounting bracket with 3" (75mm)Ø outlet collar & wall bracket (Order motor/blower assembly separately)
  • Wall bracket ordered separately where required
2E06-FE E-Z Arm 2.5" (65mm)Ø 6' long, high performance, UP-FLANGE extractor with external support joint, flanged hood, white powder-coat aluminum tubes & hood, & white hose
  • Includes universal mounting bracket with 3" (75mm)Ø outlet collar (Order motor/blower assembly separately)
  • Wall bracket ordered separately where required

Part # Qty Description
2KT0-2702 Air flow damper with ABS plastic baffle.
2KT0-2704 Light kit, 20 watt, 115v.
2KT4-1727 Light kit, 115v.
2MP4-1751 SPINNING Base Ring.

Frequently bought together these options:


Part # Qty Description
7HD4-2005 Hose, sold per foot - see owner's manual for proper length.

Part # Qty Description
DSIC** P-147-2 P-Max direct drive fan 0.5 HP 115-230V/1/60.
P-147-1 P-Max direct drive fan 0.5 HP 115-230V/1/60
  • 100% weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-147-2 P-Max direct drive fan 0.5 HP 208-230-460V/3/60.

Part # Qty Description
P-148-1 P-Max© direct drive fan 0.75 HP 115-230V/1/60.
P-148-2 P-Max© direct drive fan 0.75 HP 208-230V/460V/3/60.
P-148-3 P-Max© direct drive fan 0.75 HP 575V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
P-149-3 P-Max© direct drive fan 1 HP 575-600V/3/60.
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Part # Qty Description
M-P-152-1 P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
M-P-152-3 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
EX-FAN-1.5-115/230 P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)
  • 100% Weather-proof and can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge
EX-FAN-1.5-3-575 P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)
  • 100% Weather-proof & can be mounted outdoors/rooftop
  • Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
  • Please specify 1.5 or 2 HP
  • If you need 2HP, please use P-152-3-2HP
P-154-1.5HP-1 **DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60 Note: Must not be used below 8" SP 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Part # Qty Description
P-025-120S-120V-1PH-2.0 HP Energy Saver E- Man© 115V/1/60. Fan Motor control station. Rated up to 2 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-208/230V-3PH-7.5 HP Energy Saver E- Man© 208-230V/3/60. Fan Motor control station. Rated up to 7.5 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-240V-1PH-3HP Energy Saver E- Man© 240V/1/60. Fan Motor control station. Rated up to 3 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-120S-575V-3PH-20HP Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.
P-025-24S-230V-1PH-0.5HP Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-230V-3PH-7.5 HP Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-460V-3PH-20HP Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-20HP Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.
P-025-24S-575V-3PH-30HP Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

Part # Qty Description
MN32H010-AD1-HS-NR 0.63 - 1.0A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 0.63 - 1.0A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
MN32H016-AD1-HS-NR 1.0-1.6A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.0-1.6A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1@575/3/60
MN32H025-AD1-HS-NR 1.6-2.5A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 1.6-2.5A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD ---> HP rating: 1/2/230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
MN32H040-AD1-HS-NR 2.5-4A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 2.5-4A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/60
MN32H063-AD1-HS-NR 4.0-6.3A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 4.0-6.3A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
MN32H100-AD1-HS-NR 6.3-10A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 6.3-10A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
MN32H160-AD1-HS-NR 10-16A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 10-16A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.0@115/1/60, 3.0@230/1/60, 5.0@230/3/60, 10@460/3/60, 15@575/3/60V
MN32H200-AD1-HS-NR 16-20A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 16-20A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
MN32H250-AD1-HS-NR 20-25A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 20-25A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: 2.0@115/1/60, 3.0@230/1/60, 7.5@208/3/60, 7.5@230/3/60, 15@460/3/60, 20@575/3/60
MN32H320-AD1-HS-NR 25-32A Type E Fan Motor control station for portable units. Permits manual start-stop of the fan. Comes complete with:
  • 25-32A Motor Circuit Protector
  • Line Side Adaptor
  • Operator Handle/Shaft
  • 12" x 10" x 8“ NEMA 4/12 Metal Enclosure
  • OVERLOAD---> HP rating: , 5@230/1/60, 10@208/3/60, 10@230/3/60, 20@460/3/60, 25@575/3/60
P-024-1 115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection on/off 14A control power cord & plug
  • Overload rating according to the FLA of the motor
  • Field assembly & installation required
P-024-2 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • Motor Circuit Protector type - "E" rotary 0.63-1.0A OVERLOAD---> HP rating: 1/2@460/3/60, 1/2@575/3/60
P-024-3 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1-1.6A OVERLOAD ---> HP rating: 1/3@230/3/60. 3/4@460/3/60, 1.0@575/3/60
P-024-4 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 1.6-2.5A OVERLOAD ---> HP rating: 1/2@230/1/60, 1/2@230/3/60, 1.5@460/3/60, 1.5@575/3/60
P-024-5 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 2.5-4A OVERLOAD ---> HP rating: 1/8@115/1/60, 1/3@230/1/60, 3/4@230/3/60, 2.0@460/3/60, 3.0@575/3/6
P-024-6 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 4.0-6.3A OVERLOAD---> HP rating: 0.25@115/1/60, 0.75@230/1/60, 1.5@230/3/60, 3/0@460/3/60, 5.0@575/3/6
Price update Jan 30 2010 TC
P-024-7 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 6.3-10A OVERLOAD---> HP rating: 1/2@115/1/60, 1.5@230/1/60, 3@208/3/60, 3.0@230/3/60, 5@460/3/60, 7.5@575/3/60
P-024-8 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 10-16A OVERLOAD---> HP rating: 1.0@115/1/60, 2.0@230/1/60, 3.0@208/3/60, 5.0@230/3/60, 10@460/3/60, 10@575/3/60V
P-024-9 Fan Motor control station. Permits manual start-stop of the fan. Comes complete with:
  • Motor overload protection & on/off control
  • 16-20A OVERLOAD---> HP rating: 1.5@115/1/60, 3@230/1/60, 5@208/3/60, 5@230/3/60, 10@460/3/60, 15@575/3/60
P-024-PORTABLE Additional components for P-024 Fan Motor control station when used on portable units - Required for CSA Standards.

Part # Qty Description
2AX0-2708 Flanged hood, spun aluminum white powder-coat finish.
E-Z ARM 2.5-LK Light Kit 20 watt, 115V for use with Mini-Vac Arms.

Part # Qty Description
LD-240-BRACKET Support bracket for the LD-240-3 Fan.
LD-240-BRACKET-BACK Support bracket for the LD-240-3 Fan, back plate. 1/4" MILD STEEL
LD-240-BRACKET-L Support bracket for the LD-240-3 Fan, Left Side. 1/4" MILD STEEL
LD-240-BRACKET-R Support bracket for the LD-240-3 Fan, Right Side. 1/4" MILD STEEL
LD-240-BRACKET-RED-27-20 LD-240-3 Reducer 27" to 20"
LD-240-BRACKET-RIB Support bracket for the LD-240-3 Fan, Rib, and Gusset. 1/4" MILD STEEL
LD-240-BRACKET-SUP-L Support bracket for the LD-240-3 Fan, Left Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-SUP-R Support bracket for the LD-240-3 Fan, Right Side Front Gusset triangle. 1/4" MILD STEEL
LD-240-BRACKET-TOP Support bracket for the LD-240-3 Fan, Top plate with 29" D by 16x0.5" bolt hole pattern. 1/4" MILD STEEL
REM-FAN-BR-160 P-MAX Fan Mount Bracket complete with:
  • Swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels & Hose Drops, & VE Articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149, & P-152 up to P-156 Fans
P-045-L P-MAX Fan Mount Bracket
  • Complete with swivel for P-Max Fan on H-Max Ext. Boom for Flexi-I, Pro-Flex Extr. Crane (4, 5, 6.5), VE Ext. Boom for Hose Reels, Hose Drops, & VE articulating Crane for Hose Drops (4, 5, 6)
  • For use only with P-147, P-148, P-149 & P-152 up to P-156 Fans.
P-045-R1-1 6.33" (160mm) Swivel Retention Plate for P-045. 14 GA GALVANIZED
P-045-R1-2 6.33" (160mm) Swivel with 1/2" collar for P-045. 16 GA GALVANIZED
P-045-R1-3 Lev-Co formed P-045 Mounting Bracket. 12 GA Mild Steel
REM-FAN-BR-200 P-MAX Fan Mounting Bracket complete with swivel.
  • To be used to install a P-Max fan on a H-Max Extension Boom for Flexi-II, E-Z Arm, & Pro-Flex Extraction Crane 8" (200mm)Ø, VE Extension Boom for Hose Reels & Hose Drops 8" (200mm)Ø & VE articulating Crane for Hose Drops 8" (200mm)Ø
  • For use only with P-147, P-148, P-149, P-152 up to P-156 Fans
P-766-LW-SS Lightweight stainless steel fan mounting bracket with hardware to connect fan.

Part # Qty Description
2E06 CS-1 Ceiling/floor stanchion 1m (3.3') for EZ Arm Junior made of heavy gage material
2E06 CS-2 Ceiling/floor stanchion 2m (7') for EZ Arm Junior made of heavy gage material
2E06 CS-3 Ceiling/floor stanchion 3m (10') for EZ Arm Junior made of heavy gage material
7PH5-2008 Rubber band. Clamp cover. White. 3 DUST / FUME ARM.
E-Z ARM 2.5 Airflow damper with ABS plastic baffle option for E-Z Arm 2.5m (8' 2") Arm.
SQ-BASE-PLATE-P-022 Square base plate for ceiling/floor stanchion.
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
