Model

16-020

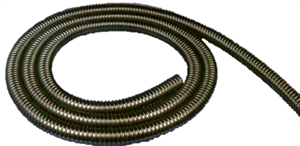

Image for ECH-260.png

ECH-260 Electrically Conductive Hoses - Ø 2'' to 16''

The ECH-260 Electrically Conductive Hose is an ideal solution for explosive dust and vapours, with an average temperature rating of 260°F.

Function:

Applications:
  • Dangerous areas, where electrical conductivity is demanded
  • Special hose for industrial vacuum cleaners
  • Suction and transport of paper fibers and wood chips
  • Transport of granules
  • Suction and transport of abrasive materials, gaseous, and liquid media
  • Extraction of coarse-grained particles with high flow volume
  • Oil-spray extraction
  • Protection hose against mechanical damage
Properties:
  • Surface resistance RO<=104 Ohm
  • Electrically conductive
  • Abrasion-resistant
  • Very flexible, lightweight
  • Small bend radius
  • Resistant to oil and fuels, gas-tight
  • Free of plasticisers and halogens
  • Good chemical resistance
  • UV- and ozone-resistant
  • Improved pressure and vacuum characteristics
  • High tensile and burst strength
  • Optimum flow characteristics

Construction:

  • MD-Master-Pur L-EC Material hose wall
  • Electrically Conductive POLYURETHANE spiral
  • PU-coated spring steel wire

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MD-342-400-207 18"H x 18"W x 13"D 2 lbs
MD-342-350-207 16"H x 16"W x 13"D 2 lbs
MD-342-325-207 15"H x 15"W x 13"D 2 lbs
MD-342-315-207 14.6"H x 14.6"W x 13"D 2 lbs
MD-342-300-207 14"H x 14"W x 13"D 2 lbs
MD-342-280-207 13.2"H x 13.2"W x 13"D 2 lbs
MD-342-275-207 13"H x 13"W x 13"D 2 lbs
MD-342-250-207 12"H x 12"W x 13"D 2 lbs
MD-342-225-207 10"H x 10"W x 13"D 2 lbs
MD-342-200-207 10"H x 10"W x 13"D 2 lbs
MD-342-180-207 9.2"H x 9.2"W x 13"D 2 lbs
MD-342-175-207 9"H x 9"W x 13"D 2 lbs
MD-342-170-207 8.8"H x 8.8"W x 13"D 2 lbs
MD-342-160-207 8.4"H x 8.4"W x 13"D 2 lbs
MD-342-150-207 8"H x 8"W x 13"D 2 lbs
MD-342-140-207 7.6"H x 7.6"W x 13"D 2 lbs
MD-342-130-207 7.2"H x 7.2"W x 13"D 2 lbs
MD-342-125-207 7"H x 7"W x 13"D 2 lbs
MD-342-120-207 6.8"H x 6.8"W x 13"D 2 lbs
MD-342-115-207 6.6"H x 6.6"W x 13"D 2 lbs
MD-342-110-207 6.4"H x 6.4"W x 13"D 2 lbs
MD-342-100-207 6"H x 6"W x 13"D 2 lbs
MD-342-090-207 5.6"H x 5.6"W x 13"D 2 lbs
MD-342-080-207 5.2"H x 5.2"W x 13"D 2 lbs
MD-342-075-207 5"H x 5"W x 13"D 2 lbs
MD-342-070-207 4.8"H x 4.8"W x 13"D 2 lbs
MD-342-065-207 4.6"H x 4.6"W x 13"D 2 lbs
MD-342-060-207 4.4"H x 4.4"W x 13"D 2 lbs
MD-342-050-207 4"H x 4"W x 13"D 2 lbs

Key Buying Criteria:

  • Lightweight: Very flexible and lightweight, and very easy to maneuver
  • High Abrasive Resistance
  • Pyrotechnic: Explosive resistant, suitable for explosive dusts
  • Optimized for Airflow: With a smooth inner wall, this hose provides the most ideal flow characteristics for maximum capture
  • Outdoor Use: UV- and ozone-resistant, this hose won't deteriorate in harsh conditions

Suitable For:

Top 5 contaminants/processes/applications:

  • Explosive Dust
  • Chemical Fumes
  • Vapours
  • Smoke
  • Odour
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part # Qty Description
MD-342-050-207 2" (50mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-060-207 2.4" (62mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-065-207 2.6" (66mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-070-207 2.8" (70mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-075-207 3" (75mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-080-207 3.2" (80mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-090-207 3.6" (90mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-100-207 4" (100mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
Price Updated 2/12/10
Price updated on May-2011
MD-342-110-207 4.4" (110mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-115-207 4.6" (115mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-120-207 4.8" (120mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-125-207 5" (125mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-130-207 5.2" (130mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-140-207 5.6" (140mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-150-207 6" (150mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-160-207 6.4" (162mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-170-207 6.8" (170mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-175-207 7" (175mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-180-207 7.2" (180mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-200-207 8" (200mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-225-207 9" (230mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-250-207 10" (250mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-275-207 11" (280mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-280-207 11.2" (285mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-300-207 12" (300mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-315-207 12.6" (320mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-325-207 13" (330mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-350-207 14" (350mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
MD-342-400-207 16" (400mm)Ø Master-Pur L-EC Hose.
  • Lightweight polyester/polyurethane with wire reinforcement
  • Contains carbon additive to make entire hose electrically conductive
  • Very flexible & black for medium abrasion in high electric charge conditions
  • Minimum 5 times wear life improvement over PVC & TPR
  • Price per ft. (25' Length Minimum)
Get My Instant Quote
Ext.

Technical Info Requested

This site is protected by reCAPTCHA Enterprise and the Google Privacy Policy and Terms of Service apply.
9BB8C08CA76E4FB6BAD5312A869303B8
