Model

04-003

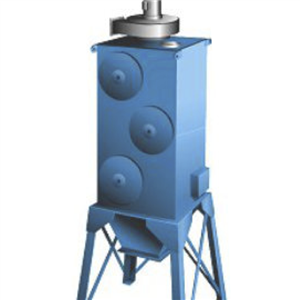

Image for DC-6.png

DC-6 - Dust collector up to 3600 CFM

The DC-6 is a centrally ducted, self-cleaning filtration unit delivering 1,500 to 3,600 CFM at over 99% filtration efficiency. It functions as a stand-alone system or can be directly mounted to machinery, making it suitable for a wide range of dust collection applications.

Function:

The DC-6 is a cartridge dust collector with (6) Clean 2® filters, front load, 3 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel, 4.25 ft3, 11" deep removable dustpan, and auto-clean Vibra-Pulse® cleaning system with ½" regulator. These collectors are ideal for most dust and smoke applications, and they are especially recommended for harsh applications such as Laser and Plasma cutting or "Oily" weld smoke applications.

Available with:
  • Filter Options
  • Silencer Options
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan / Motor Upgrades or Options

Construction:

  • 12 Gauge steel cabinet finished with a 2-part chemical and oil resistant paint.
  • Includes removable end caps for easy access to filters and dust drawer
  • 6" (150mm) legs and a pressure gauge to indicate filter changes
  • Automatic cleaning
  • Direct drive radial motor/blower assembly
  • Motor starters/disconnects NOT INCLUDED
  • Dust Drawer Model Dimensions: 32.00"W x 115.00"H x 42.00"D
  • Hopper/Stand Model Dimensions: 44.00"W x165.00"H x 49.00"D


Noise Level (dB):
  • 90/78 with silencer (3.0 HP)
  • 95/80 with silencer (5.0 HP, Radial)
  • 84/75 with silencer (5.0 HP, Backward Incline)
  • 84/75 with silencer (7.5 HP, Backward Incline)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
DC-6-H55 "H x "W x "D 0 lbs
DC-6 40"H x 40"W x 120"D 850 lbs

Key Buying Criteria:

  • Complete, Self-Contained Unit: Economical; immediately functional.
  • Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when unit is shut off.
  • Compressed Air Regulator: Maintains a downstream pressure regardless of the variations in flow.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Plasma and Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
DC-6 Cartridge Dust Collector with:
  • (6) Clean 2® filters, front load
  • 3 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel, 4.25 ft3
  • 11” (280mm) deep removable dust pan
  • Auto-clean Vibra-Pulse® cleaning system with ½” regulator
DC-6-H55 Cartridge Dust Collector with:
  • 55 gal. hopper
  • (6) Clean 2® filters, front load
  • 3 HP motor/blower with AMCA Type B spark resistant aluminum blower wheel, 4.25 ft3
  • 11” (280mm) deep removable dust pan
  • Auto-clean Vibra-Pulse® with ½” regulator

Frequently bought together these options:


Part # Qty Description
DC-6-EXT-AD2 External AD-2000 CFM (Includes Silencer) Option for Standard DC-6 Unit.
DC-6-EXT-AD4 External AD-4000 CFM (Includes Silencer) Option for Standard DC-6 Unit.
DC-6-EXT-HE2 External Hepa-3000 CFM Option for Standard DC-6 Unit
  • Includes Silencer
  • Includes S-BI silencer option
DC-6-EXT-HE4 External Hepa-4000 CFM Option for Standard DC-6 Unit.
  • Includes Silencer
DC-6-FD FiberDust Cartridge Filter Option for Standard DC-6 Unit
DC-6-HYD-045 Hydro-filter designed to help eliminate sparks. Complete with:
  • 45 gallon drum
  • Easy to remove lid
  • Water level gauge
  • All required ductwork

Part # Qty Description
DC-6-S-BI 5 & 7.5HP BI Blower Silencer Option for Standard DC-6 Unit.
DC-6-SR Silencer 3HP, 5HP radial blowers.
DC-6-S-RAD 3 & 5HP Radial Silencer Option for Standard DC-6 Unit.
DC-6-SR-BI Silencer for 5 and 7.5 BI blowers.

Part # Qty Description
DC-6-PG-10 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part # Qty Description
DC-6-BLOCK OFF Block Off Components Option for Standard DC-6 Unit.
DC-6-CHK DAMPER Inlet Check Damper Option for Standard DC-6 Unit.
DC-6-EXP VENT Explosion Vent Door Option for Standard DC-6 Unit.
DC-6-HOPPER Hopper/stand option (no dust pans)
  • 3 HP blower, available with all other options
  • Capacity: 4.25 cu ft.
  • Includes legs and lid for 55 gal. drum
  • Add 200lbs. to ship weight
DC-6-HOPPER-20 20 Gal. Hopper Option for Standard DC-6 Unit.
DC-6-HOPPER-5 5 Gal. Hopper Option for Standard DC-6 Unit.
DC-6-MC-6 Manual Vibra Clean System Option for Standard DC-6 Unit
DC-6-VENT Explosion vent door, 2.25 ft.2 (Add 20 lbs to ship weight).
DRUM-45 45 imperial gallon (55 US gallons) steel drum complete with lid.

Part # Qty Description
DC-6-5HP - BI 5HP BI Blower Option for Standard DC-6 Unit.
DC-6-5HP - R 5HP Radial Motor Option for Standard DC-6 Unit.
DC-6-7.5HP-BI 7.5HP BI Blower Option for Standard DC-6 Unit.
DC-6-BIN VENT Filter Unit with 3HP Blower (less dust tray) Option for Standard DC-6 Unit.
DC-6-DEL Delete 3HP Blower from Standard Units (add nothing) Option for Standard DC-6 Unit.

Part # Qty Description
7FH9-9112 99.97% HEPA Filter - WOOD FRAME.
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020-BB 24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM Replacement Filter.
7FR0-2021-1 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 & DT3000v2.0.
  • Base Filter
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-2027-BB Cartrige filter double size for DC series dust collectors... PTFE Media
  • Complete with (2) Vibra-Pulse tubes.
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
