Model

04-006

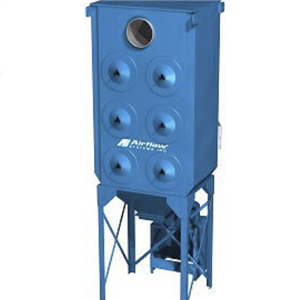

Image for DC-18.png

DC-18 - 10,800 CFM

The DC-18 centrally ducted filter unit produces 4,500 to 10,800 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single-unit metalworking applications.

Function:

Cartridge dust collector with (18) Clean 2® filters, 5 HP motor/blower and block-off Vibra-Pulse® filter cleaning. Motor starters/disconnects are not included. These collectors are ideal for most dust and smoke applications and they are especially recommended for harsh applications such as Laser & Plasma cutting or "Oily" weld smoke applications.

This unit has been designed to be placed outside including having the top panels angled to shed water. An access panel has been added to both sides of the clean air plenum to allow for easier maintenance on the block-off components, if needed. The cabinet also has a modular design to support multiple module units (DC-36, DC-54, etc.)

Available with:
  • Filter Options
  • Silencer Options
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan and Motor Upgrades or Options

Construction:

  • 12 Gauge steel cabinet finished with a 2-part chemical and oil resistant paint.
  • Includes removable end caps for easy access to filters, dust drawer
  • 6" (150mm) legs, pressure gauge to indicate filter changes
  • Automatic cleaning
  • Includes a direct drive radial motor/blower assembly.
  • Motor starters/disconnects NOT INCLUDED
  • Weight (lbs.): 1730
  • Dimensions: 55.00" W x 158.00"H x 58.00"D

Noise Level (dB):
  • 90/78 with silencer (3.0 HP)
  • 95/80 with silencer (5.0 HP, Radial)
  • 84/75 with silencer (5.0 HP, Backward Incline)
  • 84/75 with silencer (7.5 HP, Backward Incline)

Key Buying Criteria:

  • Complete, Self-Contained Unit: Economical; immediately functional.
  • Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-Clean Off-Line Filter Cleaning: Automatically cleans filters when unit is shut off.
  • Compressed Air Regulator: Maintains a downstream pressure regardless of the variations in flow.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Plasma and Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
DC-18 Cartridge dust collector with:
  • (18) CLEAN 2® cartridge filters
  • Floor mounted 5 HP 208/230/460/3/60 BI Blower (12/6 amps)
  • Block-off components for on-line cleaning
  • Motor starters/disconnects not included
ALL DC-18'S COME COMPLETE WITH THE FOLLOWING OPTIONS:
  • DUSTPAK DC-12-BLOCK OFF - Block Off components for on-line cleaning. Use with Hopper option only!!! For DC-18unit.
  • DUSTPAK DC-18-TIMER-3PH - 7-DAY programmable Timer with battery back-up for 3 Phase. Includes magnetic Starter/115V coil & step-down transformer.

Part # Qty Description
DC-18-EXT-AD4 External adsorption option: (4) refillable, v-bank adsorber modules, 100 lbs. capacity; rated at 4000 cfm. Order charcoal separately.
  • Includes S-BI silencer option
DC-18-EXT-HE4 External HEPA option: (2) 99.97% HEPA filters; rated at 9000 CFM.
  • Includes S-BI silencer option
DC-18-FD (18) FIBERDUST® cartridges in place of CLEAN-2® cartridges.
DC-18-UCP (18) ULTRACLEAN-PLUS™ cartridges in place of CLEAN-2® cartridges.

Part # Qty Description
DC-18-PG-10 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
LEV-MC-PG-5 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket, & 0-5" pressure gauge. 3/16 inside diameter tubing ordered separately.
LEV-PG-FM-01 Pressure Gauge 0-5" w.c. - Flush Mount - 01. Mounting kit/retrofit. Complete with pressure gauge, holding plates, tubing, and NPT fittings.
PG-10 Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Frequently bought together these options:


Part # Qty Description
DC-18-S-BI Exhaust silencer for 5 HP, 7.5 HP and 10 HP backward incline blowers.

Part # Qty Description
P-025-120S-575V-3PH-20HP Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

Part # Qty Description
DC-18-EXPVENT Explosion vent door. (Adds 30 lbs. to ship weight.)
DC-18-HOPPER-20 Standard hopper with 20 gallon container & 54" tall legs.
  • Unit height decreases to 212"
DRUM-45 45 imperial gallon (55 US gallons) steel drum complete with lid.

Part # Qty Description
DC-18-10HP-HP 10 HP TEFC motor, 208-230/460/575/3/60Hz, high pressure blower.
  • Replaces 5 HP blower/motor (Adds 150 lbs. to ship weight)
DC-18-25HP-HF 25 HP TEFC motor, 208-230/460/575/3/60Hz, high flow blower.
  • Replaces 5 HP blower/motor (Adds 150 lbs. to ship weight)
DC-18-7.5HP-BI 7.5 HP TEFC motor, 208-230/460/575/3/60Hz, with backward incline blower
  • Replaces 5 HP blower/motor (adds 55 lbs. to ship weight)
DC-18-LESSBLOWER Delete standard 5 HP motor/blower.
DC-18-TOPMOUNT Option for top mounting all blower options for DC-18.

Part # Qty Description
7FH9-9112 99.97% HEPA Filter - WOOD FRAME.
7FR0-2020 Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020 - PTFE Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2020-OEM Replacement Filter.
7FR0-2021-1 Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 & DT3000v2.0.
  • Base Filter
7FR0-2027 Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
CHARCOAL-10 10 lbs. Bag of non-recycled coconut shell-based, activated carbon.
CHARCOAL-15 15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-200 200 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-5 5 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999 CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
DC-W10-Bag Replacement Filter Bags for DC unit
