Model Number

04-005

model_icon

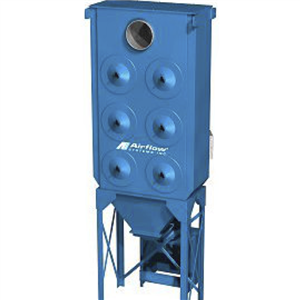

DC-12 - Centrally Ducted Filter Unit

The DC-12 centrally ducted filter unit produces 3,500 to 7,200 CFM with 95%+ filter efficiency and is a direct machine-mounted, self-draining system designed for single-unit metalworking applications.

Function:

The DC-12 is cartridge dust collector with (12) Clean 2® filters, front-loading, 5 HP motor/blower with AMCA Type B spark resistant blower wheel, and auto clean Vibra-Pulse® cleaning system with ½" regulator. Motor starters are not included. These collectors are ideal for most dust and smoke applications. They are especially recommended for harsh applications such as Laser & Plasma cutting or welding smoke applications.

Available with:
  • Filter Options
  • Silencer Options
  • Preventative Maintenance Pressure Gauges
  • VFD Options
  • Fan / Motor Upgrades or Options

Construction:

  • 12 Gauge steel cabinet finished with a 2 part chemical and oil resistant paint.
  • Includes removable end caps for easy access to filters, dust drawer
  • 6" legs, pressure gauge to indicate filter changes
  • Automatic cleaning.
  • Includes a direct drive radial motor/blower assembly.
  • Motor starters/disconnects NOT INCLUDED
  • Weight (lbs.):1730
  • Dimensions: 55.00"W x 158.00"H x 45.00"D

Noise Level (dB):
  • 90/78 with silencer (3.0 HP)
  • 95/80 with silencer (5.0 HP, Radial)
  • 84/75 with silencer (5.0 HP, Backward Incline)
  • 84/75 with silencer (7.5 HP, Backward Incline)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
DC-12 "H x "W x "D 1880 lbs
CS-350-999 13.5"H x 16"W x 16.6"D 12 lbs
CHARCOAL-5 5"H x 5"W x 10"D 5 lbs
CHARCOAL-200 35"H x 23"W x 23"D 250 lbs
CHARCOAL-15 14"H x 10"W x 10"D 16 lbs
CHARCOAL-10 14"H x 10"W x 10"D 11 lbs
7FR0-5020 15"H x 18"W x 18"D 11 lbs
7FR0-2027 13"H x 16"W x 16"D 12 lbs
7FR0-2021-1 18"H x 18"W x 16"D 10 lbs
7FR0-2020-OEM 18"H x 13.5"W x 16"D 12 lbs
7FR0-2020 14"H x 17"W x 17"D 12.2 lbs
7FH9-9112 12"H x 24"W x 24"D 38 lbs

Key Buying Criteria:

  • Complete, self-contained unit: Economical; immediately functional.
  • Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Non-electrostatic operation: High reliability, low maintenance.
  • Compressed filter mounting: Eliminates contaminant bypass of filters.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Auto-clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.
  • Compressed Air Regulator:Maintains a downstream pressure regardless of the variations in flow.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Welding
  • Plasma & Laser Cutting
  • Aerospace Machining
  • Grinding Sparks
  • Wood Dust
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
DC-12
Cartridge dust collector with (12) Clean 2® filters, front load, 5 HP motor/blower with AMCA Type B spark resistant blower wheel, and auto clean Vibra-Pulse® cleaning system with ½” regulator. Motor starters not included
Part #
Qty
Description
7FH9-9112
99.97% HEPA Filter, wood fram
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend,. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units. Complete with Vibra Pulse Tube
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units
7FR0-2020-OEM
Replacement Filter
7FR0-2021-1
Cartridge for PCH-1, PCH-2, DCH-1, DCH-2, DC-4, DC-6, DC-8, DC-12, DTH-800, DTH-1700 and DT3000v2.0.
  • Base Filter
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive and flamable applications such as aluminum dust applications.
CHARCOAL-10
10 lbs. Bag of non-recycled coconut shell-based, activated carbon.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-200
200 lbs. of non-recycled coconut shell-based activated charcoal
CHARCOAL-5
5 lbs. of non-recycled coconut shell-based activated charcoal.
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube

Frequently bought together these options:

Part #
Qty
Description
DC-12-EXT-AD4
External AD-4000 CFM (Includes Silencer) Option for Standard DC-12 Unit
DC-12-EXT-HE4
External Hepa-6000 CFM (Includes Silencer) Option for Standard DC-12 Unit.(Includes S-BI silencer option.)
DC-12-FD
FiberDust Cartridge Filter Option for Standard DC-12 Unit
DC-12-UCP
ULTRACLEAN-PLUS Cartridges Option for Standard DC-12 Unit
Part #
Qty
Description
DC-12-S-BI
5HP, 7.5HP & 10HP BI Blower Silencer Option for Standard DC-12 Unit
Part #
Qty
Description
DC-12-PG-10
0-10 magna-helic pressure gauge, approximately 5 diameter size. Surface mounted.
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
Part #
Qty
Description
VFD-AC-460V-3HP-NEMA4X-WHT
3.0 HP AC DRIVE ,460V single or 3 PH IN 3 PH OUT in NEMA 4 enclosure and simple "Dial/Potentiometer" speed control.
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
