Model

05-006

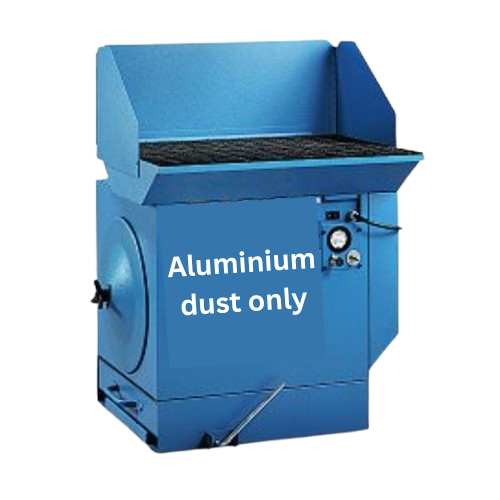

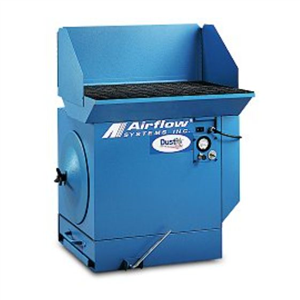

ALH1 Downdraft table for aluminum dust - 5.3FT ² CAPTURE AREA

ALH1 - A self-contained Downdraft table that meets NFPA 651 standard for processing and finishing aluminum With a max flow rate of 800 CFM to 1,700 CFM

Function:

Features a work surface that draws contaminants away from workers' breathing zone without hindering the worker's movement.

The table offers a Direct-Drive Blower, Non-electrostatic Operation, an Ultra-Seal® Filter Mounting, Optional Casters, and an Ergonomic Cabinet. The electrical also meets the standards of NFPA Division II with group-E for aluminum dust.

Available with:
  • Filter Options
  • Localized Enclosures and Shields
  • Silencer Option
  • VFD Options
  • Fan/Motor Upgrades or Options
  • Preventative Maintenance Pressure Gauges

Construction:

  • 12/14/16 gauge welded steel cabinet with powder-coat finish
  • Includes removable end cap for easy access to the filter
  • Removable back panel for access to direct drive motor/blower compartment
  • Removable 5-gallon external dust drawer
  • 8” front wheels with 5” rear swivel casters
  • 12 gauge power cord
  • On-off switch for 115V units
  • 1 phase and 3 phase units are wired to a side junction box. (Motor starter not included.)
  • Different sizes are: 24''D X 32’’W (800 CFM); 24''D X 48’’W (1700)

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
ALH1-3 "H x "W x "D 0 lbs
ALH1-2 "H x "W x "D 0 lbs
ALH1-1 80"H x 55"W x 41"D 425 lbs

Key Buying Criteria:

  • Integral Collection Area and Work Surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in the facility.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Explosion Proof Fan: Safe for mounting in explosive environments (Requires optional Hazardous location Certification)
  • Low Profile cabinet Easy access speeds filter changeout and maintenance.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Dust Drawer: Easily remove external dust drawer with positive lever lock.

Suitable For:

Top 5 contaminants/processes/applications:

  • Large Particle Aluminum dust (with a K factor below 100)
  • VOC Fumes
  • Composite Dust
  • Deburring Dust
  • Grinding Particles
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

Part # Qty Description
ALH1-1 800 cfm portable downdraft table to collect aluminum dust:
  • 24" deep x 32" wide work surface at 36.25" height
  • 150 fpm downdraft velocity
  • 12" tall aluminum side & back shields with aluminum grate panels
  • Contains (1) ULTRACLEAN-PLUS ™ cartridge filter (150 sq.ft.) & a 1 HP Class II, Group E motor. 115/230/1/60 Hz (12/6 amps)
  • Electrical components meet NFPA requirements for Class II, Group-E. (ALUMINUM DUST). 71 dBA.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
ALH1-2 800 cfm portable downdraft table to collect ALUMINUM DUST:
  • 24" deep x 32" wide work surface at 36.25" height
  • 150 fpm downdraft velocity, with 12" tall aluminum side & back shields with aluminum grate panels
  • Contains (1) ULTRACLEAN-PLUS ™ cartridge filter (150 sq.ft.)
  • 1 Hp Class II, Group E motor. 230/460/3/60 Hz (12/6 amps)
  • Electrical components meet NFPA requirements for Class II, Group-E. (ALUMINUM DUST). 71 dBA
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
ALH1-3 800 cfm portable downdraft table to collect aluminum dust:
  • 24" deep x 32" wide work surface at 36.25" height
  • 150 fpm downdraft velocity, with 12" tall aluminum side & back shields with aluminum grate panels
  • Contains (1) ULTRACLEAN-PLUS ™ cartridge filter. (150 sq.ft.)
  • 1 Hp Class II, Group E motor. 5753/60 Hz (12/6 amps)
  • Electrical components meet NFPA requirements for Class II, Group-E. (ALUMINUM DUST). 71 dBA.
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Frequently bought together these options:


Part # Qty Description
ALH-1-EXAD External AD Module Filter Option for Standard ALH-1 Unit.
ALH-1-EXDOP External 95% DOP Filter Option for Standard ALH-1 Unit.
ALH-1-EXHE External 99.97% HEPA Filter Option for Standard ALH-1 Unit.
ALH-1-EXT HE/AD Kit using EXTERNAL HEPA and EXTERNAL AD options.

Part # Qty Description
ALH-1-BF3A Aluminum Enclosure, 36 High, Sides, Back & Top Option for Standard ALH-1 Unit.

Part # Qty Description
ALH-1-S-EXT External Silencer Option for Standard ALH-1 Unit.

Part # Qty Description
ALH-1-PG-6 0-6" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
2KT6-1760-ALH1 Table extension painted blue for ALH-1, full width with solid surface, 9" (230mm) deep.

Part # Qty Description
ALH-1-HP-3 1.5 Hp Hazardous Location, Class II, Grp E 208-208/460/3/60 Option for Standard ALH-1 Unit.

Part # Qty Description
2FR5-1001 Cartridge, AD, refillable with 1" (25mm) pre-filter pad & 1" (25mm) after-filter pad.
  • Holds 15 lbs. of charcoal
ALH-1-FIBER Fiberglass Bar Grate Option for Standard ALH-1 Unit
ALH-1-PG-5 0-5" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted

Part # Qty Description
1PN6-1749 Aluminum Grate Panels. Price per each (6 required for DTH800) DUSTPAK ALH-1, DUSTPAK ALH-2, DUSTPAK AL-6, DUSTPAK DTH-800, (9 required for DUSTPAK DTH-1700.)
2AF2-0011 2" (50mm) Polyester Frame & Pad. (18" x 24" x 2").
2AF9-0001 Adsorber module, flat, refillable. (18" x 24" x 2½").
  • Holds 18 lbs. of charcoal
  • Charcoal sold separately
7FJ9-5003 95% @ 0.3 microns DOP Filter for PCH/DCH/DTH/ALH units.
7FJ9-9003 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W 99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FR0-5020 OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
