08-006

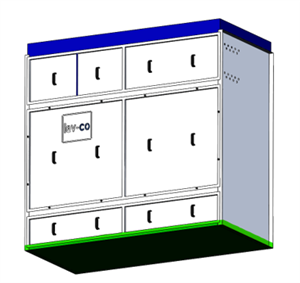

VOC2.0 Air Cleaner - Ducted Air Cleaner

The VOC2.0 industrial air cleaner units are designed to adsorb and remove VOCs and odours from industrial applications. It is typically used to treat gases released from painting operations and other odour and “Gas-Phase” contaminants.

Function:

VOC industrial air cleaner has the ability to store large amounts of adsorption media (Eg: activated carbon) is where this solution stands out.

The VOC2.0 air purifier allows for long DWELL times as required in many applications AND can be equipped with various adsorption media such as Activated Carbon, Potassium Permanganate, Zeolite, Porocel, Activated Bauxite, activated alumina and others.

This extended dwell time coupled with a wide range of adsorbents helps you design an air purifier VOC solution that is precise and complies with most air quality regulations.

Main Options Include:
  • Inlet Plenums
  • Casters
  • Hose with temp range up to 300°F (150°C)


  • NB: Lev-co strongly recommends using preventative maintenance and air quality assurance accessories such as Pressure gauges, Air quality monitors, Run-timers/counters, etc. Please review these options with your Lev-co SME for more information.

Construction:

The VOC2.0 filter system is comprised of a galvanized steel filter housing (epoxy painted upon request), a pre-filtering section, the main adsorption filter section and a fan section. Many optional accessories are available EG: Silencers, Fan termination kits, Controls, etc. The Pre-filtering section traps solid contaminants such as pigments, atmosphere dust, etc. and protects the Adsorption Media from becoming prematurely saturated. The pre-filters are easily exchanged through front access panels. The Main filter section houses the Gas-Phase Adsorption media. These gaseous emissions are adsorbed by the media, which is stored in re-fillable filter modules. The fan section comprises a double inlet belt-driven fan that provides the required flow and pressure needed to capture, convey, and draw the gases through the DEEP BED filter media. The filtered air is then exhausted from the VOC2.0 to the atmosphere or properly ventilated shop with the appropriate ACH. The motor is isolated from the airflow eliminating the need for explosion-proof motors. The fan wheel comes with 2 Non Ferrous contact plates to meet Type C spark-resistant construction. The inlet may be positioned: - on a grated floor to support a “down-Flow” or “Clean-to-less-clean” control method or a ducted inlet for use in “Local Exhaust ventilation” or “At-Source” systems. For more information on Lev-co's air purifiers for VOCs, see the "feature & Benefits" Section.

Key Buying Criteria:

The VOC2.0 - the ideal air purifier to remove VOCs

  • Large Adsorption capacity --> Longer dwell times
  • Wide range of units --> Ability to select the precise unit for the application
  • Pre-filters with the large surface area --> Keeps the adsorption media clean, more efficient and lasting longer
  • High static pressures --> Ability to overcome friction losses in LEV ducted systems
  • 3 3/32" ( 80mm) Deep Bed of Carbon --> Deeper than typical "V" banks
  • Refillable modules --> low cost / non-proprietary replacement media
  • Compact Design & High flowrate design--> Saves on floor space
  • 0.18 S Minimum contact time --> high degree of adsorption efficiency and VOC removal
  • Suitable For:

    Top 5 contaminants/processes/applications:

    • Organic Based Vapours (VOC's)
    • Body odour (Fitness clubs, Change Rooms, Bathrooms)
    • Paint Fumes (Spray Balms)
    • Art Supplies
    • Cannabis Odour
    Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

    IMPORTANT: Make sure to talk to an application engineer before purchasing.
    Part #
    Qty
    Description
    VOC2.0-5600
    VOC2.0 5590 CFM (9500 M3/H) max flow rate. Comes standard with the following :
  • 6 Prefilters
  • 6 refillable media holders
  • 617 lbs (280 kgs) Activated carbon filter for painting.
  • 4hp (3KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 5590 cfm (9500 m³/h) max flow rate.
  • 71 dBA
  • VOC2.0-7000
    VOC2.0 7062 CFM (12000 M3/H) max flow rate. Comes standard with the following :
  • 6 Prefilters
  • 6 refillable media holders
  • 617 lbs (280 kgs) Activated carbon filter for painting.
  • 5.4hp (4KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 7062 cfm (12000 m³/h) max flow rate.
  • 71 dBA
  • VOC2.0-9400
    VOC2.0 9416 CFM (16000 M3/H) max flow rate. Comes standard with the following :
  • 8 Prefilters
  • 8 refillable media holders
  • 838 lbs (380 kgs) Activated carbon filter for painting.
  • 7.4hp (5.5KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 9416 cfm (16000 m³/h) max flow rate.
  • 71 dBA
  • VOC2.0-11500
    VOC2.0 11475 CFM (19500 M3/H) max flow rate. Comes standard with the following :
  • 8 Prefilters
  • 8 refillable media holders
  • 838 lbs (380 kgs) Activated carbon filter for painting.
  • 10.1hp (7.5KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 11475 cfm (19500 m³/h) max flow rate.
  • 71 dBA
  • VOC2.0-13000
    VOC2.0 12947 CFM (22000 M3/H) max flow rate. Comes standard with the following :
  • 10 Prefilters
  • 10 refillable media holders
  • 1036 lbs (470 kgs) Activated carbon filter for painting.
  • 12.7hp (9.5KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 12947 cfm (22000 m³/h) max flow rate.
  • 73 dBA
  • VOC2.0-17000
    VOC2.0 17066 CFM (29000 M3/H) max flow rate. Comes standard with the following :
  • 10 Prefilters
  • 10 refillable media holders
  • 1036 lbs (470 kgs) Activated carbon filter for painting.
  • 14.8hp (11KW) TEFC premium & VFD duty motor, 3490rpm
  • 208-230-460V/3/60. or 575V/3/60
  • Fan 17066 cfm (29000 m³/h) max flow rate.
  • 73 dBA
  • Frequently bought together these options:

    Part #
    Qty
    Description
    VOC2.0-7000-IN-ST
    24" stand and inlet plenum. Welded source capture plenum with dual 14"D inlets
  • 24 Floor Stand
  • 14 D inlets
  • Part #
    Qty
    Description
    CASTER-HD-YLW-NON-SW
    MP Series Kingpin Free Medium Heavy Duty Caster. rigid 4 x 2 with Top thane vg wheel ball bearing 1000 lbs each
    CASTER-HD-YLW-SW
    MP Series Kingpin Free Medium Heavy Duty Caster, swivel 4 x 2 with Top thane vg wheel ball bearing 1000 lbs each with total brake – LOCK SWIVEL AND WHEEL.
    Part #
    Qty
    Description
    PT-GPH-14
    14" General Purpose Hose (sold per ft) This general service flexible duct is produced from a lightweight polyester fabric coated with neoprene. The coated fabric is interlocked with a galvanized external helix in order to produce a strong and reliable duct. This lightweight product offers exceptional flame and abrasion ASTM D 3889 (85a) resistance. It is ideal for general service dust collection, resistant to various chemicals, and suitable for a wide range of temperatures. This product is extremely flexible and exhibits excellent breaking and tear strength and can operate at an intermittent service temperature of 275° F (135° C) and a general temperature range of - 40° F to + 240° F (- 40° C to + 116° C). The neoprene base material surpasses flame resistance requirement of UL 94 V-0.
    Part #
    Qty
    Description
    SIL-14
    Silencer for P-Max series fan, 14" (350mm)
