Model Number

10-010

model_icon

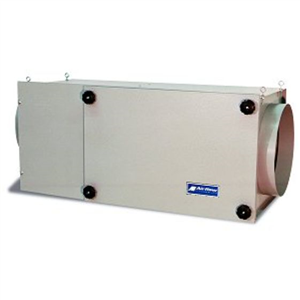

1500-D - Ducted Air Cleaner

The 1500-D ducted air cleaner features a flow rate of 1500 CFM, and is designed to remove dust, bacteria, pollen, and lint while maintaining low noise, low visibility, and high filter capacity and efficiency.

Function:

The 1500-D air cleaner features a 2” polyester pre-filter, 95% main filter that is 54 ft2, ½” charcoal after filter, and ODOR/EX deodorizer cartridge. The included fan features a ½HP, 115V, 9.9 amp, 2-speed motor, with a 2-speed switch.

The unit comes complete with 16” diameter inlet & outlet collars, wall switch & cover plate.

The 1500-D ducted air cleaner is completely self-contained, and can be mounted from either the wall or in the ceiling.

Main Options:
  • Filter Options
  • Pressure Gauges
  • Variable Frequency Drives

Construction:

  • 18 gauge painted steel cabinet
  • Ultra-Seal filter mounting system
  • Removable side access door to filters
  • 16" collar on both the inlet and outlet
  • Direct drive motor/blower wired to junction box on front of unit
  • 2 speed, remote wall switch
  • Cover plate
  • Furnished Eyebolts

Shipping Dimensions and Weight:

Main System Part # Height x Width x Depth Weight
MS1500-D-CV 25.5"H x 24.5"W x 49.5"D 224 lbs
ESMV-95 12"H x 24"W x 24"D 13 lbs
ESMV-75 14"H x 24"W x 24"D 5 lbs
7FH9-9712 21"H x 13"W x 21"D 20 lbs
7FB9-0722 8"H x 24"W x 24"D 4 lbs
1500-D 25.5"H x 24.5"W x 49.5"D 224 lbs

Key Buying Criteria:

  • Complete, Above-ceiling Unit: Installs completely concealed; quiet operation.
  • Direct-drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
  • Non-electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • High-Efficiency Filter Media: Provides maximum collection and filtration effectiveness.
  • ODOR/EX Cartridge Filter: Replaceable unit adjustable to varying environments to provide room deodorization as well as odour control.
  • Disposable/cleanable Media Filters: Vacuum or replace when dirty; no tools needed.
  • Commercial Duty Cabinet With Textured Epoxy Finish: Durable protection, aesthetic appeal.
  • Remote Wall Switch: 2-speed lighted switch.

Suitable For:

Top 5 contaminants/processes/applications:

  • Commercial Facilities
  • Offices
  • Schools
  • Retirement Homes
  • Warehouses
Don't see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
Part #
Qty
Description
1500-D
1500 CFM above ceiling air cleaner. Includes 2” polyester prefilter 95% main filter (54ft²) ½” charcoal after-filter ODOR/EX deodorizer cartridge ½ HP motor 115/1/60Hz (9.9 amps) 2-speed switch and 16” diameter inlet and outlet collars.
MS1500-D-CV
1500 CFM above ceiling air cleaner. Includes 2” polyester prefilter 95% main filter (54ft²) ½” charcoal after-filter ODOR/EX deodorizer cartridge ½ HP motor 115/1/60Hz (9.9 amps) 2-speed switch and 16” diameter inlet and outlet collars.
Part #
Qty
Description
2AF9-0003
Adsorber v-bank module.
2AZ2-0001
Polyester Prefilter/After filter
7CH3-7001-BOX
ODOR/EX - Quantity of 12. Price per each.
7CH3-7001-EACH
ODOR/EX cartridge. Price per each.
7FB9-0722
95% Bag Filter-Standard for the 1500-D and 1500-C Filter Systems Net Dimensions L21 W20 H20 6 bags Net Dimensions L21 W20 H20 6 bags
7FC5-0701
1/2 Charcoal Filter
7FC7-5702
2 Charcoal Filter
7FH9-9712
99.97% DOP HEPA
7RK31001
Mounting Clip for ODOR/EX with self adhesive strip.
ESMV-75
75% CLEANABLE extended surface main replacement filter
ESMV-95
95% CLEANABLE extended surface main replacement filter

Frequently bought together these options:

Part #
Qty
Description
1500-D-2C
2 charcoal filter in place of 1/2 charcoal after-filter.
1500-D-AD
Charcoal adsorber option: Includes 2 polyester prefilter, 95% short bag (24 sq.ft.), with (2) refillable adsorber modules (18 lbs. capacity each) and (1) 2 polyester after-filter. Order charcoal separately. (Adds 20 lbs. to ship weight).
1500-D-HE
HEPA filter option: Includes 2" polyester prefilter, 95% short bag filter (24 sq.ft.) and 99.97% HEPA, rated at 1000 cfm.
FO1500-D-2C-CV
2 charcoal filter in place of 1/2 charcoal after-filter.
FO1500-D-AD-CV
Charcoal adsorber option: Includes 2 polyester prefilter, 95% short bag (24 sq.ft.), with (2) refillable adsorber modules (18 lbs. capacity each) and (1) 2 polyester after-filter. Order charcoal separately. (Adds 20 lbs. to ship weight).
FO1500-D-HE-CV
HEPA filter option: Includes 2" polyester prefilter, 95% short bag filter (24 sq.ft.) and 99.97% HEPA, rated at 1000 cfm.
Part #
Qty
Description
1500D-PG-3
3" Pressure Gauge Option for Standard 1500-D Unit
LEV-MC-PG-5
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-5 pressure gauge. 3/16 inside diameter tubing ordered separately.
PG-10
Pressure Gauge - complete with Wall, Ceiling or table mounting bracket and 0-10 pressure gauge. 3/16 inside diameter tubing ordered separately.
PM1500D-PG-3-CV
3" Pressure Gauge Option for Standard 1500-D Unit
Part #
Qty
Description
VFD-EZ-BENCH
Variable Frequency Drive for EZ Bench 1/2 HP 115/1/60
VFD-KIT-1HP-115-230-3
1HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 1 HP Motor
  • Able to support HP lower than 1HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
VFD-KIT-2HP-115-230-3
2HP 120-240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 2 HP Motor
  • Able to support lower HP between 1HP - 2HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120 or 220/1/60 V system with a VFD
VFD-KIT-3HP-220-230-3
3HP 240V Hybrid VFD 1 Phase In, 230V 3 Phase Output 60Hz complete with:
  • VFD NEMA 4
  • 3 HP Motor
  • Able to support lower HP between 2HP - 3HP
  • Wiring
  • Labor
  • Re-certification
  • PLEASE NOTE: this kit is only required when upgrading a 120V system with a VFD
