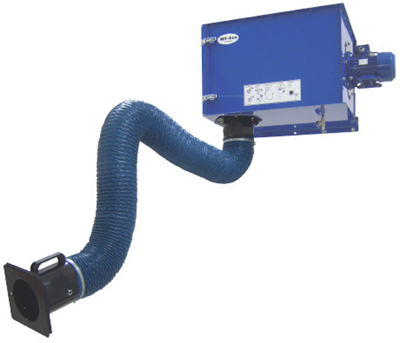

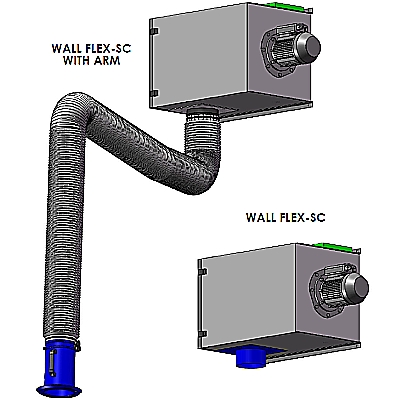

Wall Flex-Self Cleaning - 1400 CFM

Wall Flex-Self Cleaning (WF-SC) - A Single/Dual Work-Station Filter Unit that includes a manual Jet-PULSE® filter system. With a max flow rate of 1400 CFM.
FUNCTION
Once the contaminant is captured and filtered by the cartridge, it is easily 'reverse-pulsed' off the filter with compressed air. This allows for cost-effective filter maintenance and ensures constant capture at the source.

Access to the "maintenance-free" replaceable cartridge filter is easy, and changing it takes just a couple of minutes.

Available with:
  • Filter Options
  • Fan / Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Option
  • Adapters
CONSTRUCTION
  • 10/12/14 gauge powder-coated steel sheet
  • Comes complete with an integrated wall bracket and 6.5" (160mm) connection flange.
  • 115V/1/60 1.5HP fan
  • Free-blowing 1400 CFM Fan complete with Motor starter

  • Please note: extraction arms longer than 11' are required to be mounted to a column or wall and not to the underside of the filter unit. Additional sheet metal fittings and/or hoses and/or hose clamps may be required.
KEY CRITERA
The features of this product include:
  • Complete, self-contained unit with a Jet-Pulse, self cleaning filter system
  • Can be configured to suit many applications such as light dust, welding fumes, gases, vapours, and fine particulates
  • Optional HEPA and adsorption filters available
  • Spark proof fan assemblies and explosion proof motors
  • The unit comes with the option of the FLEXI-I or FLEXI-II extraction arm which supports either a 6.5" (160mm)Ø hose or 8" (200mm)Ø hose respectively.
  • Superior 5 to 10ft long FLEXI Extraction Arm c/w an advanced design 'Parallelogram' counter-balancing system
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Gases
  • VOCs
  • Welding Fumes
  • Silica Dust
  • Metal Air Contaminants
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

6.33'' (160mm)Ø - Extraction Arms - Arm only
Part #
Description
EX-ARM-160-1500
5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-2000
7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-3000
10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-4000
14' (4000mm) Flexi-l Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-5000
17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
P-006-LC
5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-007-LC
7' (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-008-LC
10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket for LOW CEILING MOUNT
P-009-LC-4-2.5-2.5
9' (2700mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-009-LC-4-3.5-3.5
11' (3300mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-009-LC-4-5-5
14' (4200mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-010-LC-7-2.5-2.5
12' (3600mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-010-LC-7-3.5-3.5
14' (4200mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-010-LC-7-5-5
17' (5000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT

Part #
Description
WF-SCF-7
Wall Flex “Self-Cleaning” complete with 7’ Extraction Arm 6.33" (160mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-10
Wall Flex “Self-Cleaning” complete with 10’ Extraction Arm 6.33" (160mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-14
Wall Flex “Self-Cleaning” complete with 14’ Extraction Arm 6.33" (160mm)Ø.
  • Includes motor, switch, overload protection, cord, & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-17
Wall Flex “Self-Cleaning” complete with 17’ Extraction Arm 6.33" (160mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-7-8
Wall Flex “Self-Cleaning” complete with 7’ Extraction Arm 8" (200mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-10-8
Wall Flex “Self-Cleaning” complete with 10’ Extraction Arm 8" (200mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-14-8
Wall Flex “Self-Cleaning” complete with 14’ Extraction Arm 8" (200mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor
WF-SCF-17-8
Wall Flex “Self-Cleaning” complete with 17’ Extraction Arm 8" (200mm)Ø
  • Includes motor, switch, overload protection, cord & plug
  • Rated at 600CFM at 7" TSP, 1.5HP
  • 115/1/60 motor

8" (200mm)Ø - Extraction Arms - Arm only
Part #
Description
EX-ARM-200-2000
7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-3000
10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-4000
14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-5000
17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
P-145-H
13' 5" (4115mm) Flexi-II Extraction Arm 8" (200mm)Ø For use in horizontal position in applications such as off the top of a Wall Flex or on a Mobi-Pulse with Chimney.
P-146-H
16' 5" (5000mm) Flexi-II Extraction Arm 8" (200mm)Ø.For use in horizontal position in applications such as off the top of a Wall Flex or on a Mobi-Pulse with Chimney.
P-142-LC
5’ (1500mm) Flexi-l Extraction Arm 8" (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-143-LC
7’ (2000mm) Flexi-l Extraction Arm 8" (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-144-LC
10' (3000mm) Flexi-I Extraction Arm 8" (200mm). Complete with damper & wall/fan bracket for LOW CEILING MOUNT
P-145-LC-4-2.5-2.5
9’ (2700mm) Flexi-l Extraction Arm 8" (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-145-LC-4-3.5-3.5
11' (3300mm) Flexi-l Extraction Arm 8" (200mm)Ø Complete with hose & hood with damper for LOW CEILING MOUNT
P-145-LC-4-5-5
14' (4200mm) Flexi-l Extraction Arm 8” (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-146-LC-7-2.5-2.5
12' (3600mm) Flexi-l Extraction Arm 8” (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-146-LC-7-3.5-3.5
14' (4200mm) Flexi-l Extraction Arm 8” (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT
P-146-LC-7-5-5
17' (5100mm) Flexi-l Extraction Arm 8” (200mm)Ø. Complete with hose & hood with damper for LOW CEILING MOUNT

Part #
Description
WF-SCF-HEPA
HEPA Filter complete with HEPA Filter Holder.
CHAR-WFSC
Charcoal filter for Wall Flex Self Cleaning.
  • Complete with 30 lbs. of activated charcoal. (Other Adsorption medias are available as options)
When used in conjunction with a HEPA filter this filter is mounted between the HEPA filter & the main filter housing.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
P-551
Wall Flex with built in jet-pulse cleaning system. Rated at 600CFM at 7" (175mm) TSP, 1.5HP 115/1/60 motor.
  • Complete with motor, switch, overload protection, cord & plug (arm not included)

Part #
Description
P-086-WF-SCF
Double Arm Adapter, which permits (2) - 6.33” (160mm)Ø Flexi Arms to be mounted on Wall-Flex self-cleaning.

Part #
Description
WF-ECO-SILENCER
Silencer for WF SC.
WF-ECO-SILENCER-HEPA
Silencer for WF SC when using a HEPA filter.

Part #
Description
FB-WF/WFSC
Telescoping floor mounting bracket for Wall-Flex & -Flex Self Cleaning.

Part #
Description
Rigid Duct-WF-DMF
Rigid ductwork for Dual Miniflex arms onto a Wall Flex unit.

Part #
Description
WFSC-1.5HP-115-230/1/60
Motor upgrade to 1.5HP @ 115V-230/1/60Hz.
WFSC-1.5HP-230-460
Motor upgrade to 1.5HP @ 230-460V/3/60.
WFSC-1.5HP-575V
Motor upgrade to 1.5HP @ 575V/3/60.

Part #
Description
LEV-PG-HOLDER-R0
Pressure Gauge holder to secure pressure gauge on unit. Compatible with magnahelic and different pressure gauges & made of 16 GA Galvanized Steel
PG-6
0-6" Magnahelic dial pressure gauge. Surface mounted
WFHOP-00-R0-1
Hopper for Wall Flex.
WF-ECO-CON-KIT-6
Wall Flex Eco 6'' (150mm)Ø extraction arm connection kit. Must use with Flexi I extraction arms 4m in length & longer
WF-ECO-CON-KIT-8
Wall Flex Eco 8" (200mm)Ø Extraction Arm connection kit. Must use with Flexi II extraction arms 4m in length and longer

Part #
Description
WF-SCF-CM
Refillable Carbon Filter without carbon, (35 lbs of carbon fits) complete with door clips & rivets.
SCF-541
Main Filter for ''Self Cleaning" filter units (RF-SCF, CF-ECO, Sledge-hammer, MF-ECO & WF-SCF).
P-553
Hepa or carbon filter holder kit. Includes mounting hardware but does not include filter
P-554-M
Hepa Replacement Metal case Filter for Wall Flex Eco or Wall Flex self cleaning WF-SCF.
P-554-W
Hepa Replacement Wood case Filter for Wall Flex Eco or Wall Flex self cleaning WF-SCF.
