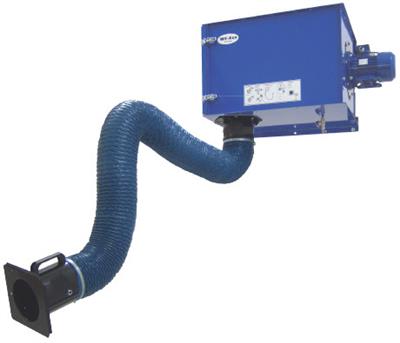

WFSC - Weld Fume, Dusts & Smoke - Self cleaning filter system built in - 300 to 800 CFM - 6” Ø inlet

Wall-mounted mechanical filter unit. The unit comes standard complete with Vibra-Pulse cleaning system, washable filter, hopper and 5 gallon drum. Designed for use with extraction arms, and/or ducted applications.600 CFM @ 4" (100mm) w.g.
FUNCTION
Wall-mounted mechanical filter unit. The unit comes standard complete with Vibra-Pulse cleaning system, washable filter, hopper and 5 gallon drum. Designed for use with extraction arms, and/or ducted applications.600 CFM @ 4" (100mm) w.g.
CONSTRUCTION
Filter box and hopper made of powder coated steel sheet. Comes complete with an integrated wall bracket, P-Max direct mount fan. (Motor starter not included.)
Please note: extraction arms longer than 11' are required to be mounted to a column or wall and not to the underside of the filter unit. Additional sheet metal fittings and/or hoses and/or hose clamps may be required.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
WFHC-1
Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 115/1/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with 5 gallon dust container
WFHC-2
Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 208-230/460//3/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper with 5 gallon dust container
WFHC-3
Wall Flex high efficiency filtration system complete with:
  • 2 HP direct mount P-Max fan 575-600/3/60 TEFC motor
  • Manual Vibra-Pulse cleaning system
  • Hopper, 5 gallon dust container

6.33'' (160mm)Ø - Extraction Arms - Arm only
Part #
Description
EX-ARM-160-1500
5' (1500mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-2000
7’ (2000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket
EX-ARM-160-3000
10' (3000mm) Flexi-I Extraction Arm 6.33" (160mm)Ø Complete with damper & wall/fan bracket

Part #
Description
P-544-K
99.97% Hepa After Filter Kit For WF-SCF models.

8" (200mm)Ø - Extraction Arms - Arm only
Part #
Description
EX-ARM-200-2000
7' (2000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-3000
10' (3000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-4000
14' (4000mm) Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
EX-ARM-200-5000
17' (5000mm)Flexi-II Extraction Arm 8” (200mm)Ø Complete with damper & wall/fan bracket
FREQUENTLY BOUGHT TOGETHER

Part #
Description
P-160
80/20 Cell Polyester blended replacement filter cartridge for standard Roll-Flex units.
  • This filter is ROUND for units purchased BEFORE Dec 2013, more recent units require P-537 rectangular filter
  • Please refer to Serial label for replacement filters for all units purchased after July 15, 2021
P-160-PTFE
P-160 with PTFE Media Teflon.
