Extraction Arms

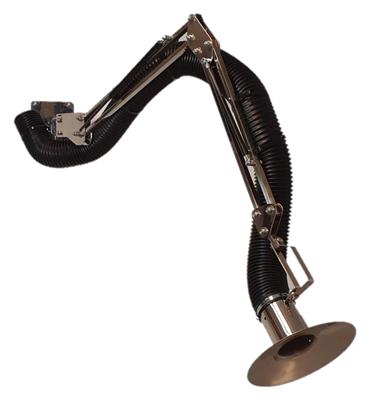

SUPER-MAX - Ø 5''/ 6.5'' & 8''

Get Pricing Get Pricing

Stainless Steel Extraction arms with wall bracket. Available lengths include 7', 10', or 14’. Duct diameter range includes 5'', 6.5", and 8''. Airflow rates are 300CFM for 5'', 650CFM for 6.5'', and 1000CFM for 8''.

FUNCTION

Parallelogram Design: Externally mounted support arms minimize airflow resistance throughout the extraction arm, while the hydraulically suspended parallelogram design guarantees smooth maneuverability of the hood, ensuring optimal stability in all positions.

The system features a robust steel hood, engineered to withstand sparks, chemicals, and heat, and includes an integrated adjustable damper. The hose is designed with a smooth interior to enhance airflow efficiency and provide exceptional durability.

Adapted for central or individual extraction fan.

CONSTRUCTION

Rigid stainless steel tubes
Flexible hose
4-6 friction release external joints
Swivel base joint/seal
High efficiency stainless steel bell hood with integral 360° handle
Flameproof PVC hose with internal steel spiral for long-lasting durability
Steel hood with combined universal/spinning-joint

All parts are laser cut for maximum precision.

KEY CRITERA

Nothing in the hose to disturb the airflow
Better suction for a given fan size
No dirty support arms and friction joints
Lower noise level

SUITABLE FOR

Top 5 contaminants/processes/applications:

Welding Smoke
Food & Pharma Dust
Paint Fumes from spray balms
Prosthetic Dust
Contaminants from Dental Processes

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BASE MODELS, OPTIONS & ACCESSORIES

8" (200mm)Ø - Extraction Arm Kits - Arm/Fan/Switch

8"Ø - Extraction Arm Kit - Arm/Fan/Switch

Part #

Description

EAF-8-10

10’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-10-ND

10’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

EAF-8-14

14’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-14-ND

14’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

EAF-8-17

17’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-17-ND

17’ Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug.

EAF-8-20

20’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-20-ND

20’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-24

24’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-24-ND

24’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-27

27’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-27-ND

27’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-30

30’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-30-ND

30’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-37

37’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-37-ND

37’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan & Switch & Plug

EAF-8-40

40’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-40-ND

40’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-44

44’ Extraction Arm, 8" (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-44-ND

44’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan, Switch & Plug

EAF-8-7

7’ Extraction Arm, 8” (200mm)Ø. Complete with 1.5 HP Fan & Install Kit

EAF-8-7-ND

7' Extraction Arm, 8” (200mm)Ø.Complete with 1.5 HP Fan, Switch & Plug

8" (200mm)Ø - Extraction Arms - Arm only

Part #

Description

EX-ARM-160-9000

30.5' Super-Flex Arm, complete with 3m (14')L Horizontal Arm & 5m (16.5')L Extractor Arm.

Hood with ring handle & built-in damper
Flame proof PVC hose 6.33" (160mm)Ø with internal steel spiral
Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included

FAN AND FAN BRACKET ORDERED SEPERATELY

EX-ARM-200-6000

Super-Flex II© 2m (6.7')L Horizontal Arm & 4m (13.5')L Extractor Arm.

Hood with ring handle
Damper not included
Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included

FAN AND FAN BRACKET ORDERED SEPERATELY

EX-ARM-200-7000

Super-Flex II© 2m (6.7')L Horizontal Arm & 5m (16.5')L Extractor Arm.

Hood with ring handle
Damper not included
Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included

FAN AND FAN BRACKET ORDERED SEPERATELY

EX-ARM-200-8000

Super-Flex II© 3m (10')L Horizontal Arm & 5m (16.5')L Extractor Arm.

Hood with ring handle
Damper not included
Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
Wall bracket, horizontal arm with ball bearings, extractor arm, hose & hood included

FAN AND FAN BRACKET ORDERED SEPERATELY

EX-ARM-200-9000

Super-Flex © 4m (14')L Horizontal Arm & 5m (17')L Extractor Arm, complete with:

Hood with ring handle (damper NOT included)
Flame proof PVC hose 8" (200mm)Ø with internal steel spiral
Wall bracket horizontal arm with ball bearings, extractor arm, hose, & hood

FREQUENTLY BOUGHT TOGETHER

Main System 6.5" (165mm)

Part #

Description

ATEX-ARM-HSTD-160-1500

1.5m (0.25+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-HSTD-160-2000

1.5m (0.5+1.5m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-HSTD-160-2200

2m (0.25+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-HSTD-160-2500

2m (0.5+2m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-HSTD-160-3000

3m (0.5+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-HSTD-160-4000

4m (0.5+0.6+3m) - 6.33" (160mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

Main System 4.5" (115mm)

Part #

Description

ATEX-ARM-H67-160-1500

1.75m (0.25+1.5m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, 150° angle hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

ATEX-ARM-H67-160-3000

3m (0.5+3m) - 4.5" (110mm)Ø mirror polished, acidproof stainless steel arm with sealed tube ends.

Includes: wall bracket, hose, hood, & external hydraulically suspended parallelogram arm
Free flow in the hose
Incredibly easy to move & stays in position
Can easily be demounted & sterilized in an Autoclave

Extension Hood (Up to 36" in diameter)

Part #

Description

RELH-6-24-EXT

Conical Bell Mouth hood extension for 6" (150mm) hoods.

24" (610mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

RELH-6-36-EXT

Conical Bell Mouth hood extension for 6" (150mm) hoods.

36" (915mm)Ø receiving end
16G, Aluminum
Bell Mouth Verison

RELH-8-24-EXT

Conical Bell Mouth hood extension for 8" (200mm) hoods.

24" (610mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

RELH-8-36-EXT

Conical Bell Mouth hood extension for 8" (200mm) hoods.

36" (915mm)Ø receiving end
16G, Aluminum
Bell Mouth Version

Hood Options

Part #

Description

2AH0-9001

Hood, spun aluminum, power-coated black.

Direct Mount Fans - 0.5 HP - (Motor Starter NOT included)

Part #

Description

DSIC** P-147-2

P-Max direct drive fan 0.5 HP 115-230V/1/60.

P-147-1

P-Max direct drive fan 0.5 HP 115-230V/1/60

100% weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

P-147-2

P-Max direct drive fan 0.5 HP 208-230-460V/3/60.

P-147-3

P-Max direct drive fan 0.5 HP 575V/3/60.

Direct Mount Fans - 1.0 HP - (Motor Starter NOT Included)

Part #

Description

M-P-149-2

P-Max© direct drive fan 1 HP 208-230V/460V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

M-P-149-3

P-Max© direct drive fan 1 HP 575-600V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

P-149-2

P-Max© direct drive fan 1 HP 208-230V/460V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

P-149-3

P-Max© direct drive fan 1 HP 575-600V/3/60.

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

Direct Mount Fans - 1.5 HP - (Motor Starter NOT included)

Part #

Description

M-P-152-1

P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)

100% Weather-proof and can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

M-P-152-3

P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
Please specify 1.5 or 2 HP
If you need 2HP, please use P-152-3-2HP

EX-FAN-1.5-115/230

P-Max© direct drive fan 1.5 HP 115V/230V/1/60 (use P-152-2HP-1 when the TSP is less than 4 w.g.)

100% Weather-proof and can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge

EX-FAN-1.5-3-575

P-Max© direct drive fan 1.5 HP 575-600V/3/60 (use P-152-2HP-3 when the TSP is less than 4 w.g.)

100% Weather-proof & can be mounted outdoors/rooftop
Fans are able to be rotated at 45° increments to allow for angular up/down discharge.
Please specify 1.5 or 2 HP
If you need 2HP, please use P-152-3-2HP

P-154-1.5HP-1

**DO NOT USE**P-Max© direct drive fan 1.5 HP 115-230V/1/60 Note: Must not be used below 8" SP 100% Weather-proof and can me mounted outdoors/rooftop. Fans are able to be rotated at 45deg increments to allow for angular up/down discharge"

Fan controllers for remote switching

Part #

Description

P-025-120S-120V-1PH-2.0 HP

Energy Saver E- Man© 115V/1/60. Fan Motor control station. Rated up to 2 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

P-025-120S-208/230V-3PH-7.5 HP

Energy Saver E- Man© 208-230V/3/60. Fan Motor control station. Rated up to 7.5 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

P-025-120S-240V-1PH-3HP

Energy Saver E- Man© 240V/1/60. Fan Motor control station. Rated up to 3 HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

P-025-120S-575V-3PH-20HP

Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. HP. Permits start-stop of the fan / Dustcollector from a Remote Switch/control. Remote mounted switches must be ordered separately but it is best to interlock the fan with the associate process. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 120V AC transformer for powering the dust collectors sequencer.

P-025-24S-230V-1PH-0.5HP

Energy Saver E- Man© 230V/1/60. Fan Motor control station for 0.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-230V-3PH-7.5 HP

Energy Saver E- Man© 230V/3/60. Fan Motor control station for 7.5 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-460V-3PH-20HP

Energy Saver E- Man© 460V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-575V-3PH-20HP

Energy Saver E- Man© 575V/3/60. Fan Motor control station. Rated up to 20 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

P-025-24S-575V-3PH-30HP

Energy Saver E- Man© 575V/3/60. Fan Motor control station. Panel Mounted "Hand/Off/Auto" switch and Pilot light. Rated up to 30 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately #EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...#. Comes complete with relevant Motor overload. Please specify Motor HP when ordering ______. Also includes a 50 VA 24V AC transformer for powering devices such as halogen Lights.

Manual Motor Starter

Part #

Description

P-024-1

115V/1/60 Fan Motor control station up to 1.5 HP - Permits manual start-stop of the fan. Comes complete with:

Motor overload protection on/off 14A control power cord & plug
Overload rating according to the FLA of the motor
Field assembly & installation required

P-024-2
