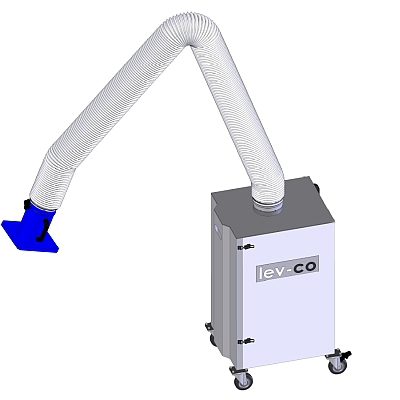

ROLL-FLEX (PC Mobi-Flex) Portable Fume Extractor - 1400 CFM

The Roll-Flex is a "Plug and Play" option that uses an extraction arm with flexibility and wide range of motion. The compact design of the Roll-Flex unit has simple filter removal and an easy to move dust tray with a small shop footprint. Typical flow rates of 700 to 1,400 CFM.

Best suited for the following applications:

• Training and Testing facilities and schools
• Light to Medium welding applications
• MRO-Maintenance repair and overhaul
• "Rework" applications

Options Available:

• Motor Voltage Selection
• Hood and Nozzle Accessories
• Filter Options
• Variable Frequency Drives

• Powder-coated painted steel
• Fan 1.1 kW (1.5HP), 120 V/1/60, 2400 m³/hr.
• Comes standard with (1) washable filter (P-537)
• ON/OFF starter
• 15', 14g cable and plug
• 7’ or 10’ extraction arm with a 6.33” (160mm)Ø
• (4) easy to install casters

• 115 Volt Power: Capable of connecting to any standard circuit while optimizing overall flow rate and usage throughout the facility. (3-Phase voltage optional)
• Small Footprint: Optimizes space utilization within the production area and facilitates rapid operator positioning (23" x 19").
• Complete, Pre-Engineered Unit: Ensures guaranteed suitability. Versatile, user-friendly, and requires no installation..
• Spark Proof Direct-Drive Blower: Provides higher static pressure, extended filter lifespan, and enhanced reliability, with no replaceable wear components such as pulleys or belts.
• "Secure Seal" Filter Mounting: Eliminates contaminant bypass around filters.
• Efficient Source Capture: 99.5% filter efficiency produces cleaner air.
• Fire/Melt-proof Metal Construction: Constructed without plastic components, minimizing costly replacement expenses.
• Integrated Spark Deflector: Minimizes fire risk in high-sparking applications.
• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
• Low Profile Cabinet: Designed with a low center of gravity for enhanced maneuverability and optimal arm positioning.
• Cleanable Main Filter: Reduces operating costs.

Top 5 contaminants/processes/applications:

• Fine Wood Dust
• Welding Fumes
• Grinding Dust
• New Construction Dust

Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
