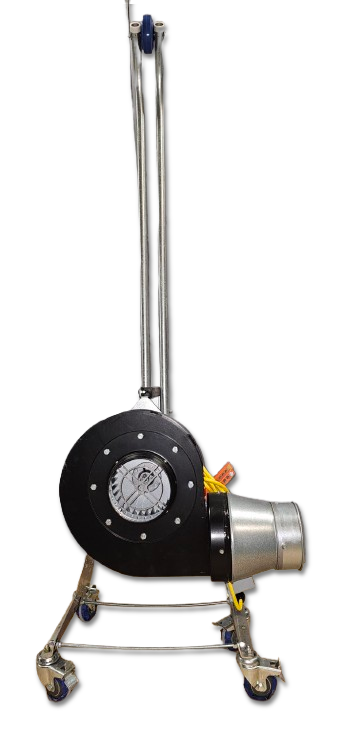

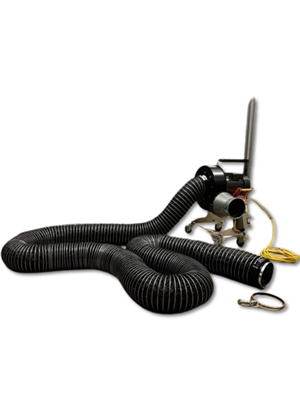

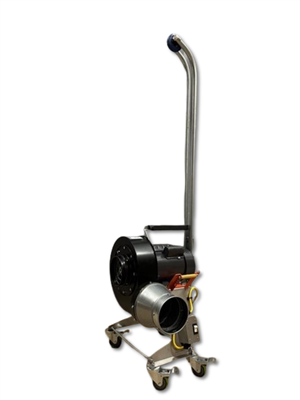

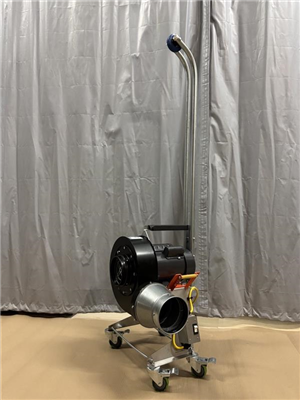

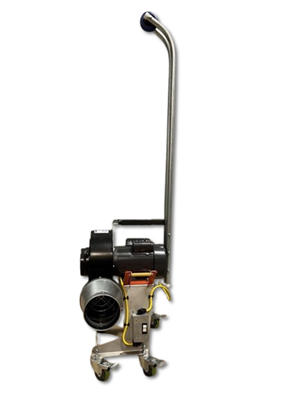

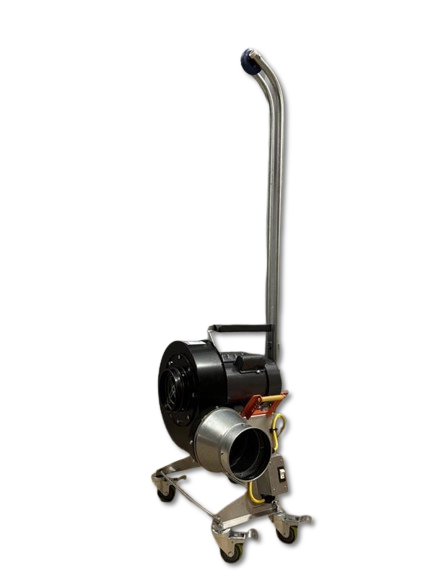

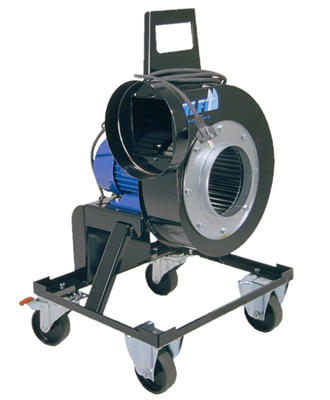

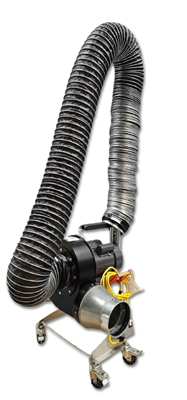

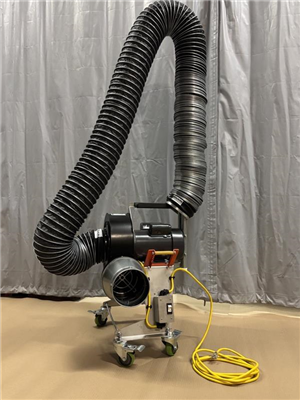

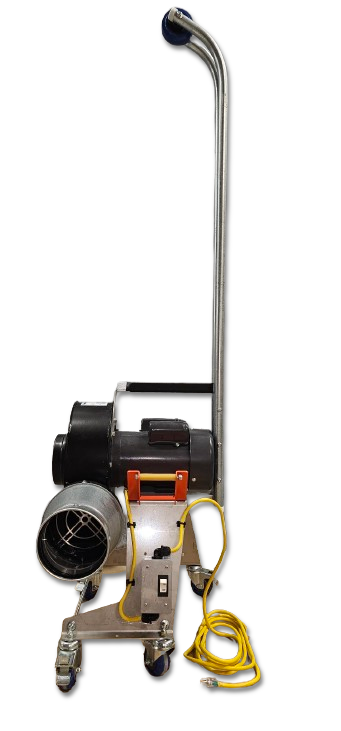

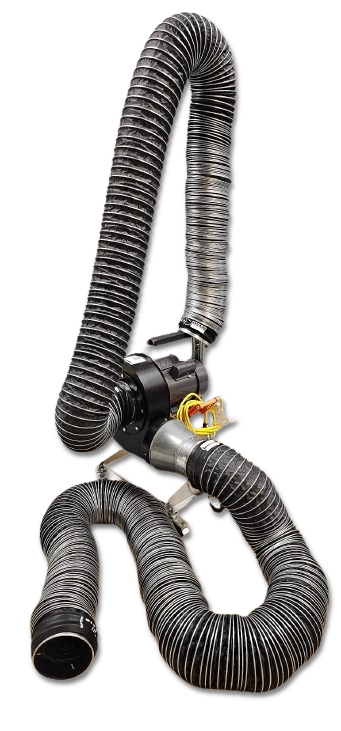

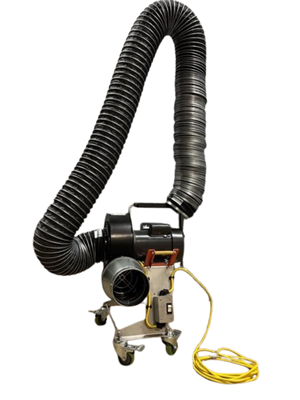

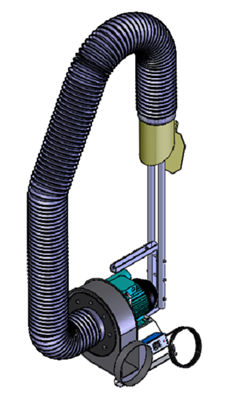

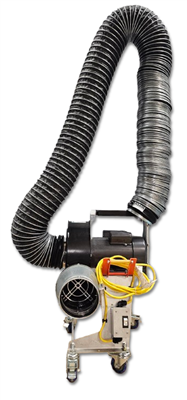

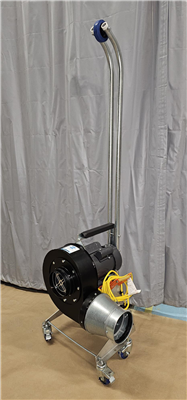

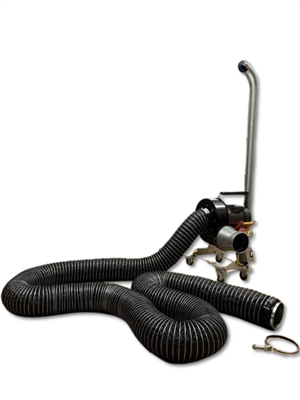

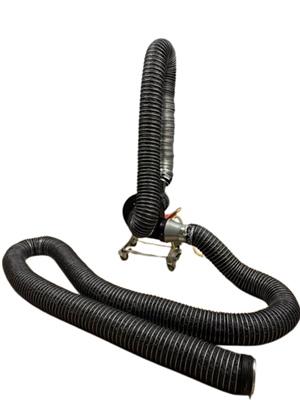

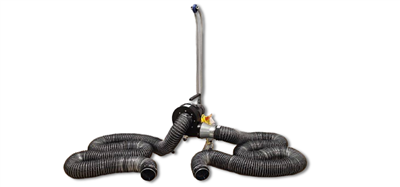

Portable P-Max Fan - 1500 CFM

P-Max© "Portable Local Exhaust" fans are an excellent portable solution where a fixed mounted system is not possible. Perfect for capture at source solutions and easy storage.
FUNCTION
The Portable P-Max Fan allows you to extract fumes on any side of the vehicle and is designed with a compact, easy-to-move solution in mind. Ideal for applications such as service stations, dealership garages, and maintenance facilities.

This Fan is designed specifically for "Medium Pressure" applications where the fan must be able to overcome the air resistance created when drawing contaminants through hoses. This unit has a typical flow rate between 600 CFM and 1500 CFM.

Main options include:
  • Low Temperature Hose: suitable for temperatures up to 300º F
  • Nozzle Accessories
  • Variable Frequency Drives
  • Wheel Kits

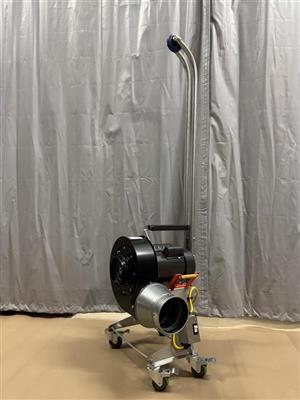

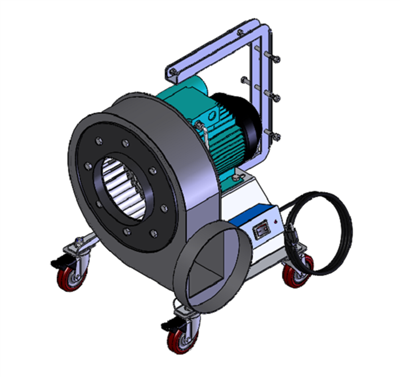

CONSTRUCTION
  • Fan and motor assembly
  • Inlet and outlet flanges for hose connection
  • Mounting bracket/base
  • Lifting handle
  • Motor switch, overload, cord and/or plug
KEY CRITERA
  • All-In-One: The whole assembly has the ability to store everything related to the unit, making teardown and setup times much shorter, as well as taking up less storage space
  • Compact: Very compact, and able to fit into tight/congested areas to provide extraction
  • Modular: Standard unit can be easily retrofitted to an existing system, which is cost effective
  • 115 Volt: This unit can be plugged in anywhere, reducing setup time, and reducing installation costs
  • Weatherproof: This unit is rated for use outdoors without the risk of uv deterioration, and with a fully sealed direct-drive motor, the possibility for condensation to corrupt the motor is eliminated
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Car Exhaust Fumes
  • Diesel Exhaust Fumes
  • Welding Fumes
  • Light Dust
  • Smoke
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
LPF-P-149
Portable P-149 Fan complete with 1 HP 115/1/60 TEFC motor, 6" (150mm)Ø inlet connection, & 8" (200mm)Ø outlet connection. Includes:
  • High Pressure Fan
  • TEFC Motor
  • Motor Starter and Overload protection
  • 15' Power cord
  • Mounting Bracket
  • Lifting Handle
  • Not included in base model: Caster Kit, Hose
LPF-P-152
Portable P-149 Fan complete with 1.5 HP 115/1/60 TEFC motor, 6" (150mm)Ø inlet connection, & 8" (200mm)Ø outlet connection. Includes:
  • High Pressure Fan
  • TEFC Motor
  • Motor Starter and Overload protection
  • 15' Power cord
  • Mounting Bracket
  • Lifting Handle
  • Not included in base model: Caster Kit, Hose

Part #
Description
PG-10
Pressure Gauge - complete with Wall, Ceiling, or Table Mounting Bracket & 0-10" pressure gauge. 3/16 inside diameter tubing ordered separately.

Part #
Description
P-025-12S-575V-3PH-10HP
Energy Saver E- Man© 575V/3/60. Fan Motor control station for 10 HP. Permits automatic start-stop of the fan from the extractor arm hood, hose reel or other device with Remote Switch. Remote mounted switches must be ordered separately (EG: LS-12 - Hood mounted Switch, MS-12 Hose reels...). Comes complete with relevant Motor overload. Also includes a 50 VA 12V AC transformer for powering devices such as halogen Lights.
FREQUENTLY BOUGHT TOGETHER

Part #
Description
2PLY-GPH-10
10" (250mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-4
4" (100mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
2PLY-GPH-6
6" (150mm)Ø 2-PLY Neoprene coated Polyester fabric with encapsulated wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of -40°F - 275°F
  • Price per foot (25' length minimum)
GPH-3
3" (75mm)Ø Flexible polyester, neoprene coated with wire.
  • Very good for low temperature vehicle exhaust applications
  • Temperature range of 60° F - 275° F, intermittent to +300° F
  • Price per foot (25' length minimum)
GPH-4
4" (100mm)Ø Polyester fabric, general purpose hose. Neoprene coated single ply with wire reinforcement.
  • More durable than TPR film hoses
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-5
5" (125mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)
GPH-6
6" (150mm)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F
  • Price per foot (25' length minimum)
GPH-8
8" (200m)Ø Polyester fabric, neoprene coated single ply with wire reinforcement.
  • Excellent general purpose hose, somewhat more durable than TPR film hoses
  • Very good for low temp vehicle exhaust applications
  • Temp range of 60°F - 275°F, intermittent to +300°F
  • Price per foot (25' length minimum)

Part #
Description
PT-SFH-3
Silicone fiberglass hose 3" (50mm)Ø 500°F continuous 600°F intermediate - not suitable for hose reels - Sold per ft. 25ft min.
PT-SFH-4
Silicone fiberglass hose 4" (100mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-5
Silicone fiberglass hose 5" (125mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.
PT-SFH-6
Silicone fiberglass hose 6" (150mm)Ø, not suitable for hose reels - Sold per ft, 25ft min.

Part #
Description
WYE-HT-644-D
WYE adaptor kit containing:
  • (2) 4" (100mm)Ø extension hoses
  • 4' (1.2m) of 600° hose
  • (2) nozzles WITH DAMPERS complete with chain, hook, & suction cup
Please note: This kit can connect to any existing 6" (150mm) hose OR "Quick-connect" to any Lev-co 6" (150mm) Nozzle OR Extraction arm hood.
YA400
4" (100mm)Ø Y Dual drop kit complete with (2) drops 4' length & tailpipe adapters.
YA555-SRF
5" (125mm)Ø Y Dual drop kit complete with (2) drops 4' length & SRF tailpipe adapters.

Part #
Description
FLT-HTH-25-8
25' Length High Temperature Flat Hose 8" (200mm)Ø.
LEV-P-018-160-4MAG
10' long 6.5" (165mm), 250° hose, hood, & (4) magnets.
LEV-P-018-200-4MAG
10' long 8" (200mm), 250° hose, hood, & (4) magnets.
LEV-P-018-200-4MAG-HT
10' long 8" (200mm), 850° hose, hood & (4) magnets.
P-018-160-2MAG
10' long 6.33" (160mm), 250° hose, hood & (2) magnets.
P-018-200-2MAG
Extension hose for welding,10' long 8" (200mm), 250° hose, hood & (2) magnets.

Part #
Description
OC-SQ-CRP-400-STACK
Galvanized square no-loss stack for CPR-400 Exhaust fans at OC transpo
P-766-HD-GALV
Heavy duty galvanized fan mounting bracket with hardware to connect fan.
P-766-HD-GALV-TELE
Heavy-duty galvanized telescopic fan mounting bracket w/ hardware to connect fan and height-adjustable.

Part #
Description
EXTERIOR FAN COVER
Exterior fan cover for P-147, P-148, P-149, P-151, P-152, & P-153 when mounted with motor facing upward.

Part #
Description
2TL0-9005
3" (75mm) Oval Tailpipe Connector with toggle clamp & CO2 port.
3TL0-9007
6" (150mm) rubber diesel stack connector with 6" (150mm) duct connection with toggle clamp.

Part #
Description
R-060
5" (125mm)Ø inlet - galvanized, 8 bolts M8 x 16mm.
R-061
6" (150mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm. Packed in plastic.
R-062
8" (200mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-063
4" (100mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.
R-064
3" (75mm)Ø inlet - powder coated black, 8 bolts M8 x 16mm.

Part #
Description
2HD7-7527
Adapter, "Y" painted, 3" x 3" x 3".
2KT7-7701
Diesel Stack Cane with 6" (150mm) inlet connection.
LPF-CASTER-KIT
Caster kit for LPF Fan - Comes with (4) swivel caster with brakes.
