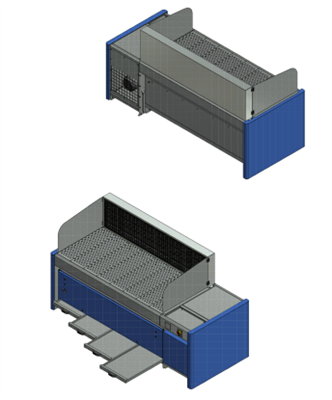

Polijet - Downdraft Table with cartridge filters

The Polijet DF downdraft tables capture and filter welding fumes, grinding dust, and metal smoke directly at the source. At 60 Hz, the series delivers up to 4,116 m³/h (~2,420 CFM) of airflow with integrated pulse-jet, self-cleaning cartridge filters for steady performance in continuous-duty fabrication environments. Contaminants are contained immediately at the work surface to protect operators and keep nearby areas clean
FUNCTION
The Polijet DF draws polluted air downward through the perforated work surface, suppressing sparks and collecting debris in dedicated drawers. Fumes and dust are directed into cartridge filters for efficient capture, with clean air exhausted from the top outlet back to the workspace or into ductwork.

The integrated filter cleaning system uses compressed air pulses controlled by an economizer to maintain airflow and extend filter life. Dust is collected in removable drawers ranging up to 17.2 US gal, making disposal clean and safe.

The Polijet DF is available in three widths — 59 in (1500 mm), 79 in (2000 mm), and 98 in (2500 mm) — with airflow capacities of ~1,730 CFM, ~2,080 CFM, and ~2,420 CFM respectively.

Main options include:
  • Scratch-proof felt work surfaces
  • Side walls and rear walls
  • Silencer and diffuser for noise control
  • Automatic fire suppression system
  • Aluminum-coated filtering cartridges
  • Lighting kit
CONSTRUCTION
  • Structure: Heavy-duty steel cabinet built for negative pressure operation, with IP54 electrical protection
  • Filtration: Cartridge filters (surface area up to 132 m²) in Teflon-coated polyester or cellulose, with metal mesh pre-filters for spark interception
  • Cleaning system: Pulse-jet compressed air with integrated tank, solenoid valves, and economizer controls; requires 4–7 bar (~58–101 psi) clean dry air
  • Spark safety: Spark-suppression mesh and safety grid on fan inlet
  • Dust drawers: 10.3 US gal (1500), 13.7 US gal (2000), 17.2 US gal (2500)
  • Motors (60 Hz): 3-phase, 440/460/480 V; 3 kW (~4 HP), 4 kW (~5.5 HP), 5.5 kW (~7.5 HP) depending on size
  • Weights: ~880 lb (1500), ~1,078 lb (2000), ~1,276 lb (2500)
  • Dimensions: Working widths of 59 in (1500 mm), 79 in (2000 mm), and 98 in (2500 mm); install with space for filter and drawer service
KEY CRITERA
  • Performance: Reliable 60 Hz airflow up to ~2,420 CFM, suitable for single or multi-station setups
  • Filter life: Pulse-cleaning economizer reduces maintenance and extends service intervals
  • Safety: Integrated spark protection and optional fire suppression system
  • Noise control: Optional silencers and diffusers reduce discharge noise
  • Flexibility: Configurable with walls, lighting, and filter media options
  • Durability: Heavy-gauge construction with IP54-rated electrics for industrial duty
SUITABLE FOR
Top 5 contaminants/processes/applications:

    • Welding fumes
    • Grinding dust
    • Metal smoke
    • Thermal cutting fumes
    • Sparks and hot particles
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
polijet DF2500
Polijet DF 2500 downdraft table with:
  • (6) cartridge filters
  • Pneumatic cleaning system with automatic control - 3400 cfm
Motor: 4 kW, 7.5 hp, 208-230/460V 3ph 60Hz, 3490 rpm.
PolijetDF1500
Polijet DF 1500 downdraft table with:
  • (3) cartridge filters - 2250 cfm
  • Motor: 2.2 kW, 5 hp, 208-230/460V, 3ph, 60Hz, 3510 rpm
  • Pneumatic cleaning system with automatic control
PolijetDF2000
Polijet DF 2000 downdraft table with:
  • (5) cartridge filters - 2850 cfm
  • Motor: 3 kW, 7.5 hp, 208-230/460V, 3ph 60Hz, 3490 rpm
  • Pneumatic cleaning system with automatic control
