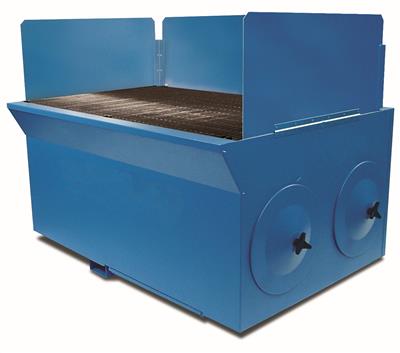

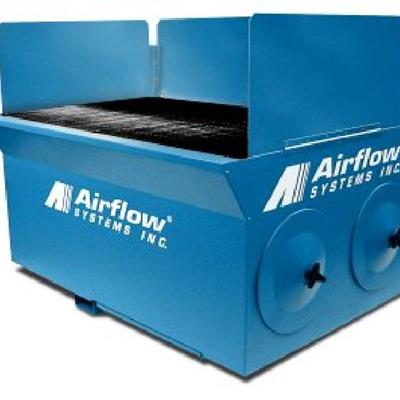

DT3000V2 - 3.5'D x 5.5'W OR 3.5'D x 8'W

DT3000V2 - A self-contained Downdraft table that comes with an integrated 3HP or 5HP energy-saving blower, high-efficiency cartridge filters, and a self-cleaning system. Max flow rate of between 3000 and 4500 CFM.
FUNCTION
Draws contaminants away from workers’ breathing zone without hindering movement.

It uses (6) CLEAN-2 ULTRA high-efficiency cartridge filters (150 SQ. FT. each / 900 SQ. FT. total)

The VIBRA-PULSE filter cleaning system allows the filters to be cleaned on the spot.

Available with:
  • Filter Options
  • Localized Enclosures and Shields
  • Silencer Option
  • VFD Options
  • Fan and Motor Upgrades or Options
CONSTRUCTION
  • 10/12/14 gauge welded steel cabinet with a powder-coat finish.
  • The table includes two access covers for filter removal.
  • Removable panel for access to Class II, backward incline, non-sparking blower, and motor wired to an external junction box. (Motor starter not included)
  • Available in 2 standard sizes: 42''D x 66’’W or 42'' x 96
KEY CRITERA
  • Integral Collection Area and Work Surface: Draws contaminants away from workers' breathing zone without hindering movement; large work area meets a range of applications.
  • Direct-Drive FRP Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
  • Non-Electrostatic Operation: High reliability, low maintenance.
  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
  • Compressed Filter Mounting: Eliminates contaminant bypass of filters.
SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Welding Fumes
  • Composite Dust
  • Dusts and Smoke from MRO operations
  • Grinding Particles
  • Paint Fumes
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
BASE MODELS, OPTIONS & ACCESSORIES

Part #
Description
DT3000-v2.0
3000 cfm heavy duty downdraft table, 42" deep x 66" wide work surface at 3"3 height, 200 fpm downdraft velocity, with baffled inlet spark trap. Contains:
  • (6) CLEAN-2 ® cartridge filters (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • A 3 HP TEFC motor 230-460/3/60 Hz
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
DT3000V2-48x96
3750 cfm heavy duty downdraft table, 48" deep x 96" wide work surface at 33" height, 150-200 fpm downdraft velocity, with baffled inlet spark trap. Contains:
  • (6) CLEAN-2 ® cartridge filters (150 sq.ft. of media)
  • Manual VIBRA-PULSE ® filter cleaning system
  • A 5 HP TEFC motor 230-460/575/3/60 Hz
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Part #
Description
DT3000V2-EXAD
External AD option includes:
  • (4) refillable, v-bank adsorber modules
  • 100 lbs. capacity in remote cabinet
  • Order charcoal separately (see specification sheet for size)
DT3000V2-EXHE
External HEPA option: includes (2) 99.97% HEPA filters in separate remote cabinet (see specification sheet for size).

Part #
Description
DT3000-DED-Grate
Cost deduction for removing grates from DT3000v2.
DT3000V2-ALUM
Aluminum bar grate in place of painted steel bar grate.
DT3000V2-AP3
Offline AUTO-CLEAN VIBRA-PULSE cleaning system, 3 phase.
  • Automatically cleans filters when unit is turned off
  • Call factory before ordering
DT3000V2-COATED
Vinyl coated steel bar grate in place of painted steel bar grate.
DT3000V2-FIBER
Fiberglass bar grate in place of painted steel bar grate.
DT3000V2-REG
Regulator, 1/2 NPT full flow, adjustable, mounted & plumbed.
DT3000V2-REGAIN
Regain air option to redirect 500 CFM back in to the work area to increase capture.
  • To be used with the BF3 option
FREQUENTLY BOUGHT TOGETHER

Part #
Description
DT3000V2-BD
Backdraft option for the DT3000V2 - 8' x 4' downdraft table. This option added makes the table have both back & down draft capabilities.
  • Material & gauge TBD
DT3000V2-BF2
Additional single center divider, 24" high for use with BF1.
  • Separates table in half for 2 operators
DT3000V2-BF3
Enclosure 36" (915mm) tall, with sides, back, & top.
DT3000V2-BF3/LIGHT
BF3 enclosure with 80 watt, Dust-Tite 115 volt work light.
DT3000V2-BF3-ACRYLIC
Enclosure 36" tall, with side, back & top - Clear Acrylic.

Part #
Description
DT3000V2-S
External Silencer with acoustic lining with outlet grill - up, straight, or down position.
DT3000V2-S-AFH
External Silencer Option for use in combination with A-frame HEPA option with acoustic lining with outlet grill.
DT3000V2-S-ST
Exhaust silencer with stack adapter. Upward discharge silencer with round 16" (400mm)Ø collar to accommodate vertical exhaust ducting (duct not included).

Part #
Description
DT3000V2-3HP-1 PHASE
3 Hp 115/1/60 Hz (14.5 amps) 74 dBA (worker zone 78 dBA @ 5' (outlet area) in place of std. 3Hp motor
DT3000V2-5HP
5 Hp TEFC motor, 230/460/575/3/60Hz (12/6 amps), high pressure blower; 3750 cfm, 195 fpm downdraft velocity.

Part #
Description
DT3000V2-EXT-FRONT
Table extension, front, full width with solid surface - 9" (230mm) deep.
DT3000V2-EXT-LEFT
Table extension, left side, full width with solid surface - 9" (230mm) deep.
DT3000V2-EXT-RIGHT
Table extension, right side, full width with solid surface - 9" (230mm) deep.

Part #
Description
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020-OEM
Replacement Filter.
7FR0-2029
Cartridge filter, Spunbond, Spark-resistant. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-200
200 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
