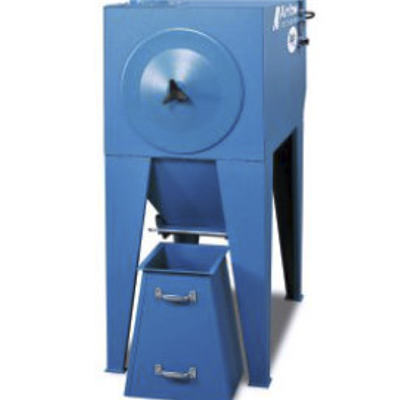

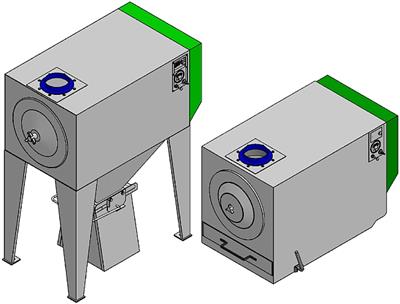

DCH2 - Pre-Engineered dust collector - 1200 CFM

DCH2 - A Single/Dual Work-Station Filter Unit that includes a cartridge collector with (2) Clean 2® cartridge filters (150ft² of media each) and a manual VIBRA-PULSE® filter cleaning system. With a max airflow rate of 600 CFM to 1200 CFM.
FUNCTION
Portable work-station filtration unit that collects particles/gases at the source to protect the user.

DCH2 Features:
  • Direct-Drive Blowers
  • Non-electrostatic operation
  • Vibra-Pulse® Filter Cleaning System
  • Includes either a 5-gallon external dust drawer or a 10-gallon pail and hopper.

Available with:
  • Filter Options
  • Fan and Motor Upgrades or Options
  • Silencer Option
  • Preventative Maintenance Pressure Gauges
  • VFD Option
  • Fan, Light, and Other Electrical Accessories

CONSTRUCTION
  • 12/14/16 gauge welded steel cabinet with a powder-coat finish
  • Includes a removable end cap for easy access to filters
  • Features a removable back panel for access to the direct-drive motor/blower compartment.
  • The unit comes with the motor wired to an external junction box (Motor starter not included) (for 3-Phase units only)

KEY CRITERA
  • Self Contained Unit means the system is immediately functional, and doesn't require much setup time
  • Direct Drive: Higher static pressure, longer filter life, and greater reliability, and low maintenance without the use of belts and pulleys
  • Vibra-pulse filter cleaning 75% more effective than reverse pulse systems
  • Low Profile Cabinet: Easy access speeds up filter changeout and maintenance
  • Ultra-Seal filter mounting eliminates contaminant bypass of filters

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Gases
  • VOCs
  • Welding Fumes
  • Silica Dust
  • Metal Contaminants
Don't see your contaminants? Give us a call at 1-888-862-5356 or email us at sales@lev-co.com!

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BASE MODELS, OPTIONS & ACCESSORIES
Part #
Description
DCH-2
Cartridge Collector with:
  • (2) CLEAN-2 ® cartridge filters with 150 sq. ft. of media each
  • Manual Vibra-Pulse®
  • 1.5HP 115/230/1/60, 17/8.5 amps with switch cord on 115 volt only & spark resistant blower
  • 8" (200mm) collar on top & removable external dust tray
DCH-2-H10
Cartridge collector with:
  • 10 gallon Hopper (stand & dust can)
  • (2) CLEAN-2 ® cartridge filters with 150 sq. ft. of media each - manual Vibra-Pulse®
  • 1.5HP 115/230/1/60v, 17/8.5 amps with switch cord (115v only) & spark resistant blower
  • 8” (200mm) collar on top & external dust tray
DCH-2-55Gallon
Cartridge Collector with:
  • (2) CLEAN-2 ® cartridge filters with 150 sq. ft. of media each
  • Manual Vibra-Pulse®
  • 1.5HP 115/230/1/60, 17/8.5 amps, with switch cord on 115 volt only, & spark resistant blower
  • 8" (200mm) collar on top & removable external dust tray WITH 55 Gallon Hopper
Part #
Description
DCH-2-EXAD
External Adsorber Module Option for Standard DCH-2 Unit.
DCH-2-EXDOP
External 95% DOP Filter Option for Standard DCH-2 Unit. True "HEPA"
DCH-2-EXHE
External 99.97% HEPA Filter Option for Standard DCH-2 Unit.
DCH-2-EXHE - SS
External 99.97% HEPA Filter Option for Standard DCH-2 Unit.
DCH-2-EXT HE/AD
Kit using EXTERNAL HEPA and EXTERNAL AD options. Order Charcoal Separatelly.
DCH-2-FD
Fiber dust Filters Option for Standard DCH-2 Unit.
DCH-2-UCP
ULTRACLEAN-PLUS Cartridge Filters Option for Standard DCH-2 Unit.
DCH-2-AD
Internal AD Option for Standard DCH-2 Unit.
Part #
Description
2PG5-PCH2
0-5" Minihelic dial pressure gauge, flush mounted.
  • Not recommended with EXHE, EXAD, OR EXDOP OPTIONS
DCH-2-PG-10
0-10" MagnaHelic pressure gauge, approximately 5" (125mm)Ø size.
  • Remote mounted
DCH-2-PG-10-RENTAL
Rental 0-10" Magnahelic pressure gauge, approximately 5" (125mm)Ø size.
  • Remote mounted
DCH-2-PG-6
0-6" MagnaHelic pressure gauge, approximately 5" (125mm)Ø size.
  • Surface mounted
DCH-2-PG-6-HEPA
0-6" MagnaHelic pressure gauge for use with external Hepa, approximately 5" (125mm)Ø size.
  • Surface mounted
Part #
Description
DCH-2-CASTERS W/H10
Adds (2) 2.5" (65mm) Swivel Casters & (2) 2.5" (65mm) Fixed Casters Option for Standard DCH-2-H10 Unit.
DCH-NUTSERT
Replace inlet collar with 1/4" nutserts that matches the bolt pattern of the easy arm on the DCH units.
FREQUENTLY BOUGHT TOGETHER
Part #
Description
DCH-2-HYD-045
Hydro-filter designed to help eliminate sparks.
  • Complete with 45 gallon drum, easy to remove lid, water level gauge, & all required ductwork
OM-019/160
Standing Flange for mounting Flexi-I Arms on DCH/PCH units: 6" (150mm)Ø.
OM-019/200
Standing Flange for mounting Flexi II arms on DCH/PCH units: 8" (200mm)Ø.
DCH-2-10GALLON
10 Gallon drum for DCH2 Unit
DCH-2-CASTERS
8" (200mm) Fixed-front, 5" (125mm) Swivel-rear Casters Option for Standard DCH-2 Unit ONLY & chrome handle...
DCH-2-EXP VENT
Explosion vent
  • Install on the right hand side when looking at the filter access door
Part #
Description
DCH-2-5HP
5 Hp TEFC motor, 208-230-460/3/60Hz, High Flow Option for Standard DCH-2 Unit.
DCH-2-5HP-575
5 Hp TEFC motor, 575/3/60Hz, High Flow Option for Standard DCH-2 Unit.
DCH-2-3 PHASE
1.5 Hp, TEFC motor 208-230-460/575/3/60 Hz, Standard Blower Option for Standard DCH-2 Unit.
DCH-2-3HP-1PHASE
3 Hp TEFC motor,230/1/60 Hz, High Flow Option for Standard DCH-2 Unit
DCH-2-1PHASE-D
1.5 Hp, 1 phase, Class 1, Div. 2, Group D motor/blower for the DCH-2.
DCH-2-3HP-3PH
3 Hp TEFC motor, 208-230-460-575/3/60 Hz, High Flow Option for Standard DCH-2 Unit.
Part #
Description
DCH-2-S-EXT
External Silencer Option for Standard DCH-2 Unit.
Part #
Description
2KT5-2740
Hopper Retrofit (for an existing DCH-2).
Part #
Description
7FP1-4505-OEM
MERV 14 Filter - synthetic & washable.
  • Pleated for F-120, F122, F240, F360, F480, 200, 202, 203, MP30, PANEL FILTER POWERBOOTH, PANEL FILTER BOOTH, PAC91, EASY BENCH, & MP60
7FJ9-9003
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - METAL FRAME.
7FJ9-9003-W
99.97% @ 0.3 microns HEPA Filter for PCH/DCH/DTH/ALH units - WOOD FRAME.
7FP1-4505
High Efficiency DOP 95 HEPA Filter for Pac-91, MP-30/60/120, F-120/122/240/360/480/, 202, 203, Mistpak Pro 2/3/4, Panel Filter Booth, Dustron Panel Booth, Easy Bench, & Air Pod.
7FR0-2020
Flame Retardant Cartridge Filter made of 80/20% Cell/Poly Blend - Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units, complete with Vibra Pulse Tube
7FR0-2020 - HO
"HO" treated poly filter for PCH/DTH/DCH units (75 sq. ft. of media).
7FR0-2020 - PTFE
Cartridge filter PTFE Polyester media for PCH/DCH/DTH units.
7FR0-2020-BB
24" (610mm) FR Nano-Fiber Blend Cartridge for DCH-2, PCH-2 DT-1700 & Wall Flex Duo's. Complete with (2) Vibra-Pulse tubes
7FR0-2020-OEM
Replacement Filter.
7FR0-2025
Washable Spunbond filter cartridge for PCH/DCH/DTH, DT-3000V2, Mobi-Pulse, Mobi Flex TC-4, HC-4, DC-4/6/8/12/18 and Wall Flex filter units.
  • Complete with Vibra Pulse Tubes
7FR0-2027
Teflon Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • VIBRA-PULSE tubes included
7FR0-5020
OEM Cartridge Filter ALH-1/2/6 filter used in explosive & flammable applications such as aluminum dust applications.
7FR0-5020-AL-BB
Replacement Filter for PCH2/DCH2 double coated fire retardent and metalized for added protection against fire. Please note when using this filter the exhaust cowling should be rotated 180 degrees vertically.
  • Dust Tray should always be filled with 1-3" of water for additional protection against fire.
CHARCOAL-15
15 lbs. Bag of non-recycled coconut shell-based activated carbon.
CHARCOAL-20
20 lbs. of non-recycled coconut shell-based activated charcoal.
CHARCOAL-CP20
20 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CHARCOAL-CP40
40 lbs. of CP Blend of chemisorbant and activated carbon blend.

Target Contaminants:
  • Hydrocarbons
  • VOC's
  • Oxides of sulfur
  • Formaldehyde
  • Nitric Oxide
  • Hydrogen Sulfide
  • Lower molecular weight
  • Aldehydes & organic acids
CS-350-999
CLEAR SKY SERIES Nano Fiber Filters. Flame Retardant with nano fiber technology. Replacement Filter for DCH/PCH/DTH, TC-4, HC-4, DC-4/6/8/12/18 & DT-3000V2 filter units.
  • Complete with Vibra Pulse Tube
PRE-COAT-5
5lb bag of pre-coat.
