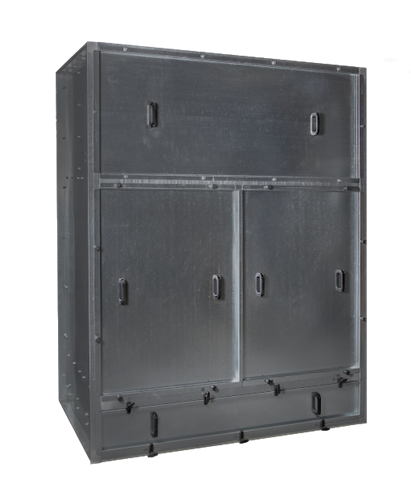

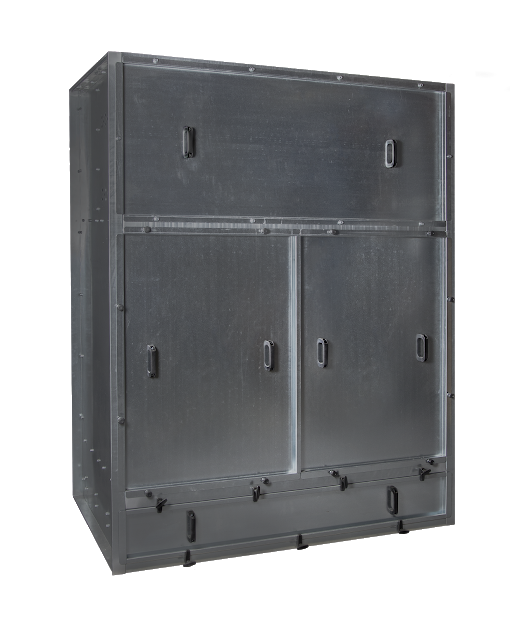

VOC2.0-11500
Overview
- (8) Pre-filters
- (8) Refillable media holders
- 838 lbs (380 kgs) Activated carbon filter for painting.
- 10.1hp (7.5KW) TEFC premium & VFD duty motor, 3490rpm
- 208-230-460V/3/60. or 575V/3/60
- Fan 11475 cfm (19500 m³/h) max flow rate.
- 71 dBA
Specificiations
Shipping Specificiations
| Shipping Weight | 0.0 lbs. |
| Shipping Length | 0 in. |
| Shipping Width | 0 in. |
| Shipping Height | 0 in. |
The VOC2.0 industrial air cleaner units are designed to adsorb and remove VOCs and odours from industrial applications. It is typically used to treat gases released from painting operations and other odour and “Gas-Phase” contaminants.
The VOC2.0 air purifier allows for long DWELL times as required in many applications. Also can be equipped with various adsorption media such as Activated Carbon, Potassium Permanganate, Zeolite, Porocel, Activated Bauxite, activated alumina, and others.
This extended dwell time coupled with a wide range of adsorbents helps you design an air purifier VOC solution that is precise and complies with most air quality regulations.
Main Options Include:
- Inlet Plenums
- Casters
- Hose with temp range up to 300°F (150°C)
NB: Lev-co strongly recommends using preventative maintenance and air quality assurance accessories such as pressure gauges, air quality monitors, run-timers/counters, etc. Please review these options with your Lev-co SME for more information.
CONSTRUCTION
- Galvanized Steel Filter Housing: Can be epoxy painted upon request.
- Pre-Filtering Section: The Pre-filtering section traps solid contaminants such as pigments, atmosphere dust, etc. and protects the Adsorption Media from becoming prematurely saturated. The pre-filters are easily exchanged through front access panels.

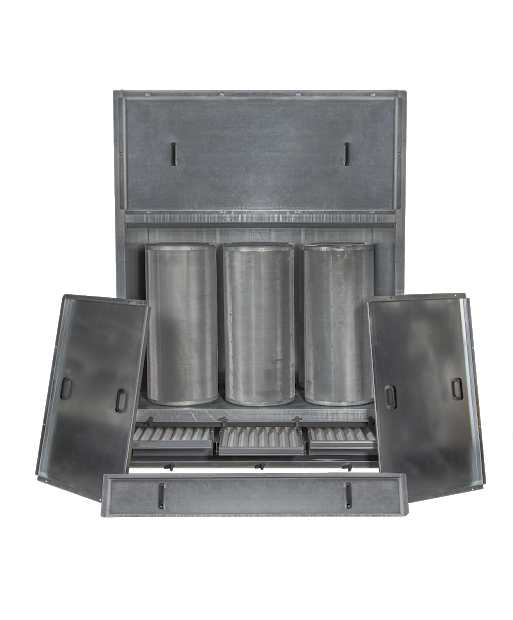

- Main Adsorption Filter Section: The Main filter section houses the Gas-Phase Adsorption media. These gaseous emissions are adsorbed by the media, which is stored in re-fillable filter modules.
- Fan Section: The fan section comprises a double inlet belt-driven fan that provides the required flow and pressure needed to capture, convey, and draw the gases through the DEEP BED filter media.
KEY CRITERA
- Large Adsorption Capacity --> Longer dwell times
- Wide Range of Units --> Ability to select the precise unit for the application
- Pre-Filters with Large Surface Area --> Keeps the adsorption media clean, more efficient and lasting longer
- High Static Pressures --> Ability to overcome friction losses in LEV ducted systems
- 3 3/32" (80mm) Deep Bed of Carbon --> Deeper than typical "V" banks
- Refillable Modules --> low cost / non-proprietary replacement media
- Compact Design and High Flowrate Design--> Saves on floor space
- 0.18 S Minimum Contact Time --> high degree of adsorption efficiency and VOC removal
SUITABLE FOR
- Organic Based Vapours (VOC's)
- Body odour (Fitness clubs, Change Rooms, Bathrooms)
- Paint Fumes (Spray Balms)
- Art Supplies
- Cannabis Odour
- Ducted Air Cleaners Learn More
