RF-OIL-7

$13,028.60 CAD

Overview

Out of Stock
Mobi-Oil, 1.5HP 120V/1/60 fan complete with:
  • 7' Extraction arm, switch, overload, plug & cord
AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Specificiations


Shipping Specificiations

Shipping Weight 150.0 lbs.
Shipping Length 32 in.
Shipping Width 23 in.
Shipping Height 60 in.

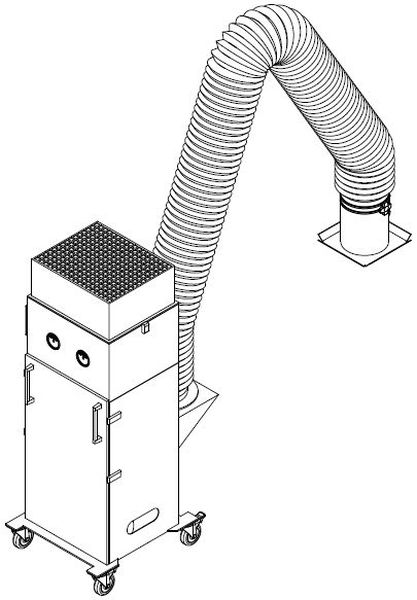

Model 11-011: Mobi-Oil Portable Filter - Self Draining Filters (600 CFM)
The Mobi-Oil portable filter unit is designed for mobile source-capture of coolant mist and light oil mist from lathes, milling machines, drilling machines, and similar equipment. Its 5-step filtration system delivers 99.95% efficiency, with a HEPA stage rated at 99.99% on particles larger than 0.3 microns.
FUNCTION
The Mobi-Oil is a mobile extractor-filter developed for the removal of coolant mist, emulsion mist, and light oil mist generated during machining. It is intended for point-of-source use, allowing the operator to place the hood directly near the mist generation area so airborne contaminants are captured before they spread into the surrounding work zone. It is particularly suited for applications where fixed ducting is not ideal and where several machines may need flexible, shared extraction coverage.

In operation, the unit is rolled to the machine, connected to power, and used with a Flexi extraction arm so the hood can be positioned exactly where mist is released. Cleaned air is discharged upward, while separated liquid is directed into onboard collection containers. When one container becomes full, the operator can switch the quick-connect hose to the second container to keep production moving with minimal interruption.

The unit is available as a 1.5 HP, 115V / 60 Hz portable mist collection system and can be paired with either a 2m or 3m diameter 160mm Flexi extraction arm depending on reach requirements and machine layout. The arm is designed to give the operator flexible hood positioning at the source so mist can be captured efficiently across a range of machining setups.

Main options and replacement items include:
  • 2m Flexi Oil Mist Extraction Arm, dia. 160mm
  • 3m Flexi Oil Mist Extraction Arm, dia. 160mm
  • Replacement HEPA H13 Filter 9m² -
  • Replacement Cassette Filter 4.5m² + 4.5m²

CONSTRUCTION
  • Housing: Powder-coated steel sheet construction.
  • Mobility: Mounted on 4 pivoting wheels with brakes / heavy-duty castors with brakes.
  • Filtration Stages: 5-stage filtration system consisting of inlet splash plate, expansion chamber, labyrinth filter, long-life nailed glass-fiber cassette filter with aluminum separators, and final HEPA H13 filter. Stages 1-3 are cleanable.
  • Primary Filter Media: Glass-fiber cassette filter with aluminum separators.
  • Final Filter: HEPA H13 final filter with 99.99% separation efficiency for particles larger than 0.3 microns.
  • Filter Surface Area: Fiber filter 4.5m² + 4.5m²; HEPA H13 filter 9m².
  • Internal Components: Fan assembly, 2 pressure gauges, switch / circuit breaker with overload protection, door-mounted filter access, and integrated liquid separation chamber.
  • Liquid Collection: 2 liquid containers with 1 quick-connection hose for separated liquid recovery.
  • Dimensions: 610mm L x 550mm W x 1480mm H.
  • Inlet Connection: Accepts dia. 160mm or 200mm inlet flange, or dia. 160mm extraction arm connection.
  • Compatible Extraction Arms: 2m or 3m Flexi extraction arm, dia. 160mm, direct mount to unit inlet.
  • Extraction Arm Construction: Flame-proof flexible hose with covered steel spiral, internal parallelogram support system, 360 degree swivel, and steel hood with built-in damper adjustable 90 degrees in all directions.
  • Maximum Air Temperature: 70 degrees Celsius through the extraction arm.

KEY CRITERA
  • High-efficiency mist control: A strong choice when fine mist capture matters, thanks to a 5-step filtration design with 99.95% overall efficiency and a HEPA stage rated at 99.99% for particles above 0.3 microns.
  • Portable machine-to-machine use: Ideal for shops that need one unit to service multiple machines rather than installing permanent extraction at every station.
  • Choose the right power supply: Buyers need to confirm whether 1-phase or 3-phase power is required. The 3-phase version must be electrically installed by a qualified licensed electrician.
  • Select the right arm reach The 2m and 3m arm options should be chosen based on how far the hood must travel and how much movement is needed around the machine.
  • Reduced downtime: The dual liquid container setup allows operators to switch to the second container quickly when one fills, helping maintain production continuity.
  • Maintenance visibility: Pressure gauges, replaceable filters, and accessible service parts make it easier to monitor performance and maintain the unit over time.
  • Application-specific use: Best suited for coolant mist, light oil mist, and emulsion mist applications in dry indoor areas. It is not intended for sparks or fire-producing contaminants.
  • Long-term serviceability: Replacement filters and spare parts are clearly identified, which is important for buyers planning ongoing maintenance and lifecycle support.

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Coolant Mist
  • Light Oil Mist
  • Emulsion Mist
  • Mist from Lathes
  • Mist from Milling Machines
  • Mist from Drilling Machines
  • Mist from Similar Machining Operations
