P2D2-R3-8D

$19,535.95 CAD

Overview

Standard Product
In Stock
Portable Vehicle Exhaust system. Fan ordered separately with motor mounting plate to suit.
  • 25' of 10" (250mm)Ø exhaust hose
  • 10' of 8" (200mm)Ø inlet hose
  • 8" (200mm)Ø Vice-Grip nozzle - 600° silicon rubber for bottom exhaust
  • 8" (200mm) to 10" (250mm) nozzle - 15' of 600° silicon extension hose for top exhaust
  • Storage for both the exhaust and inlet hoses
  • CSA approved
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety

Specificiations


Shipping Specificiations

Shipping Weight 280.0 lbs.
Shipping Length 48 in.
Shipping Width 40 in.
Shipping Height 86 in.

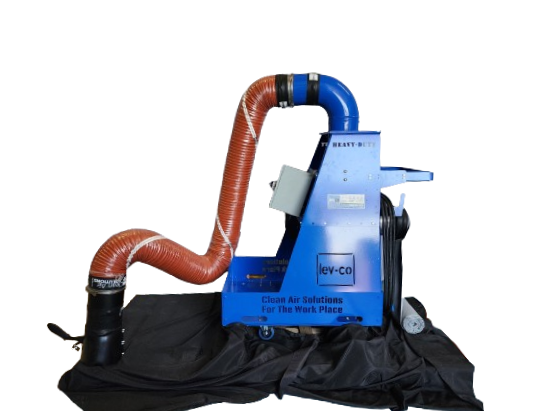

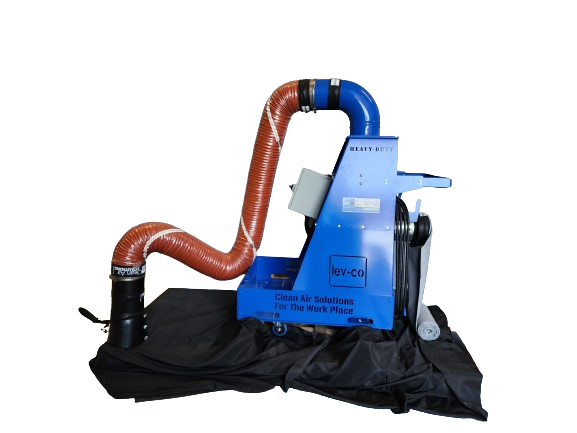

Model 14-055: P2D2-R3 Multi-Purpose Exhauster - 1150 CFM
The P2D2-R3 Multi-Purpose Portable Vehicle Exhaust System is an easy-to-position solution for removing diesel and car exhaust gases. This unit can capture exhaust fumes from a tall vertical stack or a common tailpipe. (Patent Pending)
FUNCTION
The Multi-Purpose P2D2 is an all-in-one unit designed to capture 99%+ of airborne emissions at the source, preventing them from reaching the operator’s breathing zone. It is ideal for capturing smoke, fumes, and gases from vehicles like cars, buses, motorcycles, and diesel trucks.

This system can service entire facilities, multiple bays (extra door ports may be needed), and works for both overhead and under-carriage exhaust pipes. With ball-bearing castors, it is easily portable and can be operated by a single person, allowing for convenient nozzle positioning without a ladder.

The Plug-and-Go unit features a sturdy trolley for storing components, easy-to-store exhaust hose, and locking casters for stability during use. The powerful exhaust fan delivers a typical flow rate of 1150 CFM to effectively remove exhaust gases directly into the atmosphere.

Main options include:
  • Exhaust Hose: Up to 100' length and 2500° F. rating
  • Overhead Stack Adapter
  • Variable Frequency Drive
  • Hose Accessories

CONSTRUCTION
  • Portable and Easy to Position - (6) Heavy-duty casters (2 straight, 4 swivel)
  • “All-In-One” Design – “on-cart” storage for all hoses, hoods, etc.
  • All Steel Heavy Duty Construction - 3/14/16 ga.
  • Spark Proof Design and Construction
  • Environmentally Friendly VFD Control – Variable exhaust rate to ensure energy-saving efficiency
  • 6.5''/8''Ø Hoses
  • Engines up to 150 HP @ max RPM & Load select: P2D2-R2-1.5HP
  • Engines up to 200 HP @ max RPM & Load select: P2D2-R2-3HP
  • Engines up to 300 HP @ max RPM & Load select: P2D2-R2-5HP
  • Engines up to 400 HP @ max RPM & Load select: P2D2-R2-7.5HP
  • Engines up to 500 HP @ max RPM & Load select: P2D2-R2-10HP
  • Equipment over 500HP - Call Lev-co for exact product selection

KEY CRITERA
  • All-In-One: The whole assembly has the ability to store everything related to the unit, making teardown and setup times much shorter, as well as taking up less storage space
  • Maneuverable: With the use of ball-bearing castors, moving the unit around can easily be done by one person
  • Point-Source Extraction: With 25 feet of flexible hose, and the maneuverability of the system, fumes can be extracted before escaping the source
  • Energy-Saving: With the use of a VFD, you can program the suitable flowrate for any application, which is energy-saving, and efficient
  • Distance Coverage: With the use of exhaust up to 100' long, point-source extraction can be achieved from almost anywhere within a 100' distance to outdoor access

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Diesel Exhaust Fumes
  • Car Exhaust Fumes
  • Welding Fumes
  • Smoke
  • Chemical Fumes
