Minispray

$6,994.80 CAD

Overview

In Stock
Minispray Dry Painting Booth – No Motor or controls 2119 cfm (3600 m³/h) delivery.

Specificiations


Shipping Specificiations

Shipping Weight 660.0 lbs.
Shipping Length 100 in.
Shipping Width 45 in.
Shipping Height 60 in.

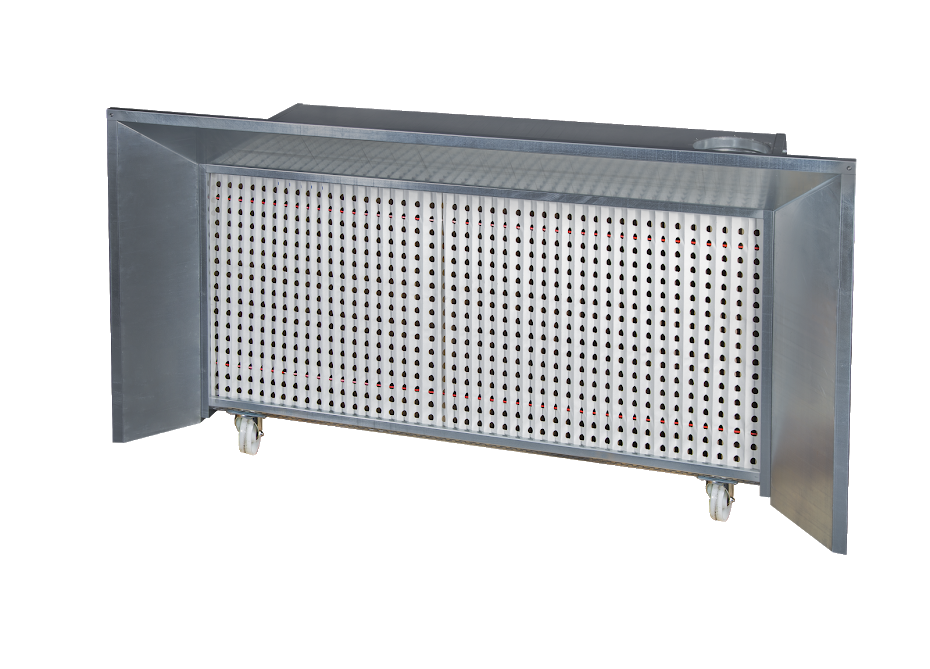

Model 06-008: Minispray - 60''H x 45''W
The Minispray is a modular unit that uses a double filtration system to pull paint particulate away from workers' breathing zones and shop air.
FUNCTION
The Minispray unit functions means of a centrifugal fan mounted at the top of the unit, where negative pressure is created, drawing air through the filters. The flow draws the particles of paint suspended in the air to the filters without any dispersion or overspray to the surrounding environment.

The first stage of filtration blocks the larger particles of paint. The second stage blocks the finer particles with a fiberglass filter. The air which is then purified of solid pigment is expelled by the fan and out through the chimney kit.

The Minispray dry painting booths are designed to ensure versatility, modularity, and efficiency. They consist entirely of zinc-plated panels bolted together. The front of the unit has filter holding grooves set for housing the dual filtering system. On top, is the spark-proof centrifugal fan.

Available Options:
  • Filter Options
  • Variable Frequency Drives

CONSTRUCTION
  • Galvanized steel, bolted panel construction
  • Large sized caster wheels, two of which are pivoting
  • Must be connected to a rigid or flexible ductwork and out through a chimney kit (not included)
  • Specially treated filtering paper and fiberglass filter
  • Dimensions and Weight: 98" x 42" x 42" at 550lbs (casters included)
  • Side panels and dividers are self-supported
  • Front of unit has filter holding grooves set for housing the dual filtering system
  • Spark proof Centrifugal Fan

KEY CRITERA
  • Easy to maintain and change filtering materials
  • Simple to use
  • Small footprint
  • Centrifugal Fan as opposed to the more common and less effective Axial Fan

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Spray Can Painting
  • Water-based paint application (NOT POLYURETHANE PAINTING)
  • Solvent-based paint application
  • DIY applications
  • Small batch applications
