L-849

$8,240.00  $6,180.00 CAD
25% OFF SAVE $2,060.00

Overview

Standard Product
In Stock

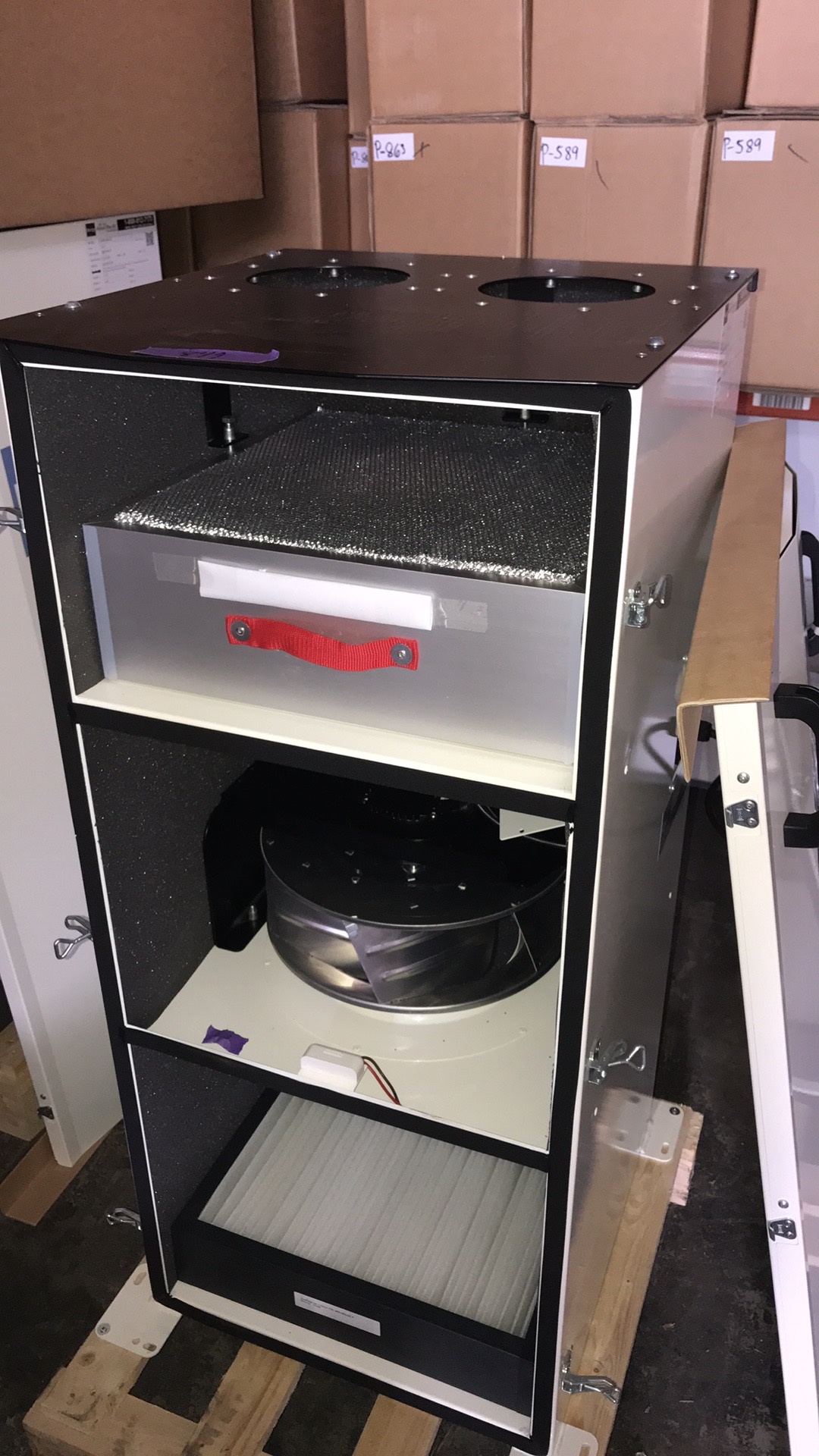

COVID-ICA2/H-ADO2 1000-HEPA (600 CFM) fan & filter unit H14. 2 Outlets, 8" (200mm)Ø 99.995% @ 0.1 Micron. 115/1/50-60 Dba

Specificiations

Horse Power 0.5
Voltage 220
RPM 1970
Phase 1
Full Load Amps 4.5
Hertz 60

Shipping Specificiations

Shipping Weight 145.0 lbs.
Shipping Length 25 in.
Shipping Width 25 in.
Shipping Height 50 in.
Model 20-013: ADO Series - DIRECTIONAL FLOW AIR CLEANER - 400 & 600 CFM
LEV-CO’s Stand-alone ADO Adjustable Direction Outlets with Hepa H14 Filtration for Coffeerooms, Lunchrooms, Meeting rooms. and benches. A simple “Pre-engineered” solution with "Clean-to-less-clean" air distribution, HEPA H14 Filtration (99.995% @ 100 Nanometer), Duct and Diffusion Hood.
FUNCTION
ADO Adjustable Direction Outlets with HEPA H14 Professional Air Purifiers are used indoors to reduce COVID-19 and other Viruses in the air. They come in two sizes. 700m3/hour and 1000m3/hour maximum airflow. It is recommended to filter the total air volume in a room 6 times/hour. The ADO Adjustable Direction Outlet models are for larger rooms.

With ADO (Adjustable Direction Outlet) you can direct the cleaned air in any direction and with up to 4 nozzles. This makes it possible to reduce the overall concentration of Viruses and Bacteria in larger rooms faster. The 99.995% cleaned air is produced in a controlled direction, into the breathing zone. The cleaned air is then mixed with the rest of the air in the room. The viruses and bacteria in the room will be reduced. ADO is for rooms from 40m2 up to 60m2.

Here's how it works:
  • STEP 1: The "Clean-to-less-clean" air movement supplies clean filtered air to the occupants breathing zone through a pre-engineered diffusion hood explicitly designed for the application e.g., meeting rooms, lunchrooms, Locker rooms, classrooms, etc. This precise air movement is essential as the viral particles associated with Covid-19 have shown that they can remain airborne, for up to 16 hours in still air.
  • STEP 2: An ultra-low noise fan draws the room air in at floor level where the air is least clean. The air is drawn in by a variable speed, the centrifugal fan that allows the operator to control the flow based on the number of people in the room.
  • STEP 3: The air passes through a silenced chamber engineered to dampen the associated noise generated by the air movement.
  • STEP 4: A multi-stage filter module filters the contaminated air containing virus particles as small as 0.1 Micron (MicroMeters) to a purity level of 99.995%.
  • STEP 5: An optional UVC germicidal treatment lamp can be purchased as a supplement to help destroy virus particles that may remain attached to the inner surfaces of the unit’s air intake housing.
  • STEP 6: Clean filtered air is returned to the indoor space through a low-noise duct and diffuser hood detailed in Step 1, thus completing the filtration and ventilation circuit. This allows the air in a typical room to be changed over 100 times an hour.

CONSTRUCTION

Each system Fan/Filter module complete with four-stage filtration:
1. Prefilter for larger particles >50 microns. (Washable)

2. High-efficiency F5 class secondary filter 40-60% efficiency on particles larger than 0.4 microns. (Disposable)

3. High-Efficiency HEPA H14 class final filter 99.995% efficient on particles smaller than 0.1 microns. (Delivered with Efficiency and leak test Certificate)

4. Outlet filter of washable Aluminum mesh (Washable)

Additional Information:

  • All ADO air-purifiers come complete with 120V variable-speed EC motors. Units are delivered ready to plug in and use. The fan speed can be adjusted to suit precise ‘Draft-Free’ airspeeds and ‘Ultra Quiet’ noise levels.
  • When selected, duct kits come complete with lightweight sheet metal ducting, duct fitting, chains (to hang the hood and duct), and hooks (for the ceiling).
  • The duct kit, hoods, and/or supply arms are simple to install and typically require no more than 30 minutes to set up.
  • Units are fabricated with heavy-duty, all-steel materials of the highest quality.
  • All units are delivered complete with 4x5" diameter locking casters. Alternatively, 5" legs can be ordered separately.
  • Optional bacteria-killing UVC lamps can be placed before the HEPA H14 filter to kill surface viruses, mold and bacteria.

KEY CRITERA
  • All steel construction
  • Clean to less Clean air pattern
  • Does not blow air from person to person
  • H14 HEPA filter
  • Variable Flow Control
  • Optional air velocity alarm
  • MERV 10 Pre-filter
  • Optional Odor Control Filter with 11 lbs

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • Respirable viruses
  • Cigar smoke
  • Smog
  • Cigarette smoke
  • Body oder

Solutions
Industries
  • Auto body repair Auto body repair
  • Dental Offices Dental Offices
  • Educational Educational
  • Emergency Services Emergency Services
  • Food & Beverage Food & Beverage
  • Vehicle Repair Vehicle Repair
Processes
  • Auto Shop
  • Buffing and Polishing
  • Fire Stations
  • Food Packaging Plant
  • Operating Room
Engineering Control Methods
No control methods exist for this product
