DF-SCF-24-30-115

$9,665.58 CAD

Overview

Standard Product
Out of Stock

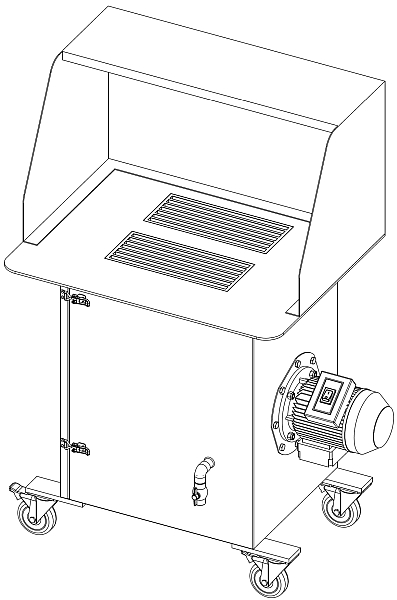

Sledgehammer Downdraft Table, self-cleaning
  • 100% washable replacement filter cartridge with 45% more surface area and 15% higher flow rate.
  • All steel construction (no plastic to deform or melt)
  • Smallest footprint of any unit on the market (22" x 25" = 3.8ft2)
  • Powerful 1.1 KW (1.5HP) motor 115V/1/60 UL / CSA
  • Complete with Motor starter, overload protection, plug and switch - Ready to use
  • Dual Stage spark trap
  • Cleanable filter (with water or compressed air)
  • Complete with integrated filter cleaning system
**AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

Specificiations


Shipping Specificiations

Shipping Weight 260.0 lbs.
Shipping Length 47 in.
Shipping Width 31.5 in.
Shipping Height 53 in.

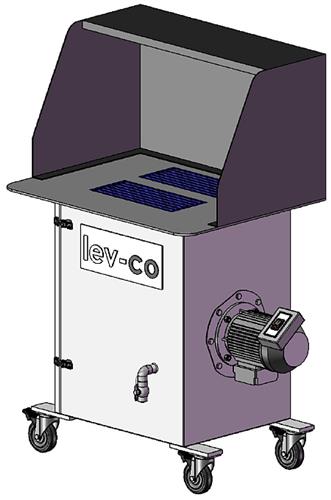

Model 05-015: Sledgehammer - 2'D x 3'W

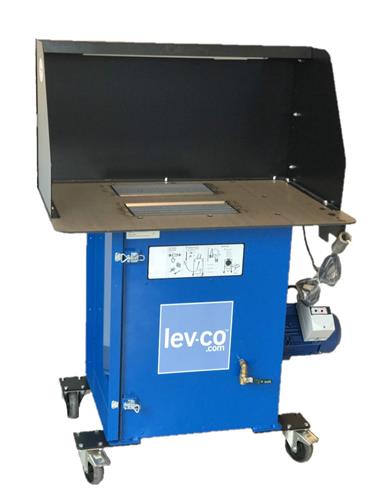

Sledgehammer © - A series of downdraft tables engineered as dual-purpose workstations, integrating both functional workspace and efficient extraction solutions.

These tables efficiently remove contaminants at the source, safeguarding the workers' breathing zone while ensuring unrestricted movement. This unit features a max flow rate of 1200 CFM.
FUNCTION
Heavy-duty Downdraft table that provides the most durable ¼” steel plate work surface (36” x 24”) on the market.
The Sledgehammer © is equipped with Jet-Pulse Cleaning that allows simple cleaning of the filter, which reduces filter costs dramatically*.

Available with:
  • VFD Options
  • Preventative Maintenance Pressure Gauges

CONSTRUCTION
These pre-engineered, ‘’Plug and Play’’ downdraft tables come complete with the following:
  • Fan Capacity: maximum 1200 CFM (2000 m3/h)
  • “Nano Fiber” filter cartridge, 99.9 % efficient @ 0.5 Micron
  • Direct drive fan coupled with Non-Sparking Aluminum Impeller
  • 1.5 HP (1.1 KW) 120V/1/60 TEFC Direct Drive class II motor
  • ’Plug and Play’ Design includes easy maneuverable wheels, motor starter, overload protection, 12’ cord, and plug
  • Flow Controller allows the flow rate to be reduced eliminating the change of porosity
  • Internal dust tray
  • 1/4" steel plate work surface 36” x 24” (900 x 600mm)
  • 5 stage spark resistance package including deflection grates, (2) spark absorption trays (fill with water and/or sand – by others), baffles, expansion chamber, and optional plasma cutting spark arresting surface
  • Welding gun/ground clamp holder/connection
  • Working booth design with back and side walls
  • Jet-Pulse pneumatic filter cleaning system
  • Low height design that can be easily raised to suit almost every working height

KEY CRITERA
  • 115 Volt: Ability to plug into any standard circuit, reducing installation costs
  • Filter Cleaning System: Ability to clean by air to remove the contaminant from the filter without taking the filter out of the unit, lowering operation costs
  • Integrated Spark Trap with Water Tray: Ability to pre-separate the spark before the main filter, which reduces the risk of fire
  • Flame, Melt, and Deform Proof Steel Construction: Avoid high cost of replacement plastic parts
  • Small Foot Print: Ability to maneuver with ease especially in narrow areas, saving space in the production area

SUITABLE FOR
Top 5 contaminants/processes/applications:

  • VOC Fumes
  • Gases
  • Composite Dust
  • Welding Gases
  • Grinding Particles
