Downdraft with Filtration (Integrated into Turntable)

UNDER CONSTRUCTION
05-008

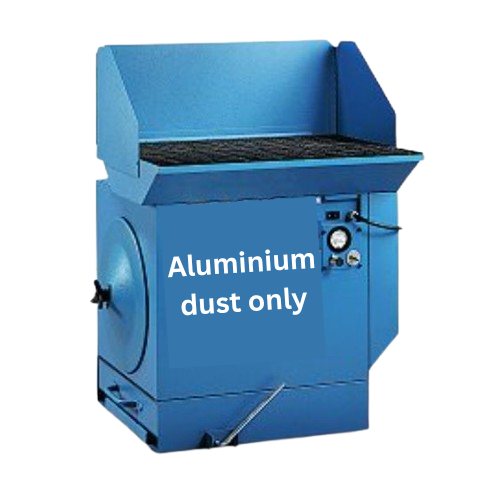

AL6 Aluminum Dust NFPA - 42''D X 66''W (+ 3,000 CFM)
al6-aluminum-dust-downdraft-filter-table - Main Image
Self-contained pre-engineered downdraft table to allow for maximum, precise and energy efficient capture.

3000 CFM heavy duty downdraft table to collect aluminum dust with its 42"D x 66"W work surface at a height of 33". This unit boasts 155 fpm downdraft velocity and includes 18" tall aluminum side and back shields. Unit includes: Filtration efficiency of 99% @ 1 micron, front door for easy access to filters, and a preventative Pressure Gauge to be able to maintain and monitor the filters status, all backed by the ULTRACLEAN-PLUS™ cartridge filters (150 sq. ft. of media each)
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-006

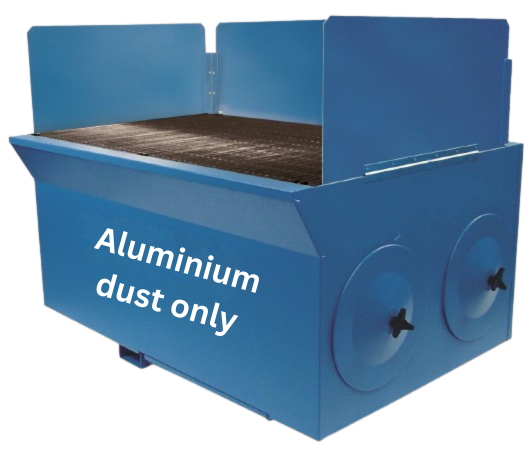

ALH1 Aluminum Dust NFPA - 24''D X 32’’W (800 CFM); 24''D X 48’’W (1,700 CFM)
alh1-aluminum-dust-downdraft-filter-table - Main Image
Integral Collection Area and Work Surface Draws contaminants away from workers' breathing zone without hindering movement, open work area meets range of applications

Downdraft table that Meets NFPA 651 for processing and finishing aluminum when properly used and maintained.
  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
  • Non-electrostatic Operation: High reliability, low maintenance.
  • Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
  • Optional Casters: 5" casters and 8" wheels for portability.
  • Ergonomic Cabinet: Easy access speeds filter change out and maintenance.
  • 800 CFM (150 FPM downdraft velocity)
  • Electrical meets NFPA Division II, group-E for aluminum dust.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-007

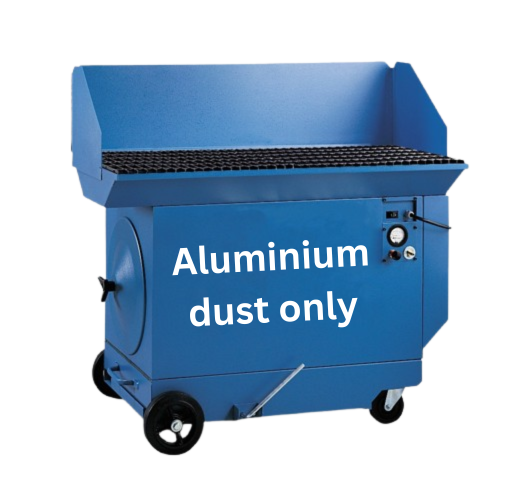

ALH2 (24''D X 48''W @ 1700 CFM)
alh2-aluminum-dust-downdraft-filter-table - Main Image
1400 CFM (175 FPM downdraft velocity) Downdraft table to collect aluminum dust., 24”Dx49”W, aluminum work surface, 14” side shields, removable dust tray. 3HP, 230-460/575-600/3/60HZ. Electrical meets NFPA Division II, group-E for aluminum dust.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-155
DCB Ductless Spray Booth 1400 CFM
dcb-ductless-spray-booth-dust-gases-VOC - Main Image
The 'DSB' Ductless Spray Booth series downdraft tables are designed to be a dual purpose Work station and filtration solution for aerosol fumes and other airborne gases & odors. These tables draw contaminants away from workers’ breathing zone without hindering movement.

The DSB is equipped with a washable main filter which filters out any particulate, a secondary activated carbon filter and an optional third stage filter for a variety of adsorption medias.
Additionally, the DSB provides a durable (¼”) steel plate work surface (36” X 24”)
Also included are 2 – 2L trays located directly under the ventilation intake which allows for the collection of accidental spills.
Applications include spray painting with spray balms or air brushes, gluing, open cans of paint, etc…
All contaminated air is filtered and returned to the facility.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
05-011
DT-23 General Purpose - 24''D x 36''W (flow to suit)
dt-23-downdraft-table - Main Image
Non-Powered Down Draft table complete with integrated collection area and 2' X 3' work surface.

Draws contaminants away from workers’ breathing zone without hindering movement.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
007 - Written Specifications:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-012
DT-35 (60''W x 36''D – flow to suit)
dt-35-downdraft-table - Main Image
Non-Powered Down Draft table complete with integrated collection area and 3' X 5' work surface.

Draws contaminants away from workers’ breathing zone without hindering movement.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-005
DT3000V2 - Heavy dusts & smoke - Self cleaning filter system built in - 42''D X 66’’W or 42'' X 96 (3,000-4500 CFM)
dt3000v2-downdraft-table - Main Image
The DT3000 is a completely self-contained pre-engineered Downdraft table. Comes complete with an integrated 3HP or 5HP energy saving blower, high efficiency cartridge filters and automatic self-cleaning system. Available in 2 standard sizes: 66" X 42" or 96 X 42" work surfaces at heights of 33". This solution is ideal for most welding, Grinding and cutting applications.


The DT3000 draws contaminants away from workers’ breathing zone without hindering movement; and allowing the workers to work/walk around all sides of the table. The DT-3000 uses (6) CLEAN-2 ULTRA high efficiency cartridge filters (150 SQ. FT. of media each / 900 SQ. FT. total) and the VIBRA-PULSE filter cleaning system allows those filters to be cleaned in place when they become saturated. All you have to do is activated the cleaning system and empty the tray.
One of 2 powerful fan/motor combinations generate between 3000 and 4500 CFM.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
003 - Client Installations - Case Studies with Photos:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-004
DTH1700 - Heavy dusts & smoke - Self cleaning filter system built in - 24''D X 48’’W (1,700 CFM)
dth1700-downdraft-table-dust-fumes-gases - Main Image
The DTH-1700 is a Self-Contained pre-engineered Down Draft table that comes complete with an integrated Fan and filtration system in addition to it's 24"D X 48"W work surface and 18" tall removable side & back shields generating 1400 CFM with 208 FPM downdraft velocity.

The DTH-1700 draws contaminants away from workers’ breathing zone without hindering movement; large work area meets range of applications. Its use of (2) CLEAN-2 cartridge filters and the manual VIBRA-PULSE filter cleaning system makes this unit the ideal solution for most welding and light dust/smoke applications.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-003
DTH800 - Heavy dusts & smoke - Self cleaning filter system built in - 24''D X 32’’W (800 CFM)
dth800-downdraft-filter-table-dust-fume-gases - Main Image
Pre-engineered downdraft table complete with 1 Clean 2® 150 ft2 cartridge filter, integrated fan with TEFC direct drive class II motor and external dust tray generating 800 CFM with 150 FPM downdraft velocity.

The DTH-800 draws contaminants away from workers’ breathing zone without hindering movement making these tables an ideal solutions for most welding and light dust/smoke applications.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
004 - Product Videos:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-001
EZ Bench - Light dusts - Washable and/or disposable filters - 36''W X 24''D (800 CFM)
ez-bench-downdraft-filter-table-smoke-dust - Main Image
Easy Bench – A 800 CFM (500 CFM with HEPA or AD Module) downdraft table designed for the operator. Standard desk height with full leg room for maximum comfort and concentration. Simple Source Capture.

Removes dust, fumes, and odors, for a cleaner, healthier work environment, and
improved productivity for close, fine hand work. Easy Filter Access. Standard panels slide in and out from the front, with easy-seal magnetic covers.
Attachments
001 - Equipment Specification and Dimension Drawings:
002 - Brochures:
017 - LEV CAD Blocks (Auto CAD, RVT, SLDPRT):
05-017
Polijet - Downdraft Table with cartridge filters
polijet-downdraft-table-dust-fumes-gases - Main Image
05-015
Sledgehammer Series Downdraft Tables (1200 CFM)
sledgehammer-downdraft-filter-table-dust-gases - Main Image
The 'Sledgehammer' © series downdraft tables are designed to be a dual purpose work station and extraction solution.
These tables draw contaminants away from workers’ breathing zone without hindering movement.

Additionally, they provide a the most durable ¼” steel plate work surface (36” X 24”) on the market. Hence the name “Sledgehammer” ©
The SLEDGEHAMMER is equipped with Jet-Pulse Cleaning that allows simple cleaning of the filter, which reduces filter costs dramatically*.
Applications Include filtering of contaminants from the following applications: welding, grinding, de-burring, plastics, composites, sampling, batching, weighing, soldering, and finishing processes
All contaminated air is filtered and returned to the facility.
Please select filter options according to your application… when proper filters are selected, all ‘’Sledgehammer’’ © series downdraft tables comply to all Local and Federal clean air requirements.
Need a larger work surface? Quite often the area at which the fume or contaminant is generated is much smaller than the work table required… In these cases, either place the “sledgehammer” © series table in the middle of 2 or more work tables or bolt multiple downdraft tables together (Contact your distributor for quantity discounts).
05-002
SS-C-DT Wet Collector with Downdraft table
ss-c-wet-dust-downdraft-filter-table - Main Image
The SS-C series Downdraft Tables are self-contained workstations that come complete with water dust collection systems. Ideal for "cell manufacturing". They feature:
  • Stainless steel construction
  • Easy installation
  • Adjustable work surface heights
  • Regain air
  • Ready to use
The workstation is available with a single work surface or with two work surfaces, one on each side
The SS-C series downdraft table allows for the dust to be immediately wetted, reducing the risk of fire in ductwork . The standard unit includes an aluminum perforated work surface, Adjustable table height and Regain Air Curtain in front to prevent dust from escaping the work zone.
Flow and electrical specification: 2500 CFM, motor 5 HP, 208-230/460/575 V/3/60
05-009
WETREX single & dual Wet Tables - Explosive Dust - Table Qty, sizes & flow to suit
wetrex-wet-dust-downdraft-filter-table - Main Image
The WETREX Downdraft Table is a self-contained workstation with its own water dust collection system, excellent for "cell manufacturing." It features easy installation and comes ready to run. The workstation is available with a single work surface or with two work surfaces, one on each side.
The WETREX gets the dust immediately wetted, reducing the risk of fire in ductwork and meets OSHA and NFPA regulations for dust collectors located inside the building. The standard unit includes a fiberglass grated work surface, and optional Regain Air Curtain in front to prevent dust from escaping the work zone.
Attachments
