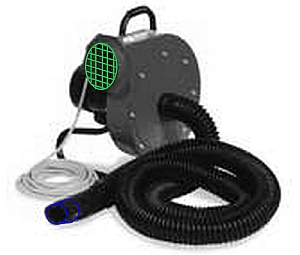

(14-08) Portable VES Fan - 3"/4.5"/6" dia. (500-1500 CFM)
For exhaust removal applications where stationary systems may not reach, the Airflow Systems V.E.S. Portable Removal System provides convenient exhaust removal for relief from the annoyance of vehicle exhaust. If not removed, vehicle exhaust can contribute to worker illness, increase facility maintenance expense, and harm the sensitive electronics of diagnostic and service equipment.
Product Function
Shipping Weight
and Dimensions
Product Function:
Lightweight and easy to handle, the V.E.S. Portable Removal System is a practical solution for providing exhaust removal in areas where conventional systems cannot reach.
Product Overview:
Removes exhaust gases rather than just re-circulating it within the facility.
One-person operation is made easy with standard wheels and support stand.
Powerful 225-1000 CFM collection fan in a portable package.
Operates with standard 115V power for use anywhere within a service bay.
Construction:
Shipping Dimensions and Weight:
Main System Part #
Length x Width x Height
Weight
VES3-P-1/2HP
42"H x 27"W x 37"D
162 lbs
Main System / Part
Part #
Qty
Description
VES3-P-1/2HP
0
1
2
3
4
5
6
7
8
9
10
220 CFM*, 3” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Portable VE System complete with the following components:
1/2hp exhaust Fan
115v Motor complete with Switch, 25’ cord and plug
25' of 3" hose inlet / suction hose
stand/mounting bracket
3” diameter twist lock round Tailpipe adapter
8' of 6" diameter exhaust hose
VES4-P-1/2HP
0
1
2
3
4
5
6
7
8
9
10
340 CFM*, 4.5” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Portable exhaust collection system consisting of
1/2 HP TEFC motor/blower
115V/1/60Hz with stand/mounting bracket
25 ft of 4.5" dia inlet hose
4.5" dia oval tailpipe connector
8' of 6" 275 degree exhaust hose
VES6-P-1.5HP
0
1
2
3
4
5
6
7
8
9
10
500 CFM*, 6” Diameter Portable Vehicle Exhaust systems for exhaust removal applications. Portable VES consisting of
1.5 HP TEFC Motor/blower
115/1/60 hz with stand/mounting bracket
25ft of 6" dia inlet hose
8 feet of 275 degrees 6" exhaust hose
intake hose and tail pipe connector not included
Frequently bought together these options:
Nozzle Accessories
Part #
Qty
Description
2TL0-9012
0
1
2
3
4
5
6
7
8
9
10
5 Tailpipe Connector for Trucks, Aluminum. Connects to 4.5 dia. hose.
