PRO-FLEX – GRINDING DUST – CENTRAL PROSTHETIC SERVICES



Central Prosthetic Services, Scarborough, Ontario is one of the prosthetic limbs manufacturers. They needed a solution for capturing airborne grinding dust and smell at the source that would meet the following criteria:

• Proper suction

Text Box: PRO-FLEX – GRINDING DUST – CENTRAL PROSTHETIC SERVICES

• Proper filtration

• Easy to use

• Good flexibility

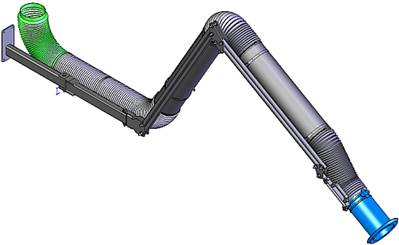

Source Capture: - The grinding dust is captured at source by using Pro-Flex extractor arm.

 Convey/Transport of dust: - Once captured the dust is transported through the extraction arm and rigid duct drop to the wall flex.

 Filtering: - The dust is filtered in the wall flex, the air is exhausted outside through a rigid duct.



One        (1)    WFHC-1  Wall Flex high efficiency filtration system c/w 1.5 HP direct mount P-Max fan

One        (1)    PRO-100-2M Pro-Flex Extractor Arm 100mm

Manufacturing prosthetic limbs





"We needed a solution to remove the dust generated in our shop. LEV-CO delivered and installed a highly efficient exhaust solution that meets our needs entirely. The system is working well and our workers are very content with it."

John MacKillop                              ,

CENTRAL PROSTHETIC SERVICES
